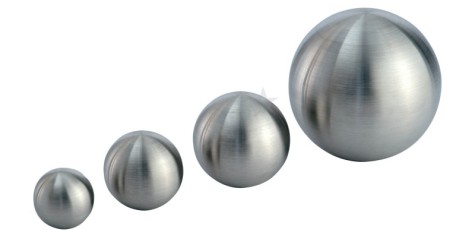

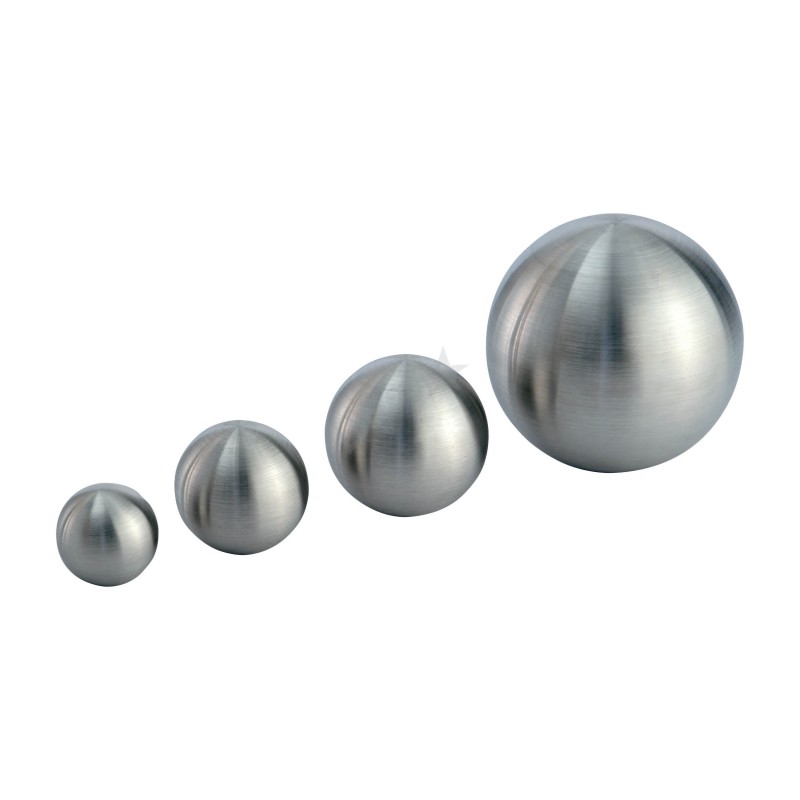

Spheroidal Terminal Ball

Balls:

• 480020 ball, Ø 20 mm, one. Threaded bush M4 hollow V2A, polished

• 480025 ball, Ø 25 mm, one. Threaded bush M6 hollow V2A, polished

• 480030 ball, Ø 30 mm, one. Threaded bush M6 hollow V2A, polished

• 480040 ball, Ø 40 mm, one. Threaded bush M6 hollow V2A, polished

• 480050 ball, Ø 50 mm, one. Threaded bush M6 hollow V2A, polished

• 480060 ball, Ø 60 mm, one. Threaded bush M8 hollow V2A, polished

• 480080 ball, Ø 80 mm, one. Threaded bush M8 hollow V2A, polished

• 480100 ball, Ø 100 mm, one. Threaded bush M10 hollow V2A, polished

• 480120 ball, Ø 120 mm, one. Threaded bush M10 hollow V2A, polished

• 480150 ball, Ø 150 mm, one. Threaded bush M10 hollow V2A, polished

• 480200 ball, Ø 200 mm, one. Threaded bush M10 hollow V2A, polished

• CN7100300 ball, Ø 30 mm, threaded bush M6 hollow V4A, polished

• CN7100400 ball, Ø 40 mm, threaded bush M6 hollow V4A, polished

• CN7100500 Ball, Ø 50 mm, threaded bush M6 hollow V4A, polished

• CN7100600 ball, Ø 60 mm, threaded bush M8 hollow V4A, polished

• CN7100800 ball, Ø 80 mm, threaded bush M8 hollow V4A, polished

• CN7101000 ball, Ø 100 mm, threaded bush M10 hollow V4A, polished

• CN7101200 ball, Ø 120 mm, threaded bush M10 hollow V4A, polished

• CN7101500 ball, Ø 150 mm, threaded bush M10 hollow V4A, polished

• CN7200300 ball, Ø 30 mm, threaded bushing M6 hollow V2A, highly polished

• CN7200400 ball, Ø 40 mm, threaded bush M6 hollow V2A, highly polished

• CN7200500 ball, Ø 50 mm, threaded bushing M6 hollow V2A, highly polished

• CN7200600 ball, Ø 60 mm, threaded bushing M8 hollow V2A, highly polished

• CN7200800 ball, Ø 80 mm, threaded bush M8 hollow V2A, highly polished

• CN7201000 ball, Ø 100 mm, threaded bush M10 hollow V2A, highly polished

• CN7201200 ball, Ø 120 mm, threaded bush M10 hollow V2A, highly polished

• CN7201500 ball, Ø 150 mm, threaded bush M10 hollow V2A, highly polished

Technical Characteristics:

Product Code	480020	480025	480030	480040
Material	AISI 304	AISI 304	AISI 304	AISI 304
Type	empty	empty	empty	empty
Surface	satin	satin	satin	satin
Dimensions	Ø 20 x 2,0 mm	Ø 25 x 2,0 mm	Ø 30 x 2,0 mm	Ø 40 x 2,0 mm

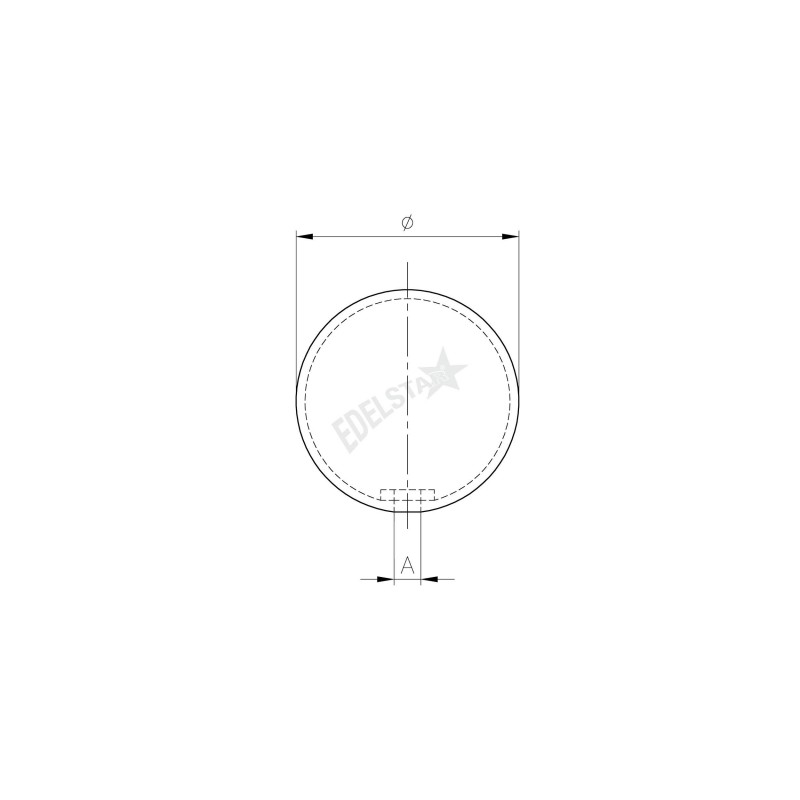

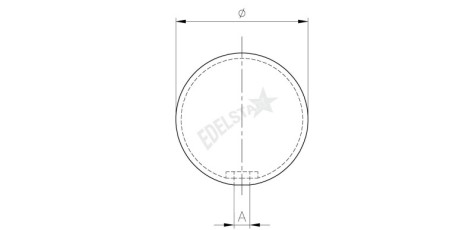

Details	A=M4; Ø=20	A=M6; Ø=25	A=M6; Ø=30	A=M6; Ø=40

















Product Code	480050	480060	480080	480100
Material	AISI 304	AISI 304	AISI 304	AISI 304
Type	empty	empty	empty	empty
Surface	satin	satin	satin	satin
Dimensions	Ø 50 x 2,0 mm	Ø 60 x 2,0 mm	Ø 80 x 2,0 mm	Ø 100 x 2,0 mm
Details	A=M6; Ø=50	A=M8; Ø=60	A=M8; Ø=80	A=M10; Ø=100

















Product Code	480120	480150	480200	CN7100300
Material	AISI 304	AISI 304	AISI 304	AISI 316
Type	empty	empty	empty	empty
Surface	satin	satin	satin	satin
Dimensions	Ø 120 x 2,0 mm	Ø 150 x 2,0 mm	Ø 200 x 2,0 mm	Ø 300 x 2,0 mm
Details	A=M10; Ø=120	A=M10; Ø=150	A=M10; Ø=200	A=M6; Ø=30
