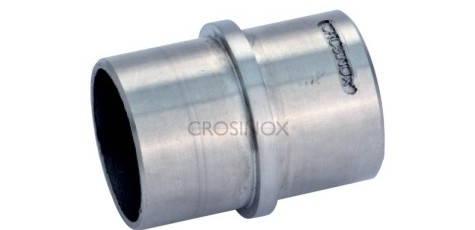

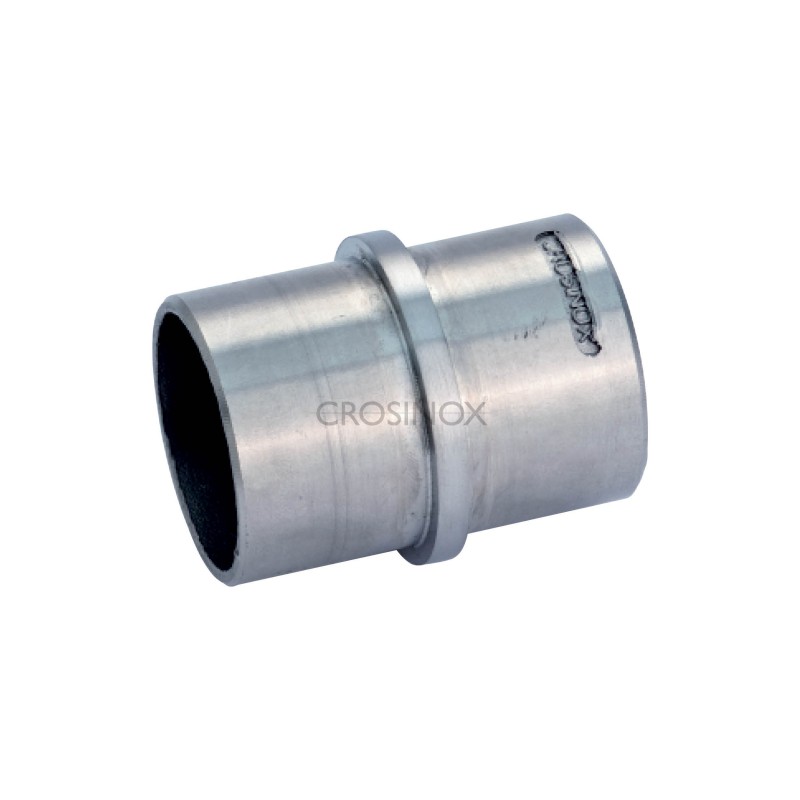

Connector

Connectors:

• CN4570200 Connector, tube Ø 42,4 x 2,0 mm V2A, polished

• 090400 Connector, tube Ø 33,7 x 2,0 mm V2A, polished

• 090500 Connector, tube Ø 42,4 x 2,0 mm V2A, polished

• 090600 Connector, tube Ø 48,3 x 2,0 mm V2A, polished

• CN4570100 Connector, tube Ø 33,7 x 2,0 mm V4A, polished

• CN4570210 Connector, tube Ø 42,4 x 2,0 mm V4A, polished

• CN4570220 Connector, tube Ø 42,4 x 2,6 mm V4A, polished

• CN4570300 Connector, tube Ø 48,3 x 2,0 mm V4A, polished

• CN4570310 Connector, tube Ø 48,3 x 2,6 mm V4A, polished

• CN4570400 Connector, tube Ø 60,3 x 2,0 mm V4A, polished

Technical Characteristics for  CN4570200,  090400, 090500,  090600 :

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for CN4570100, CN4570210 CN4570220, CN4570300, CN4570310, CN4570400 :

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

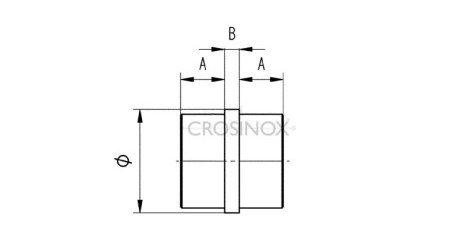

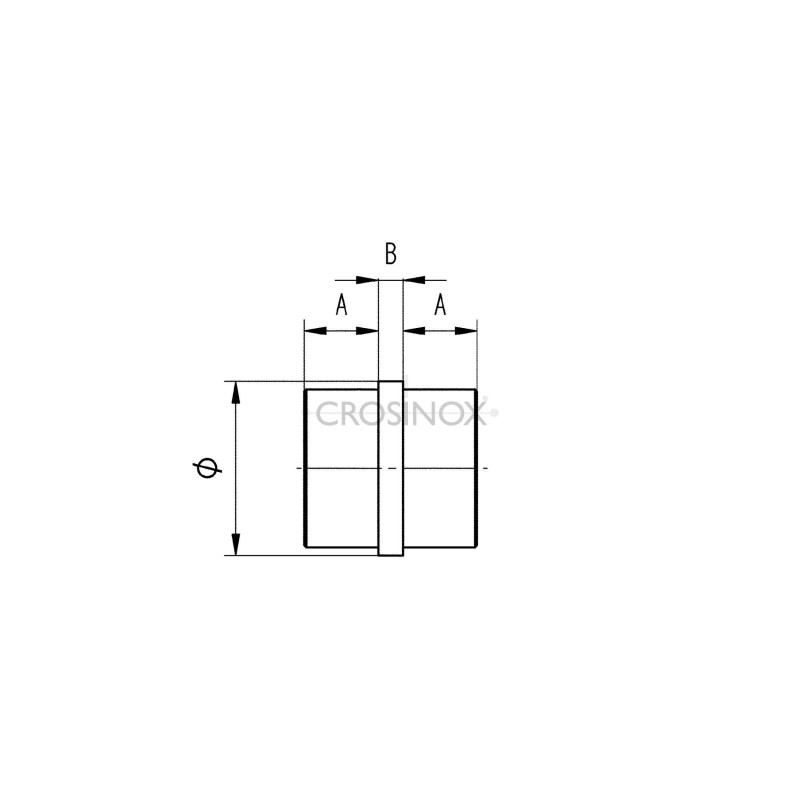

Details:

• CN4570200 --> A=25; B=4
• 090400        --> A=18; B=5
• 090500        --> A=25; B=6
• 090600        --> A=22,5; B=5,5
• CN4570100 --> A=25; B=3
• CN4570210 --> A=25; B=4
• CN4570220 --> A=25; B=4
• CN4570300 --> A=25; B=4
• CN4570310 --> A=25; B=4
• CN4570400 -->  A=25; B=6
