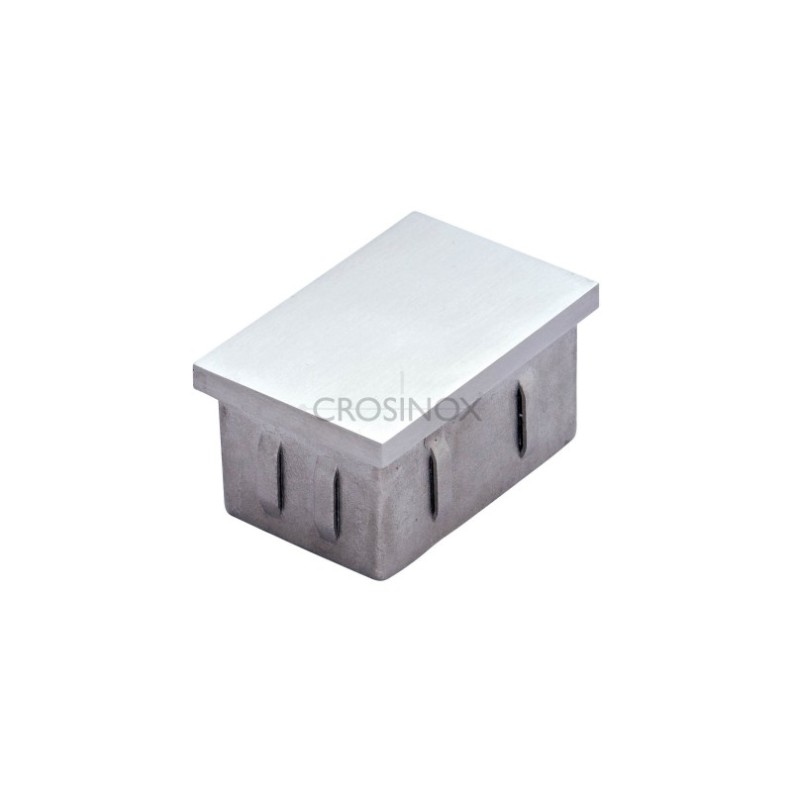

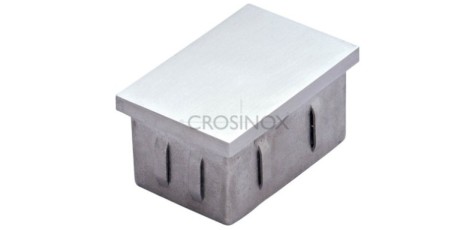

Square Cap - Terminal

Caps:

• CN3973020 Cap flexible, tube 30 x 20 mm hollow V2A, polished

• CN3974020 Cap flexible, tube 40 x 20 mm hollow V2A, polished

• CN3974030 Cap flexible, tube 40 x 30 mm hollow V2A, polished

• CN3975030 Cap flexible, tube 50 x 30 mm hollow V2A, polished

• CN3976040 Cap flexible, tube 60 x 40 mm hollow V2A, polished

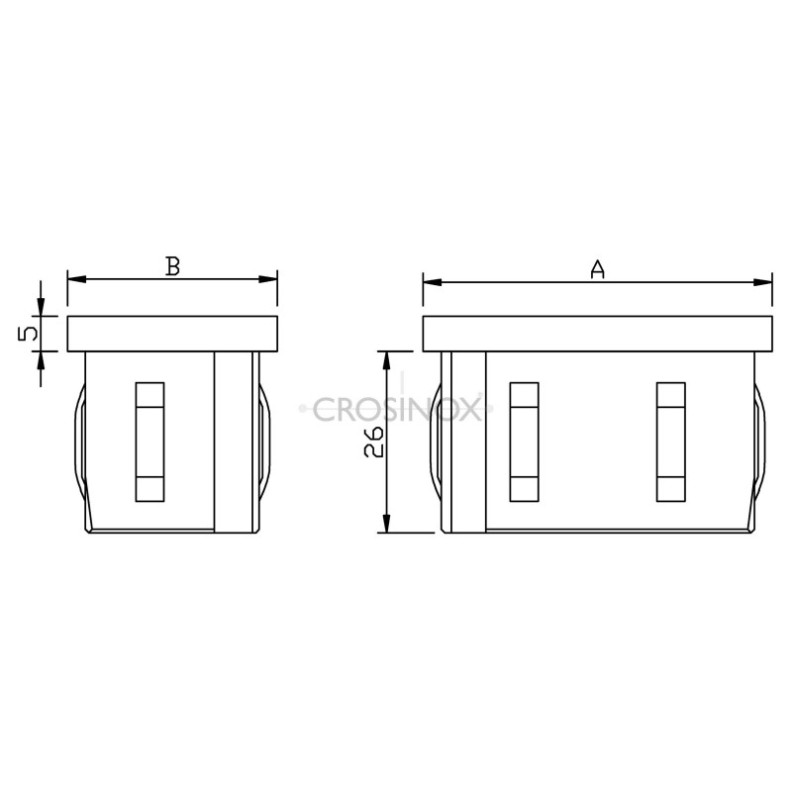

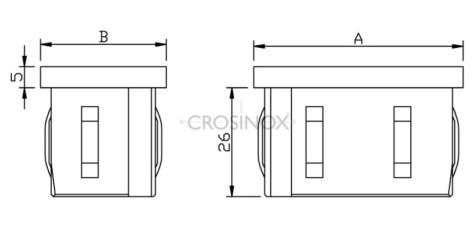

Technical Characteristics:

Product Code	CN3973020	CN3974020	CN3974030
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	30 x 20 mm	40 x 20 mm	40 x 30 mm
Type	empty	empty	empty
Wall Thickness	1,25 - 2,0 mm	1,25 - 2,0 mm	1,25 - 2,0 mm







Product Code	CN3975030	CN3976040
Material	AISI 304	AISI 304
Surface	satin	satin
Dimensions	50 x 30 mm	60 x 40 mm
Type	empty	empty
Wall Thickness	1,25 - 2,0 mm	1,25 - 2,0 mm
