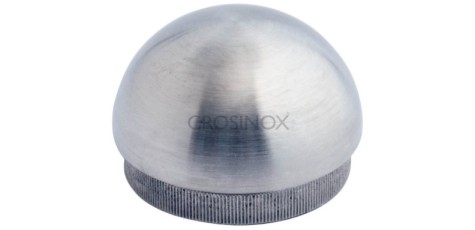

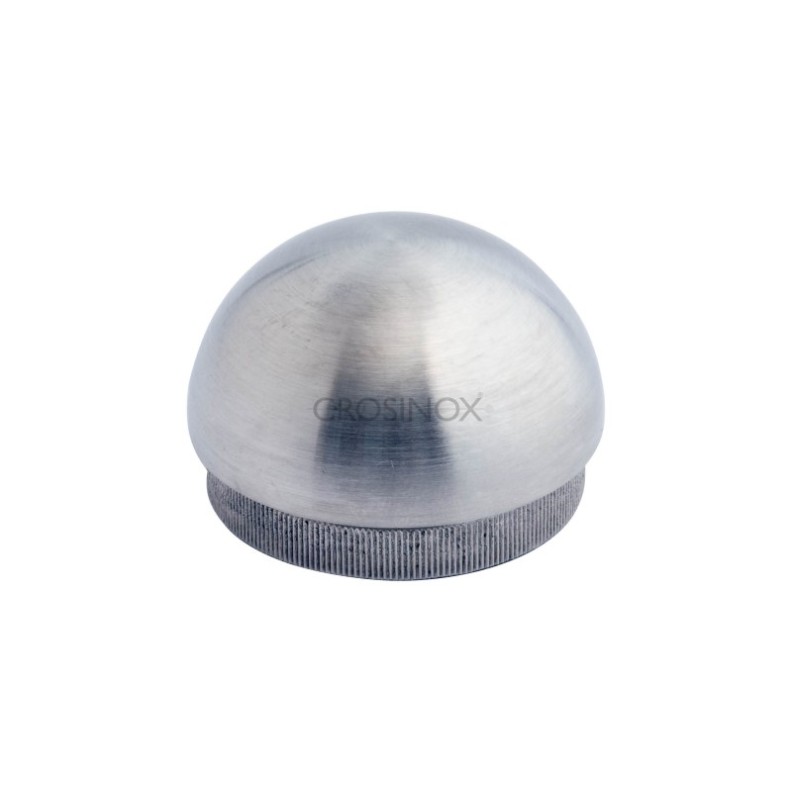

Round Cap - Terminal

Caps:

• CN3333720 cap with knurl, tube Ø 33,7 x 2,0 mm solid V2A, polished

• CN3342420 cap with knurl, tube Ø 42.4 x 2.0 mm solid V2A, polished

• CN3342426 cap with knurl, tube Ø 42,4 x 2,6 mm solid V2A, polished

• CN3348320 cap with knurl, tube Ø 48,3 x 2,0 mm solid V2A, polished

• CN3348326 cap with knurl, tube Ø 48.3 x 2.6 mm solid V2A, polished

Technical Characteristics:

Product Code	CN3333720	CN3342420	CN3342426
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	Ø 33,7 x 2,0 mm	Ø 42,4 x 2,0 mm	Ø 42,4 x 2,6 mm
Type	massif	massif	massif

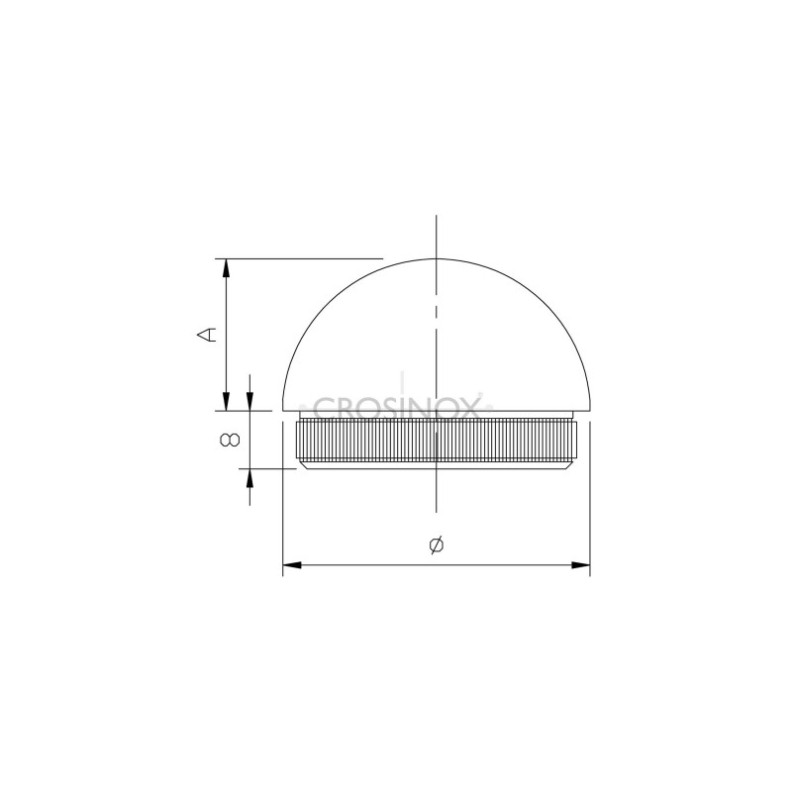

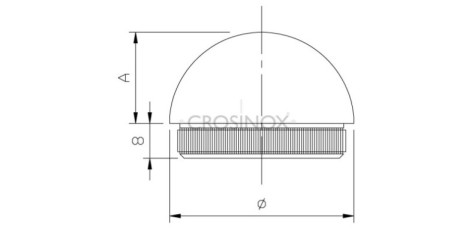

Details	A=17	A=21	A=21









Product Code	CN3348320	CN3348326
Material	AISI 304	AISI 304
Surface	satin	satin
Dimensions	Ø 48,3 x 2,0 mm	Ø 48,3 x 2,0 mm
Type	massif	massif
Details	A=24	A=24
