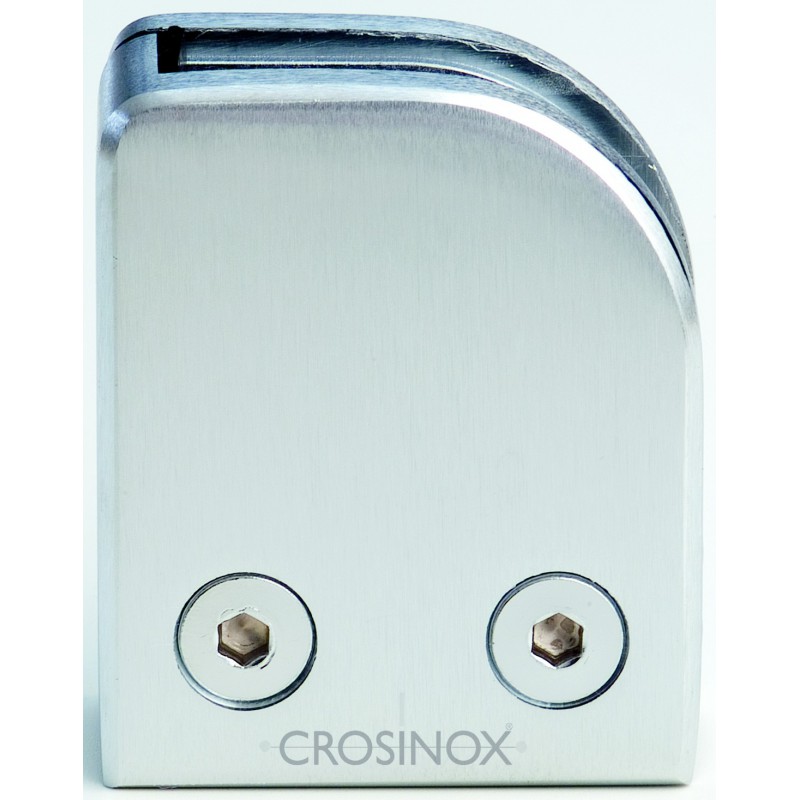

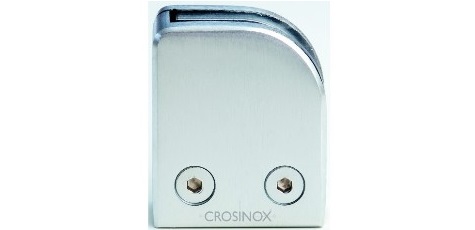

Corner Glass Clamp

Glass Clamps:

• CN6103424 Glass clamp corner, pipe Ø 42,4 / left zinc die cast

• CN6104424 Glass clamp corner, pipe Ø 42,4 / right zinc die cast

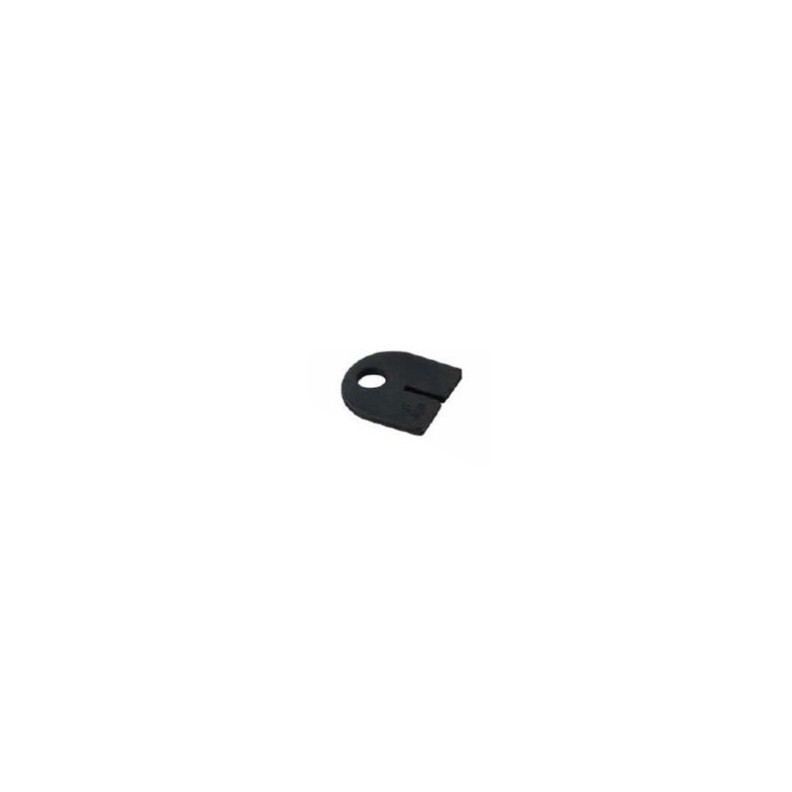

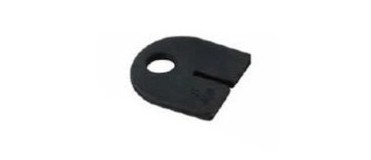

Rubber Inserts:

• CN6450110 Rubber insert, set glass 10,76 mm EPDM
• CN6450120 Rubber insert, set glass 11,52 mm EPDM
• CN6450130 Rubber insert, set glass 12,00 mm EPDM
• CN6450140 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6103424	CN6104424
Material	Zinc	Zinc
Surface	Stainless steel effect	Stainless steel effect
Type	Corner	Corner
Measures	53 x 60 mm	53 x 60 mm
Pipe fitting	42.4 mm / left	42.4 mm / right

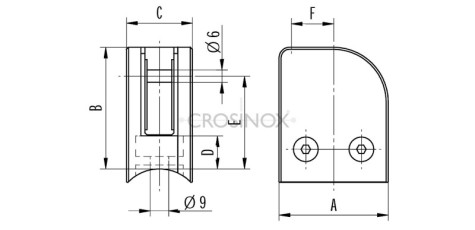

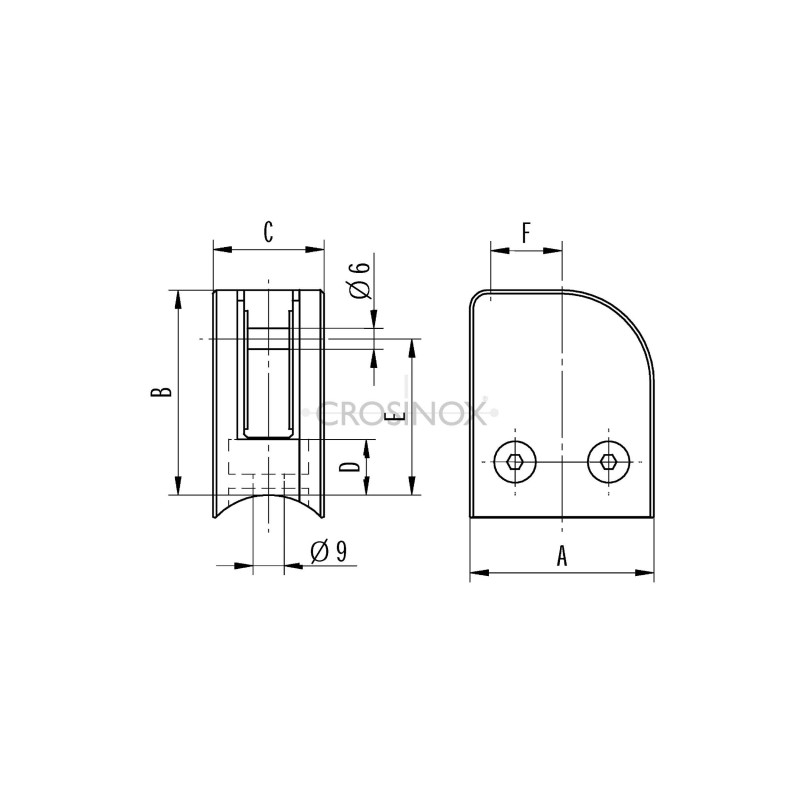

Details	A=53; B=60; C=32; D=16; E=45; F=22	A=53; B=60; C=32; D=16; E=45; F=22
