Tubes:

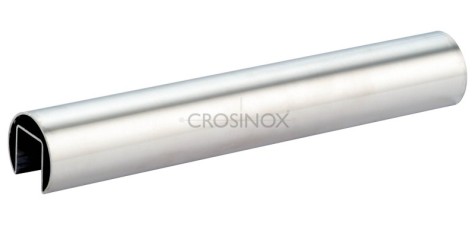

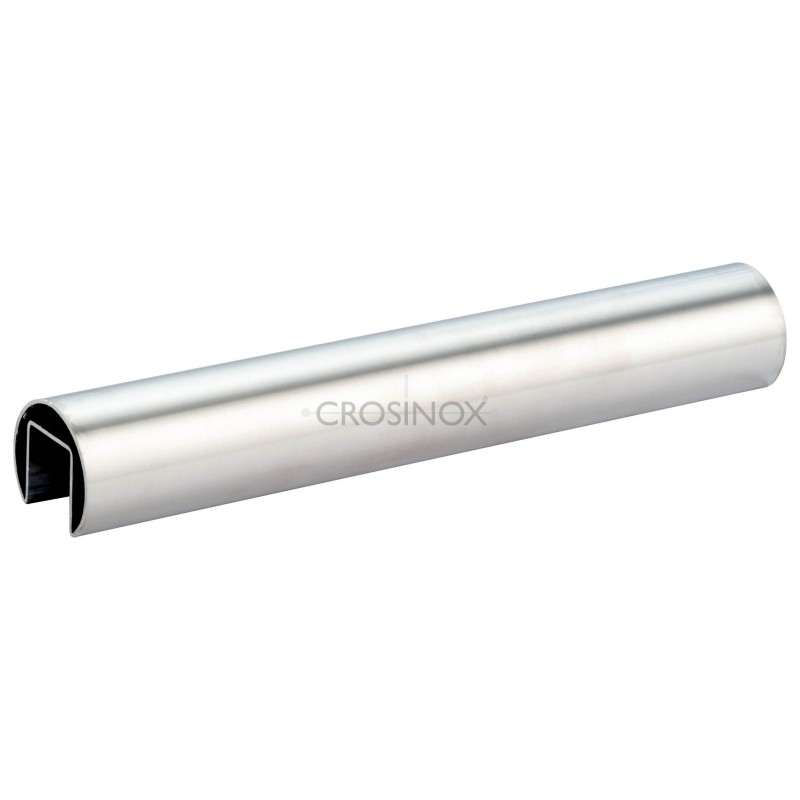

- CN1000424 Grooved tube, Ø 42.4 x 1.5 mm, groove 24 x 24 mm bendable V2A, polished 24.90 € per meter
- CN1000483 Grooved tube, Ø 48,3 x 1,5 mm, groove 27 x 30 mm bendable V2A, polished 31,55 € per meter
- CN1100424 Grooved tube, Ø 42.4 x 1.5 mm, groove 24 x 24 mm bendable V4A, polished 37.60 € per meter
- CN1100483 Grooved tube, Ø 48.3 x 1.5 mm, groove 27 x 30 mm bendable V4A, polished 44.50 € per meter
- CN2550424 Grooved tube, Ø 42,4 x 1,5 mm, groove 24 x 24 mm bendable V4A, high polished 43,40 € per meter
- CN2550483 Grooved tube, Ø 48,3 x 1,5 mm, groove 27 x 30 mm bendable V4A, high polished 51,05 € per meter
Technical Characteristics:
Product Code |
CN1000424
|
CN1000483
|
CN1100424
|
Material
|
AISI 304
|
AISI 304
|
AISI 316 |
Surface
|
satin
|
satin
|
satin
|
Dimensions
|
42,4 x 1,5 mm
|
48,3 x 1,5 mm
|
42,4 x 1,5 mm
|

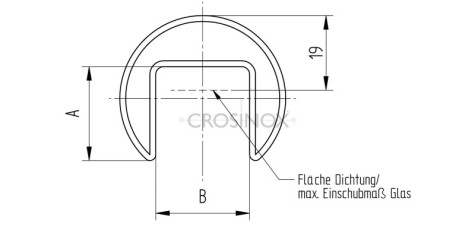

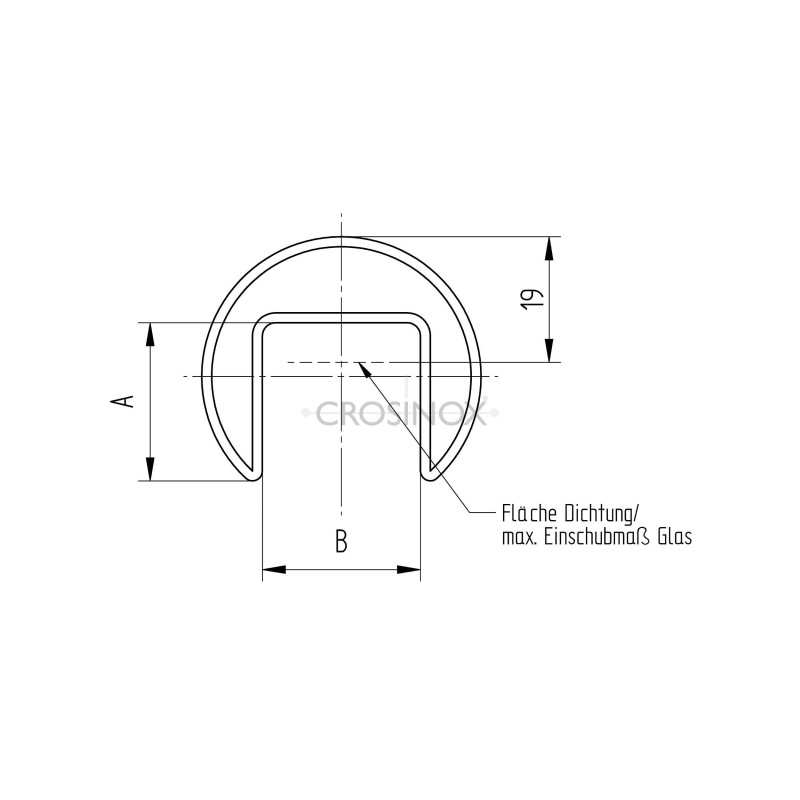

Details |
A=24; B=24 |
A=30; B=27 |
A=24; B=24 |
Product Code |
CN1100483
|
CN2550424
|
CN2550483
|
Material
|
AISI 316
|
AISI 316
|
AISI 316 |
Surface
|
satin
|
mirror polished
|
mirror polished
|
Dimensions
|
48,3 x 1,5 mm
|
42,4 x 1,5 mm
|
48,3 x 1,5 mm
|
Details |
A=30; B=27 |
A=24; B=24 |
A=30; B=27 |
-Tube length: 6 meters
-Sealing rail profile does not inluded

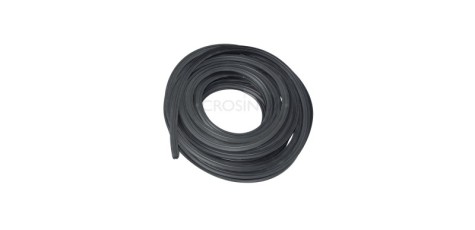

-You can find the suitable sealing rail profile down in this page
