Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6080000 Glass clamp semicircular, connection straight stainless steel effect zinc die-cast
• CN6080337 Glass clamp semicircular, tube Ø 33,7 mm stainless steel effect die cast zinc
• CN6080424 Glass clamp semicircular, tube Ø 42,4 mm stainless steel effect zinc die-cast
• CN6080483 Glass clamp semicircular, tube Ø 48.3 mm stainless steel effect zinc die-cast

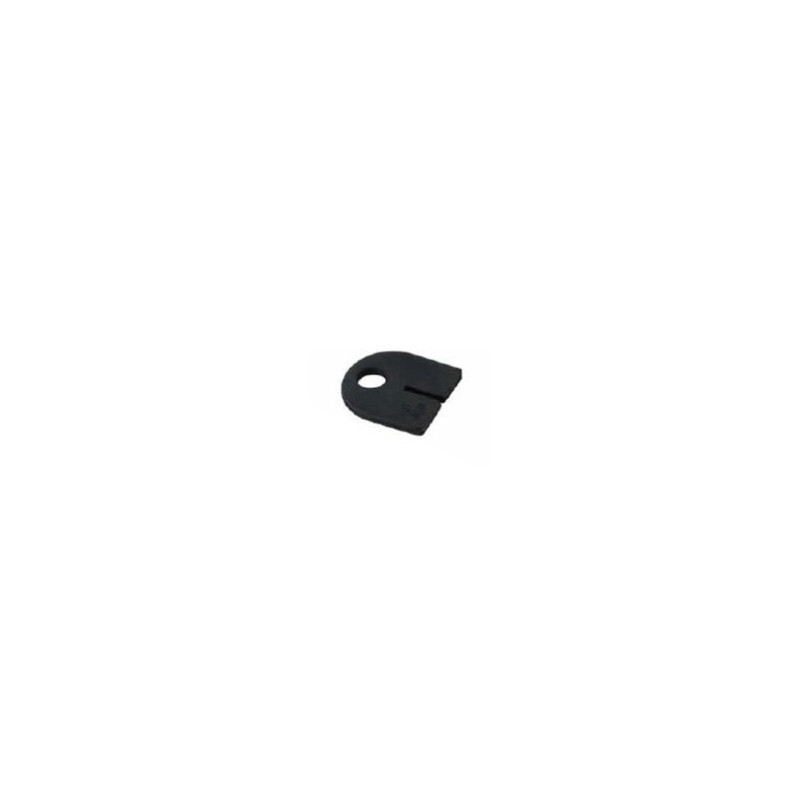

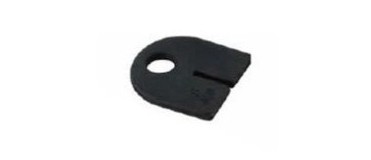

Rubber Inserts:

• CN6400510 Rubber insert, set glass 6,00 mm EPDM
• CN6400520 rubber insert, set glass 7,52 mm EPDM
• CN6400530 Rubber insert, set glass 8,00 mm EPDM
• CN6400540 Rubber insert, set glass 8,76 mm EPDM
• CN6400550 Rubber insert, set glass 9,52 mm EPDM
• CN6400560 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6080000	CN6080337	CN6080424	CN6080483
Material	Zinc	Zinc	Zinc	Zinc
Surface	Stainless steel effect	Stainless steel effect	Stainless steel effect	Stainless steel effect
Type	Half round	Half round	Half round	Half round
Measures	63 x 45 mm	63 x 45 mm	63 x 45 mm	63 x 45 mm
Glass Thickness	-	-	-	-
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm	Ø 48,3 mm
Details	A=45; B=63; C=27,5; D=16; E=48;	A=45; B=63; C=27,5; D=16; E=48;	A=45; B=63; C=27,5; D=16; E=48;	A=45; B=63; C=27,5; D=16; E=48;
