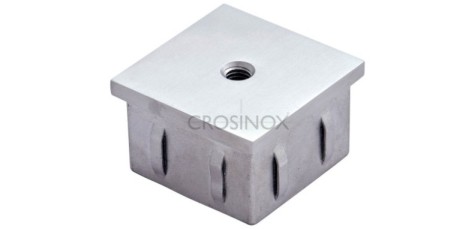

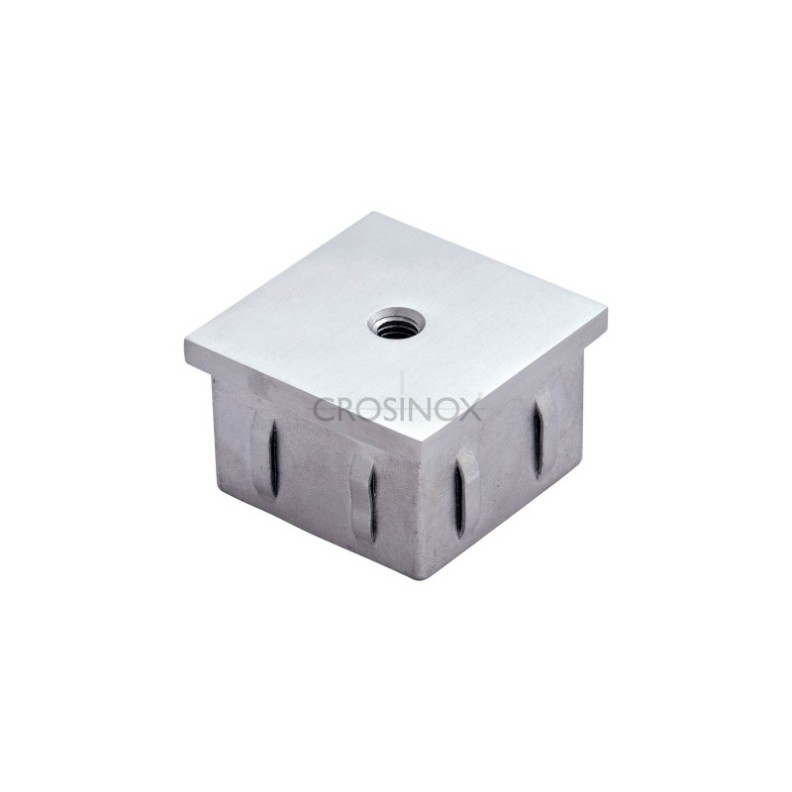

Square Cap - Terminal

Caps:

• CN4302020 cap, grooved tube 20 x 20 x 1,25 mm V2A, polished

• CN4302525 cap, grooved tube 25 x 25 x 1,25 mm V2A, polished

• CN4303030 cap, grooved tube 30 x 30 x 1,25 mm V2A, polished

• CN4304040 cap, grooved tube 40 x 40 x 1,50 mm V2A, polished

• CN4306040 cap, grooved tube 60 x 40 x 1,50 mm V4A, polished

Technical Characteristics:

Product Code	CN4302020	CN4302525	CN4303030	CN4304040	CN4306040
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin	satin
Dimensions	20 x 20 mm	25 x 25 mm	30 x 30 mm	40 x 40 mm	60 x 40 mm

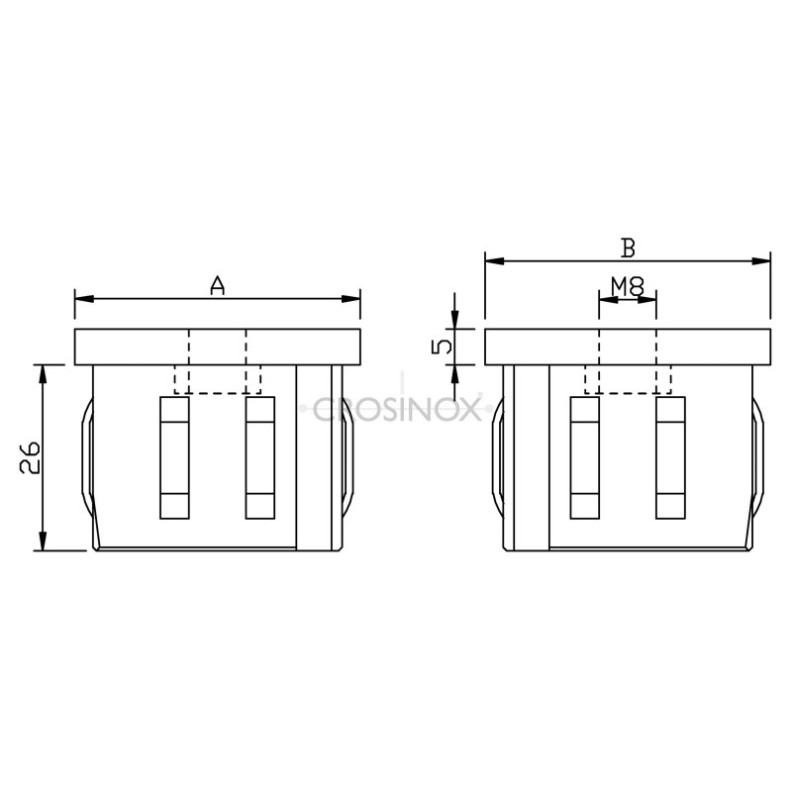

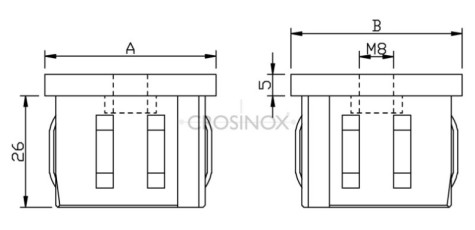

Details	A=20; B=20; C=25; D=5	A=25; B=25; C=25; D=5	A=30; B=30; C=25; D=5	A=40; B=40; C=30; D=6	A=60; B=40; C=30; D=6
