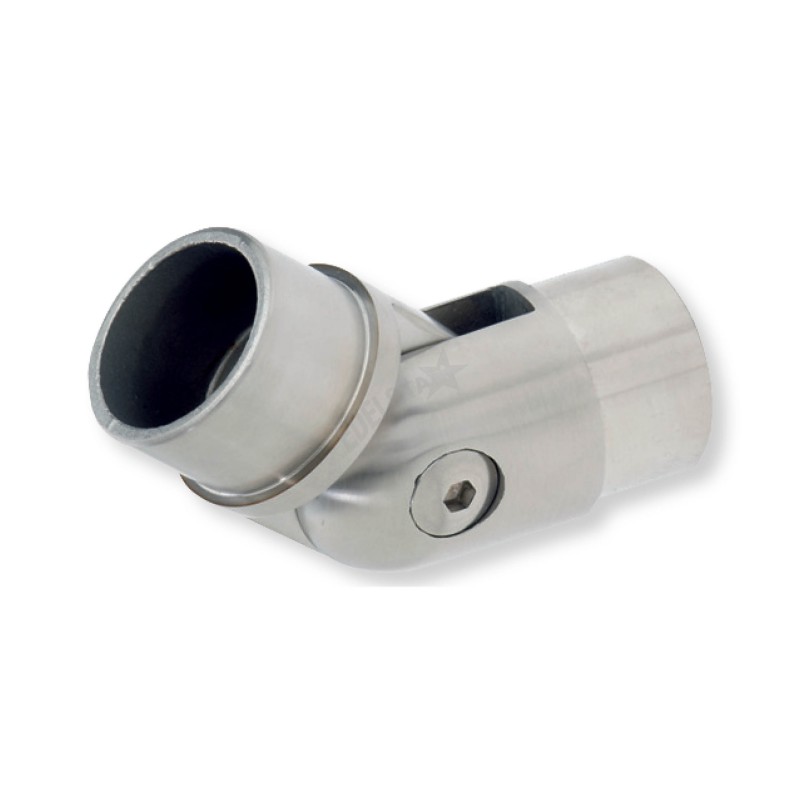

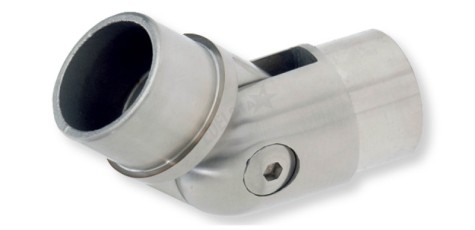

Adjustable Joint

Adjustable Joints:

• 010400 Joint, pipe Ø 33,7 x 2,0 mm V2A, polished
• 010500 Joint, pipe Ø 42,2 x 2,0 mm V2A, polished
• 010600 Joint, pipe Ø 48,3 x 2,0 mm V2A, polished
• CN4590700 Joint, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4590720 Joint, tube Ø 40,0 x 2,0 mm V4A, polished
• CN4590730 Joint, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4590750 Joint, tube Ø 42,4 x 2,6 mm V4A, polished
• CN4590760 Joint, pipe Ø 48,3 x 2,0 mm V4A, polished
• CN4590770 Joint, tube Ø 48,3 x 2,6 mm V4A, polished

Technical Characteristics for 010400, 010500, 010600:

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for CN4590700, CN4590720, CN4590730, CN4590750, CN4590760, CN4590770:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

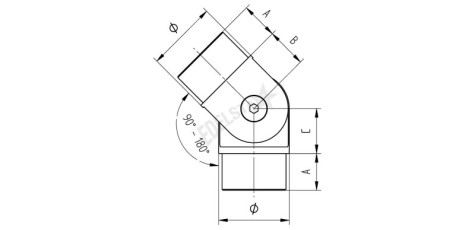

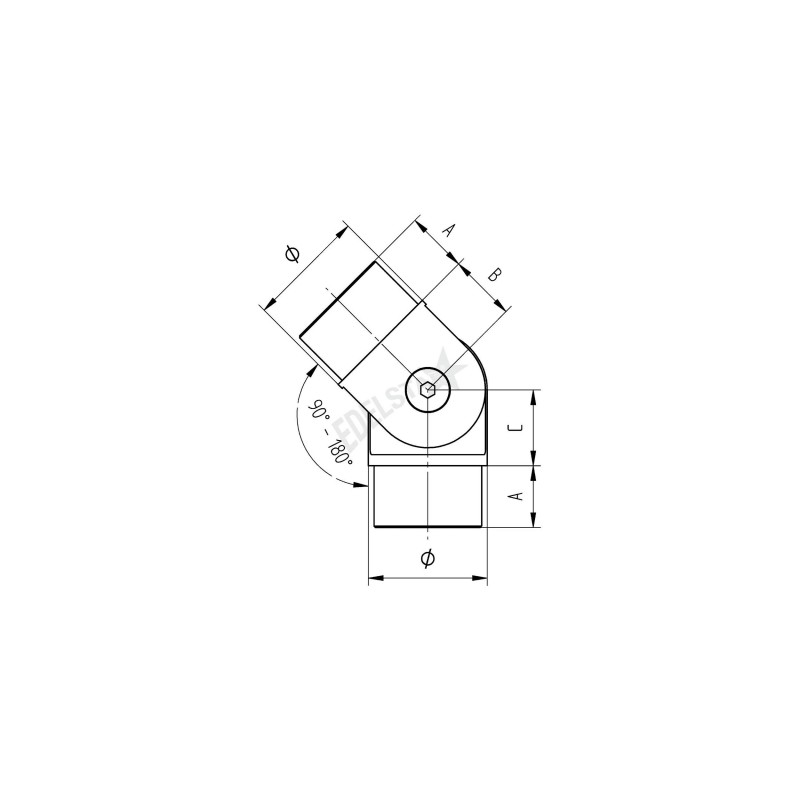

Details:

• 010400 -->A=22; B=19; C=22
• 010500 -->A=22; B=24; C=27
• 010600 -->A=25; B=27; C=31
• CN4590700 -->A=22; B=20,5; C=24,5
• CN4590720 -->A=22; B=24,5; C=29
• CN4590730 -->A=22; B=26; C=27,5
• CN4590750 -->A=22; B=26; C=27,5
• CN4590760 -->A=25; B=28; C=31,5
• CN4590770 -->A=25; B=28; C=31,5
