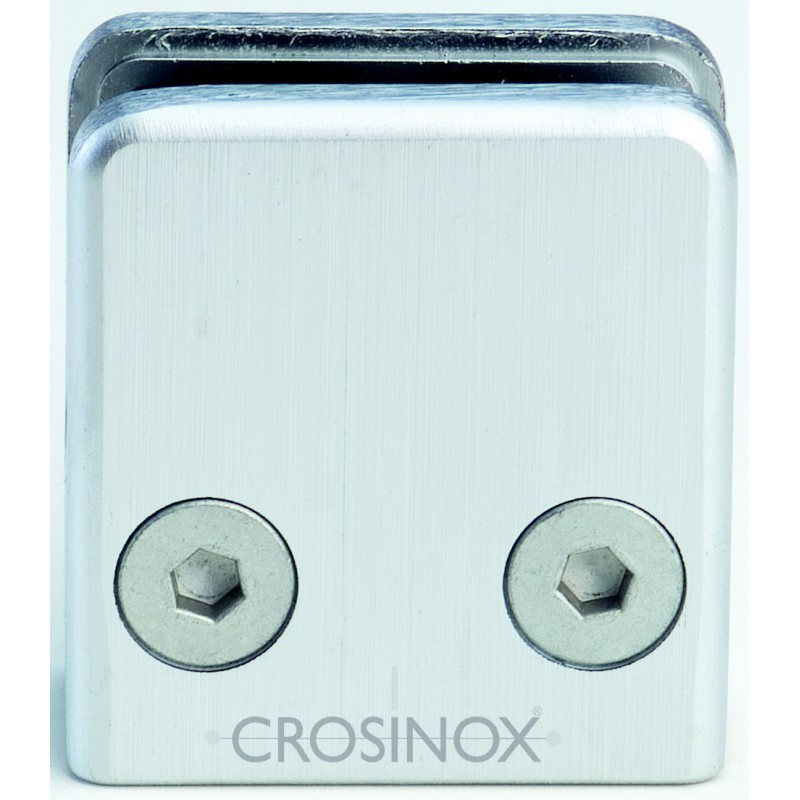

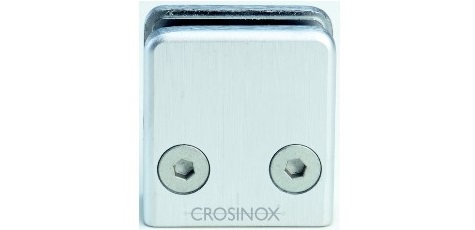

Square Glass Clamp

Glass Clamps:

• CN6050000 Glass clamp square, connection straight stainless steel effect Ziefguss

• CN6050337 Glass clamp square, tube Ø 33.7 mm stainless steel effect die cast zinc

• CN6050424 Glass clamp square, tube Ø 42,4 mm stainless steel effect zinc die-cast

• CN6050483 Glass clamp square, tube Ø 48.3 mm stainless steel effect zinc die-cast

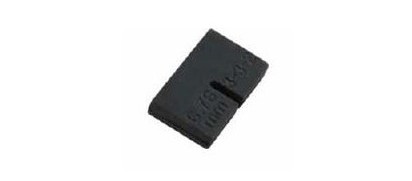

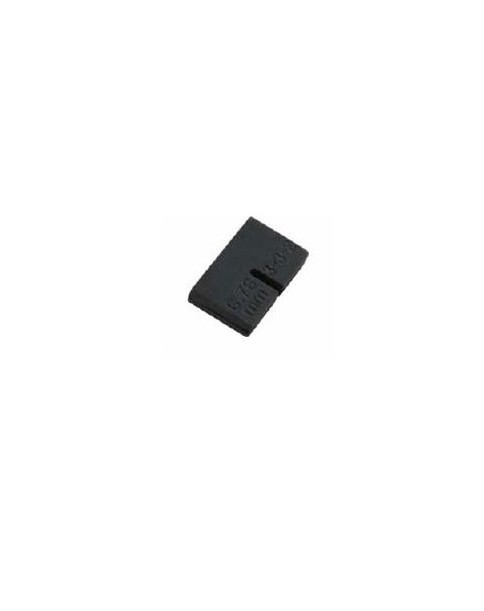

Rubber Inserts:

• CN6400210 Rubber insert, set glass 6,00 mm EPDM
• CN6400220 Rubber insert, set glass 7,52 mm EPDM
• CN6400230 Rubber insert, set glass 8,00 mm EPDM
• CN6400240 Rubber insert, set glass 8,76 mm EPDM
• CN6400250 Rubber insert, set glass 9,52 mm EPDM
• CN6400260 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6050000	CN6050337	CN6050424	CN6050483
Material	Zinc	Zinc	Zinc	Zinc
Surface	stainless steel effect	stainless steel effect	stainless steel effect	stainless steel effect
Type	square glass clamp	square glass clamp	square glass clamp	square glass clamp
Measures	43 x 43 mm	43 x 43 mm	43 x 43 mm	43 x 43 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm	Ø 48,3 mm

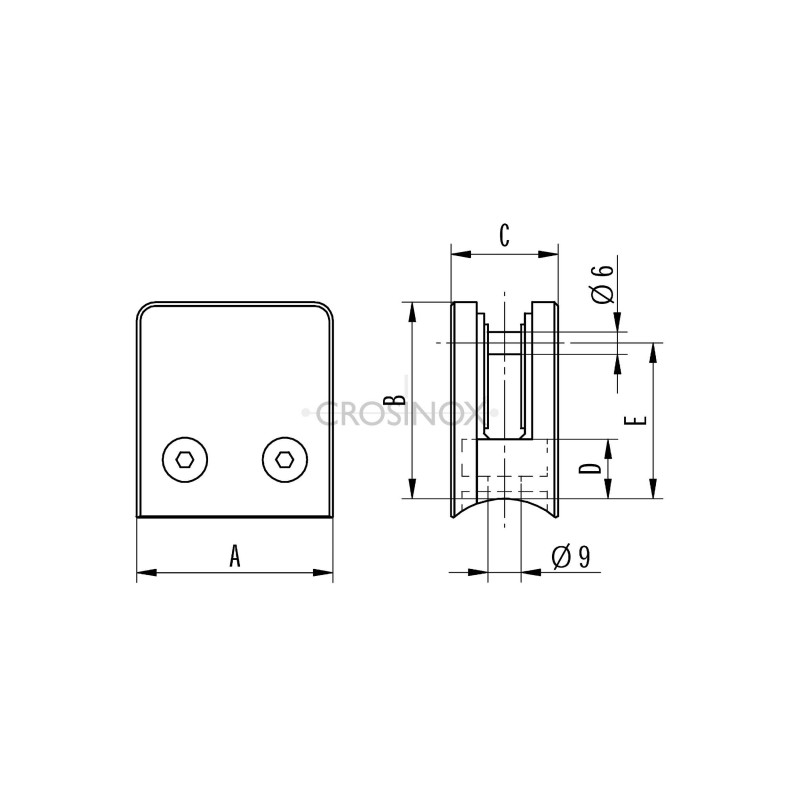

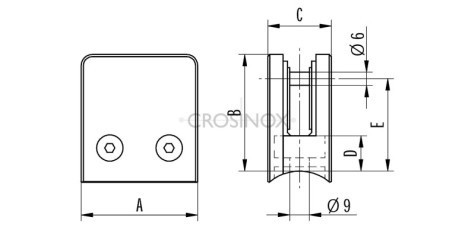

Details	A=43; B=43; C=24; D=16; E=32	A=43; B=43; C=24; D=16; E=32	A=43; B=43; C=24; D=16; E=32	A=43; B=43; C=24; D=16; E=32
