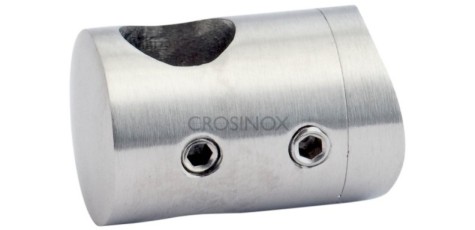

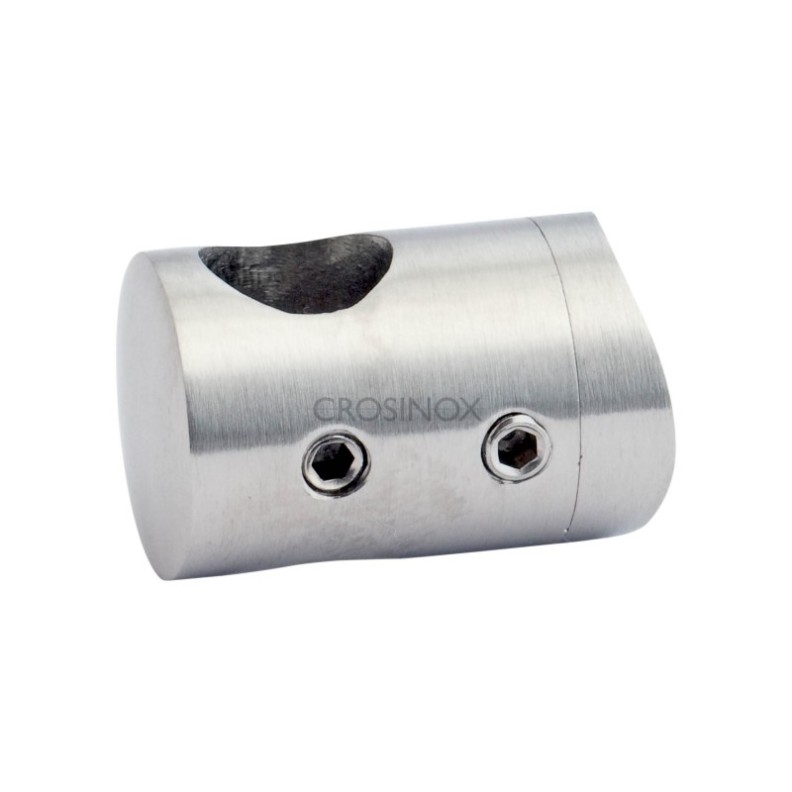

Rod Support

Rod Supports:

• CN8500100 Rod Support, 10.2 mm, conn. straight V2A, polished

• CN8500120 Rod Support, 10,2 mm, tube Ø 42,4 mm V2A, polished

• CN8500130 Rod Support, 12.2 mm, conn. straight V2A, polished

• CN8500140 Rod Support, 12,2 mm, tube Ø 33,7 mm V2A, polished

• CN8500150 Rod Support, 12,2 mm, tube Ø 42,4 mm V2A, polished

• CN8600100 Rod Support, 10.2 mm, conn. straight V4A, polished

• CN8600120 Rod Support, 10,2 mm, tube Ø 42,4 mm V4A, polished

• CN8600130 Rod Support, 12.2 mm, Anschl. straight V4A, polished

• CN8600150 Rod Support, 12,2 mm, tube Ø 42,4 mm V4A, polished

• CN8600160 Rod Support, 12,2 mm, tube Ø 48,3 mm V4A, polished

• CN8600170 Rod Support, 14.2 mm, conn. straight V4A, polished

• CN8600180 Rod Support, 14,2 mm, tube Ø 42,4 mm V4A, polished

• CN8551150 Rod Support, 12,2 mm, tube Ø 42,4 mm V2A, mirror polished

• CN8600155 Rod Support, 12,2 mm, tube Ø 42,4 mm V4A, mirror polished

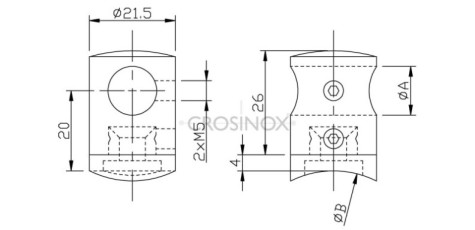

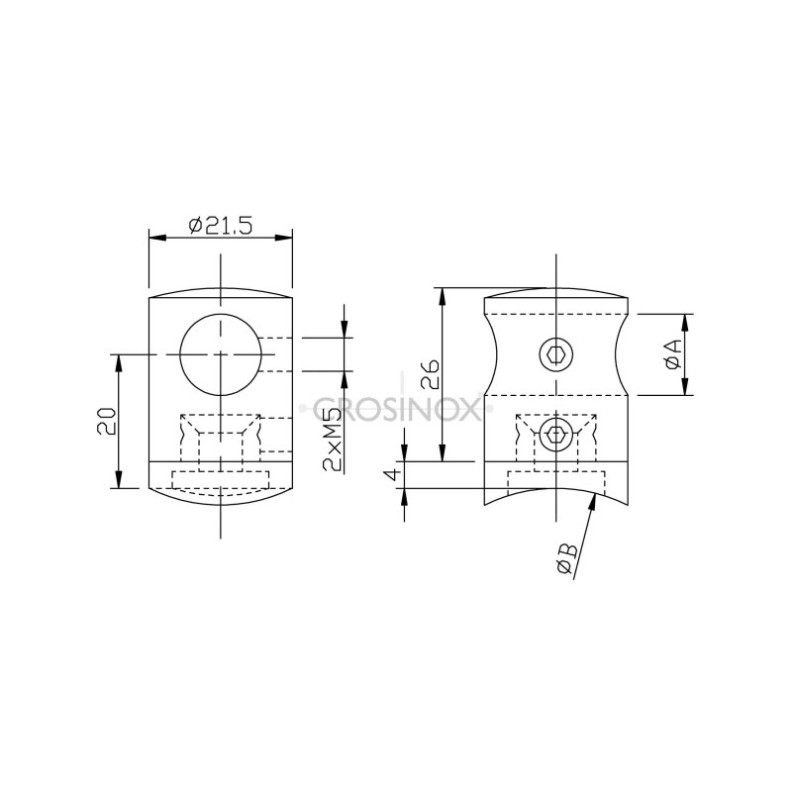

Technical Characteristics:

Product Code	CN8500100	CN8500120	CN8500130	CN8500140	CN8500150
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin	satin
Type	rod support	rod support	rod support	rod support	rod support
Pipe fitting	straight	Ø 42,4 mm	straight	Ø 33,7	Ø 42,4 mm
Details	A = 10.2;	A=10,2; B=42,4	A=12,2	A=12,2; B=33,7	A=12,2; B=42,4



















Product Code	CN8600100	CN8600120	CN8600130	CN8600150	CN8600160
Material	AISI 316	AISI  316	AISI  316	AISI 316	AISI 316
Surface	satin	satin	satin	satin	satin
Type	two-piece, complete with threaded grains	two-piece, complete with threaded grains	two-piece, complete with threaded grains	two-piece, complete with threaded grains	two-piece, complete with threaded grains
Pipe fitting	straight	Ø 42,4 mm	straight	Ø 42,4 mm	Ø 48,3 mm
Details	A = 10.2	A=10,2; B=42,4	A=12,2	A=12,2; B=42,4	A=12,2; B=48,3

















Product Code	CN8600170	CN8600180	CN8600150	CN8600155
Material	AISI 316	AISI  316	AISI  316	AISI 316
Surface	satin	satin	mirror polished	mirror polished
Type	two-piece, complete with threaded grains	two-piece, complete with threaded grains	two-piece, complete with threaded grains	two-piece, complete with threaded grains
Pipe fitting	straight	Ø 42,4 mm	Ø 42,4 mm	Ø 42,4 mm
Details	A = 14.2 mm	A=14,2; B=42,4	A=12,2; B=42,4	A=12,2; B=42,4
