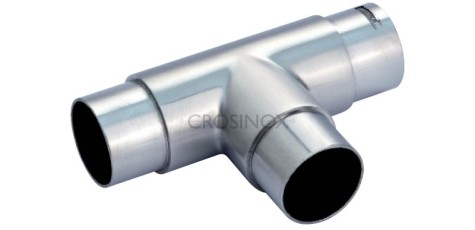

''T'' piece

''T'' pieces:

• CN4540115 T-piece, tube Ø 42,4 x 2,0 mm V2A, polished
• 080400 T-piece, tube Ø 33,7 x 2,0 mm V2A, polished
• 080500 T-piece, tube Ø 42,4 x 2,0 mm V2A, polished
• 080600 T-piece, tube Ø 48,3 x 2,0 mm V2A, polished
• CN4540100 T-piece, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4540120 T-piece, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4540130 T-piece, tube Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for CN4540115, 080400, 080500, 080600:

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for CN4540100, CN4540120, CN4540130:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

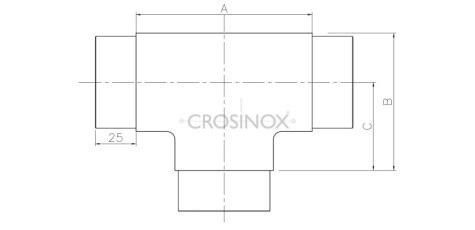

Details:

• CN4540115 -->A=65; B=87;  C=43,5
• 080400        -->A=48; B=40,9; C=24
• 080500        -->A=60; B=51,2; C=30
• 080600        -->A=65; B=57,2;  C=33
• CN4540100 -->A=75; B=54,5; C=37,5
• CN4540120 -->A=87; B=65;    C=43,5
• CN4540130 -->A=89; B=68,5; C=44,5
