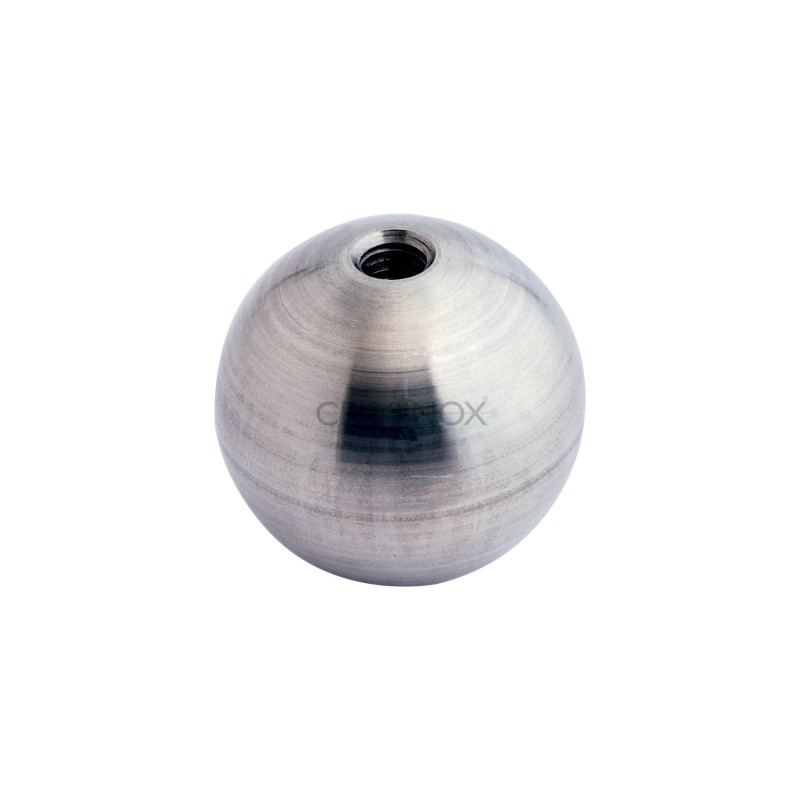

Spheroidal Terminal Ball

Balls:

• 450400 ball, Ø 15 mm, one-sided sack thread M6 V2A, bright white

• 450350 ball, Ø 20 mm, one-sided sack thread M6 V2A, bright white

• 450300 ball, Ø 30 mm, one-sided sack thread M6 V2A, bright white

• 450250 Ball, Ø 30 mm, one-sided sack thread M6 V2A, bright white

• 450200 ball, Ø 40 mm, one-sided sack thread M8 V2A, bright white

Technical Characteristics:

Product Code	450400	450350	450300	450250	450200
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif	massif	massif
Surface	raw	raw	raw	raw	raw

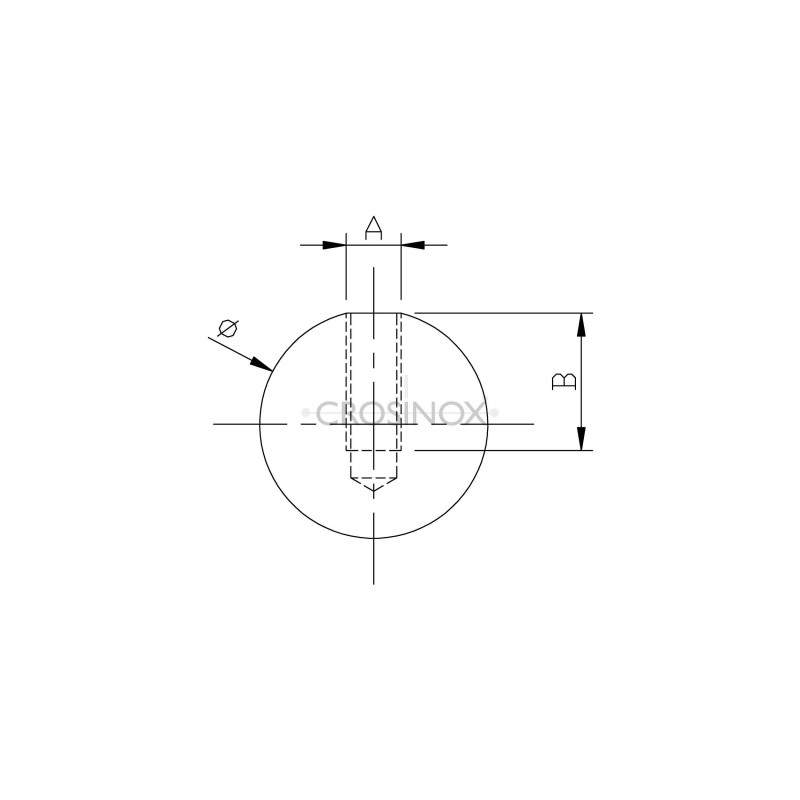

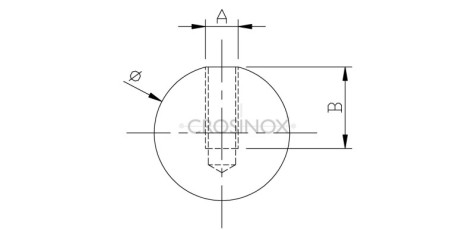

Details	A=M6; B=9; Ø=15	A=M6; B=12; Ø=20	A=M6; B=15; Ø=25	A=M6; B=15; Ø=30	A=M8; B=15; Ø=40
