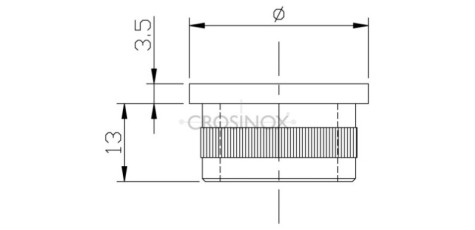

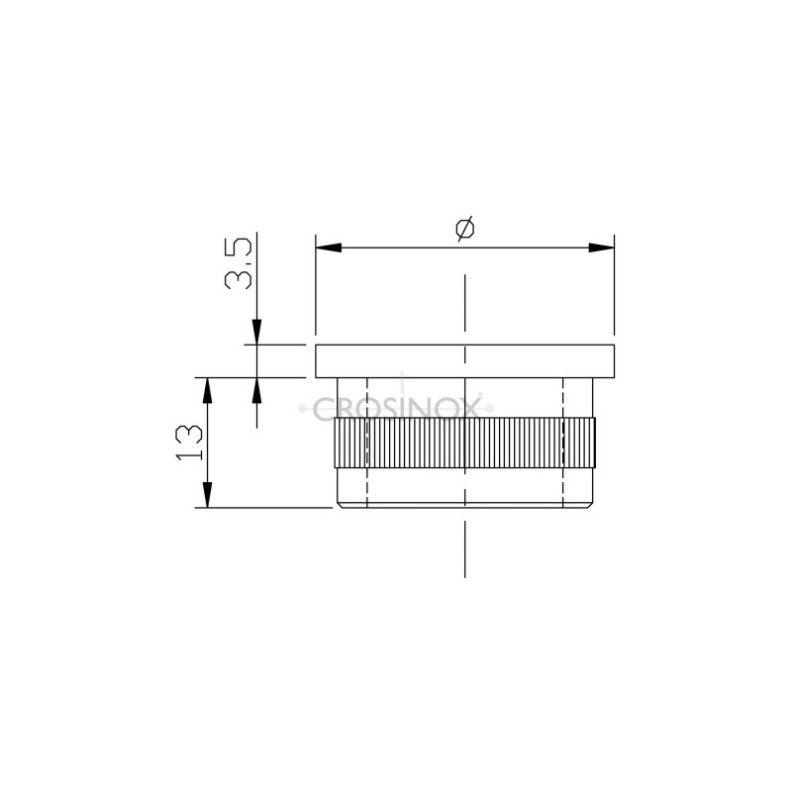

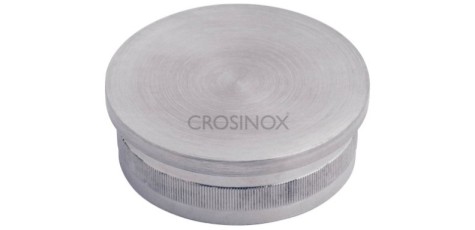

Round Cap - Terminal

Caps:

• CN3600100 Cap with knurl, tube Ø 21,3 x 2,0 mm hollow V4A, polished

• CN3600110 cap with knurl, tube Ø 26,9 x 2,0 mm hollow V4A, polished

• CN3600120 cap with knurl, tube Ø 30,0 x 2,0 mm hollow V4A, polished

• CN3600130 cap with knurl, tube Ø 33,7 x 2,0 mm hollow V4A, polished

• CN3600140 Cap with knurl, tube Ø 42,4 x 2,0 mm hollow V4A, polished

• CN3600150 cap with knurl, tube Ø 42,4 x 2,6 mm hollow V4A, polished

• CN3600160 cap with knurl, tube Ø 48.3 x 2.0 mm hollow V4A, polished

• CN3600170 cap with knurl, tube Ø 60,3 x 2,0 mm hollow V4A, polished

• CN3600180 Cap with knurl, tube Ø 76,1 x 2,0 mm hollow V4A, polished

• CN3600190 Cap with knurl, tube Ø 88.9 x 2.0 mm hollow V4A, polished

• CN3600200 cap with knurl, tube Ø 101,6 x 2,0 mm hollow V4A, polished

Technical Characteristics:

Product Code	CN3600100	CN3600110	CN3600120	CN3600130
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Dimensions	21,3 x 2,0 mm	26,9 x 2,0 mm	30,0 x 2,0 mm	33,7 x 2,0 mm
Type	empty	empty	empty	empty







Product Code	CN3600140	CN3600150	CN3600160
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Dimensions	42,4 x 2,0 mm	42,4 x 2,6 mm	48,3 x 2,0 mm
Type	empty	empty	empty





Product Code	CN3600180	CN3600190	CN3600200
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Dimensions	76,1 x 2,0 mm	88,9 x 2,0 mm	101,6 x 2,0 mm
Type	empty	empty	empty
