Spheroidal Cap Ring

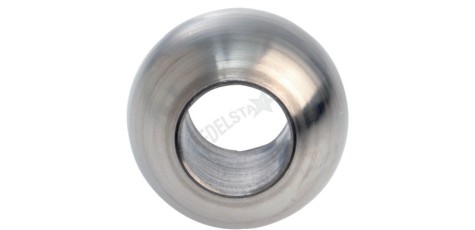

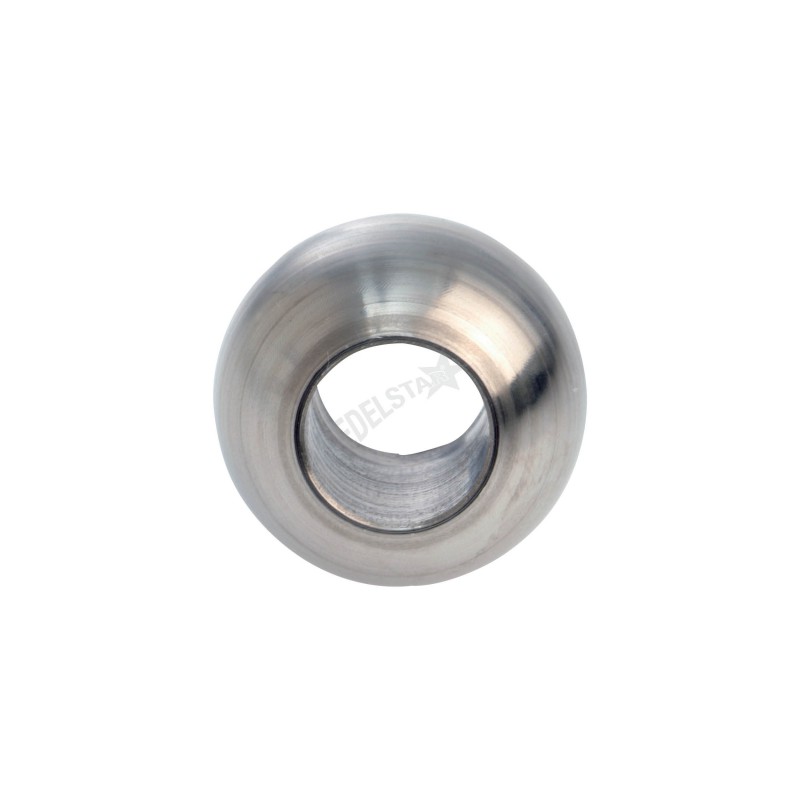

Balls:

• 450640 ball, Ø 25 mm, through hole, rod Ø 10 mm V2A, polished

• 450650 ball, Ø 25 mm, through hole, rod Ø 12 mm V2A, polished

• 450670 ball, Ø 30 mm, through hole, rod Ø 10 mm V2A, polished

• 450680 ball, Ø 30 mm, through hole, rod Ø 12 mm V2A, polished

• 450690 ball, Ø 30 mm, through hole, rod Ø 14 mm V2A, polished

• 450695 ball, Ø 30 mm, through hole, rod Ø 16 mm V2A, polished

Technical Characteristics:

Product Code	450640	450650	450670
Material	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif
Surface	satin	satin	satin

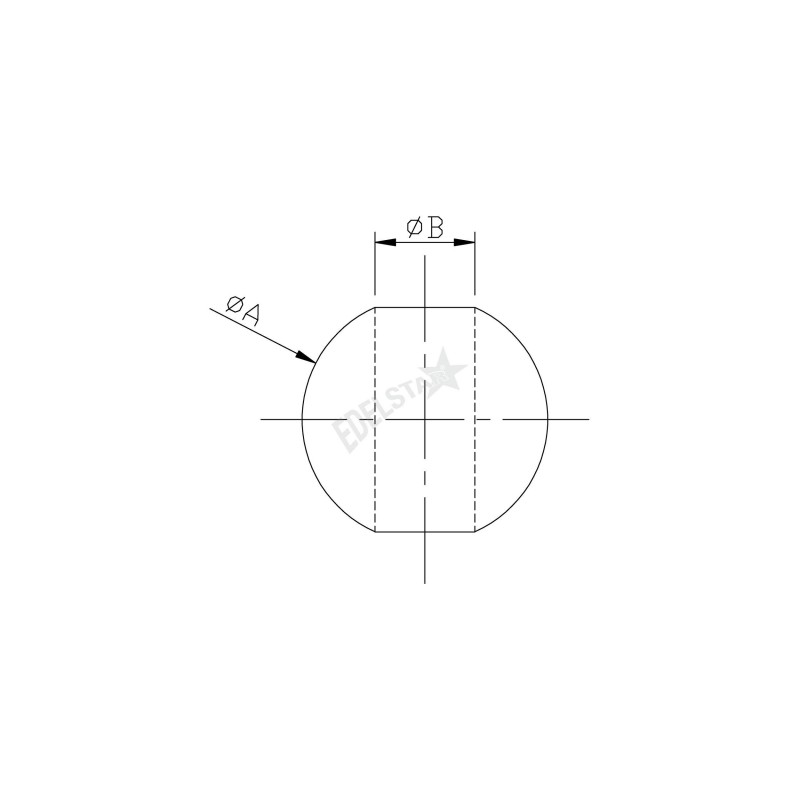

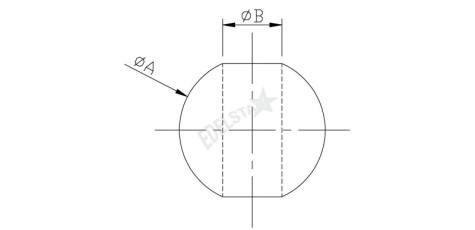

Details	A=25; B=10,2	A=25; B=12,2	A=30; B=10,2

















Product Code	450680	450695
Material	AISI 304	AISI 304
Type	massif	massif
Surface	satin	satin
Details	A=30; B=12,2	A=30; B=16,2
