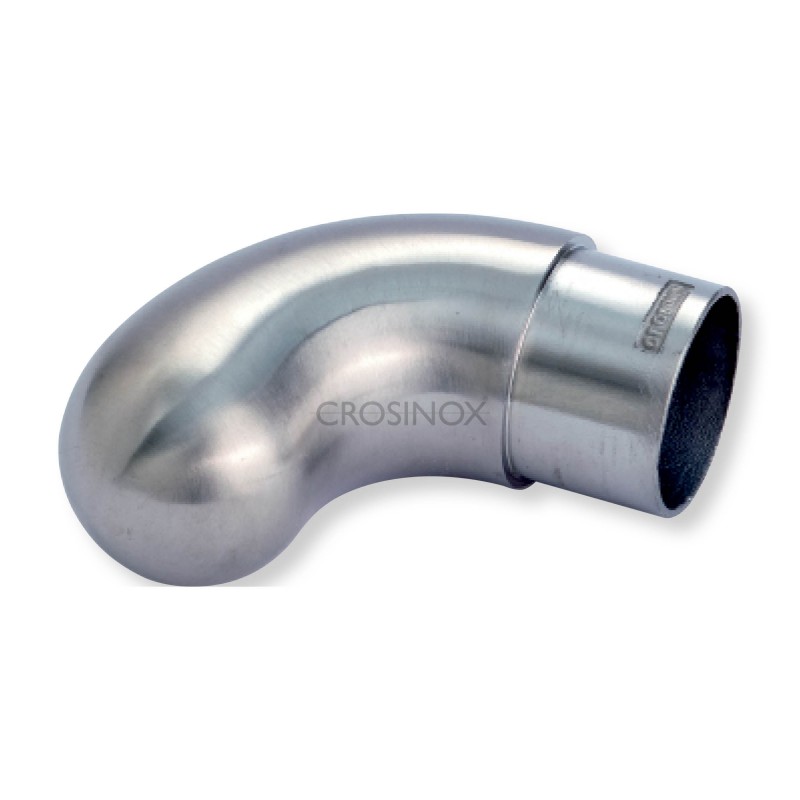

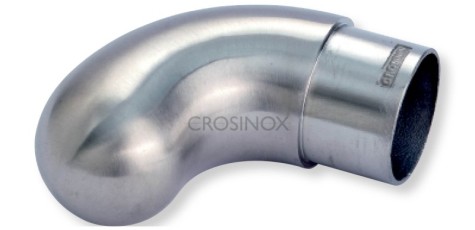

Scroll End

Scroll Ends:

• CN4590900 End piece rounded, pipe Ø 33,7 x 2,0 mm V4A, polished
• CN4590910 End piece rounded, pipe Ø 42,4 x 2,0 mm V4A, polished
• CN4590930 End piece rounded, pipe Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for CN4590900, CN4590910, CN4590930:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

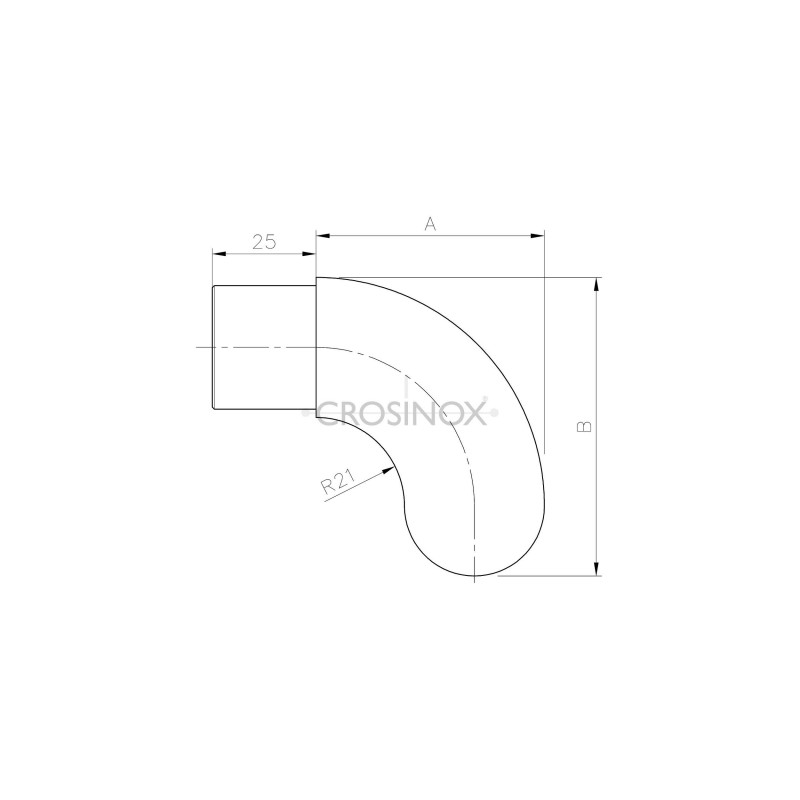

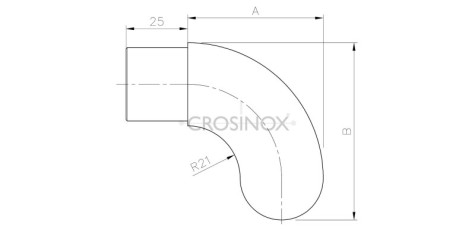

Details:

• CN4590900 --> A=55; B=72
• CN4590910 --> A=65; B=86
• CN4590930 --> A=74,5; B=99
