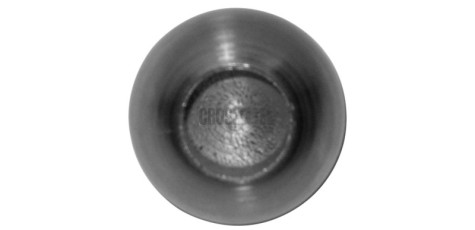

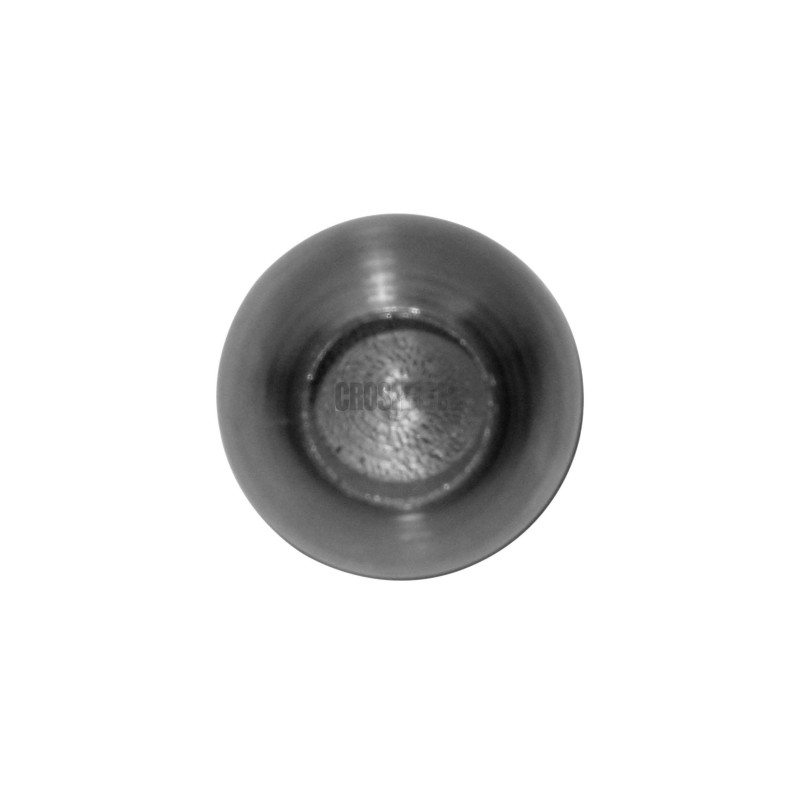

Spheroidal Terminal Ball

Balls:

• 73450 ball, Ø 25 mm, blind hole, for rod Ø 10 mm steel

• 73460 ball, Ø 25 mm, blind hole, for rod Ø 12 mm steel

• 73470 Ball, Ø 25 mm, blind hole, for rod Ø 14 mm steel

Technical Characteristics:

Product Code	73450	73460	73470
Material	S235JR	S235JR	S235JR
Type	massif	massif	massif

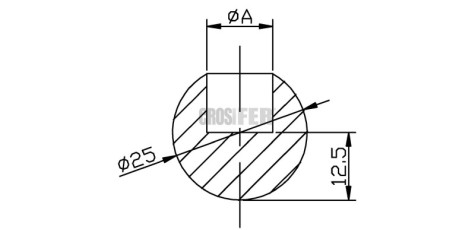

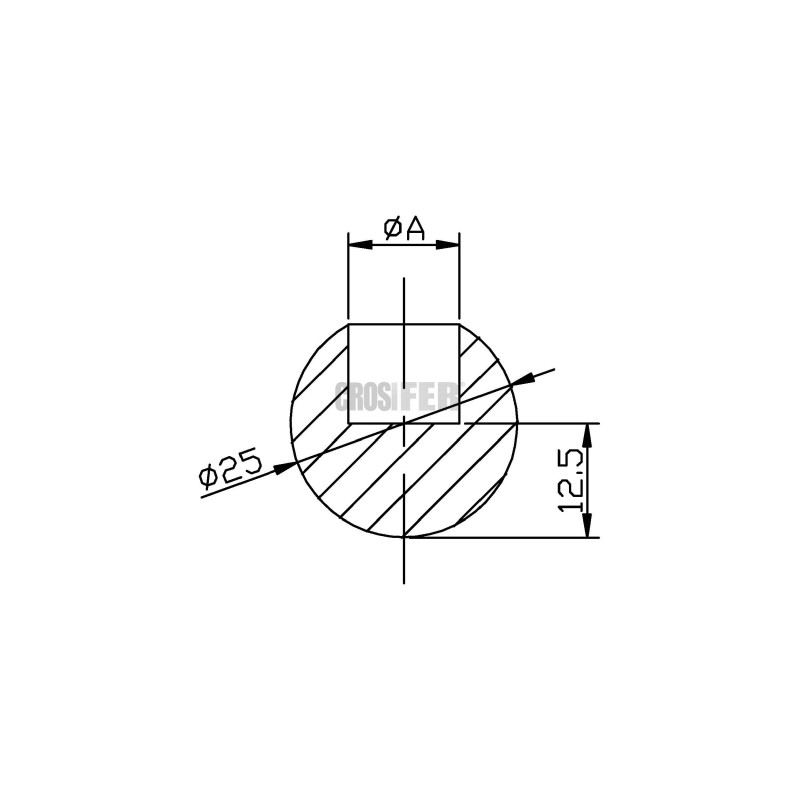

Details	A=10,2; B=11; Ø=25	A=12,2; B=11; Ø=25	A=14,2; B=11; Ø=25
