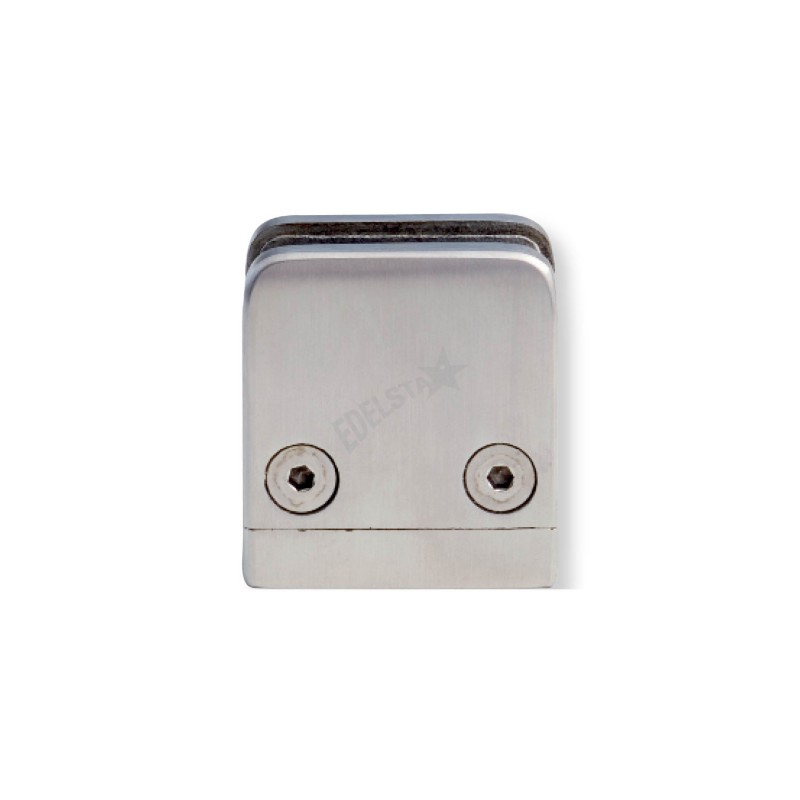

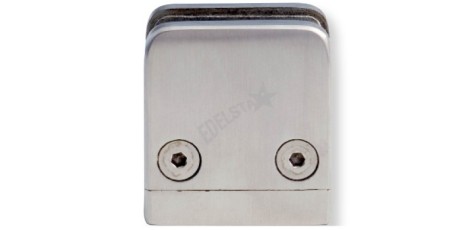

Square Glass Clamp

Glass Clamps:

• 795000 Glass clamp square, connection straight V2A, polished

• 795424 Glass clamp square, tube Ø 42.4 mm V2A, polished

• 795483 Glass clamp square, tube Ø 48.3 mm V2A, polished

Rubber Inserts:

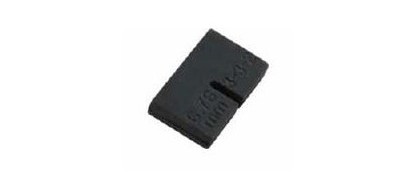

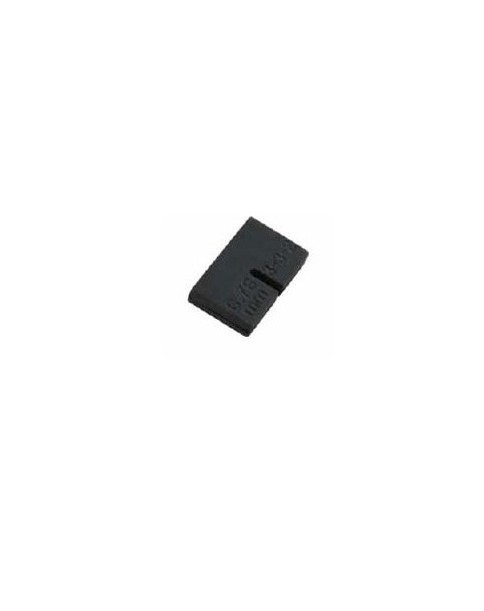

• 981276 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	795000	795424	795483
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Type	square glass clamp	square glass clamp	square glass clamp
Measures	55 x 55 mm	55 x 55 mm	55 x 55 mm
Pipe fitting	Straight	Ø 42,4 mm	Ø 48,3 mm

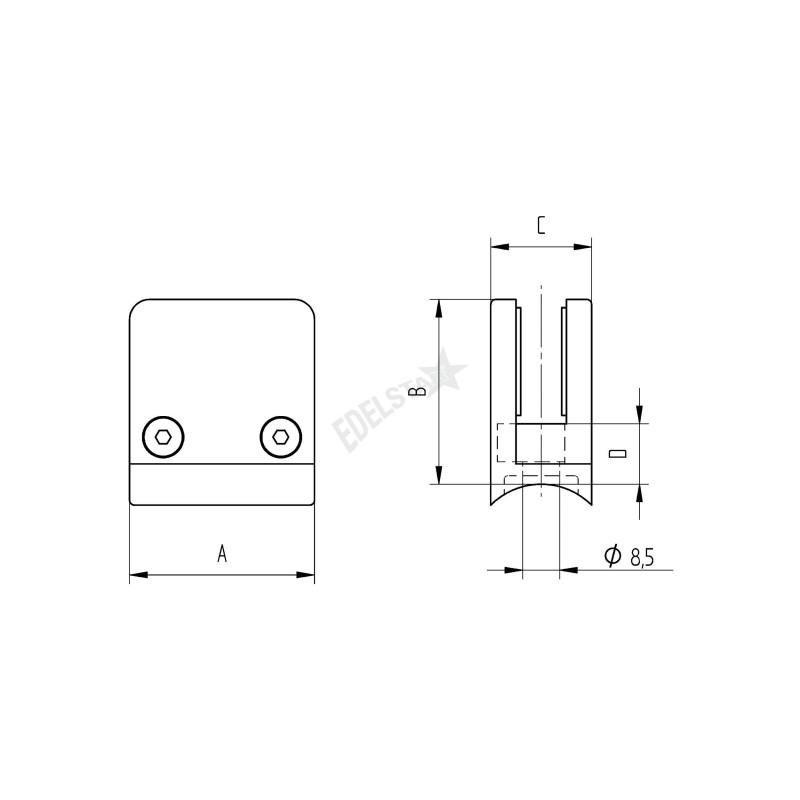

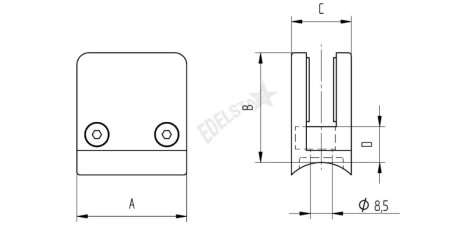

Details	A=55; B=55; C=30; D=18	A=55; B=55; C=30; D=18	A=55; B=55; C=30; D=18
