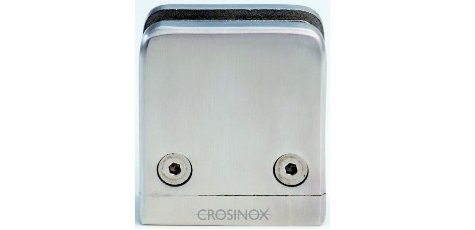

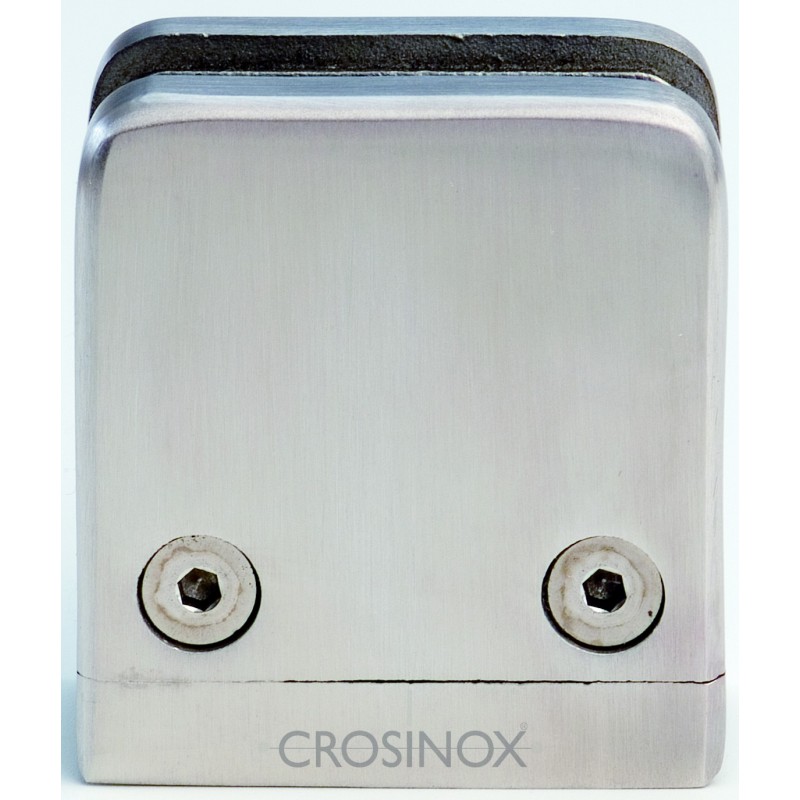

Square Glass Clamp

Glass Clamps:

• CN6110000 Glass clamp square, connection straight V4A, polished

• CN6110424 Glass clamp square, tube Ø 42.4 mm V4A, polished

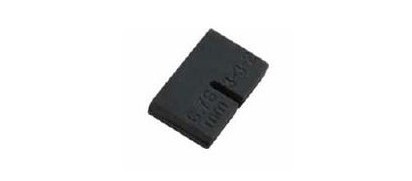

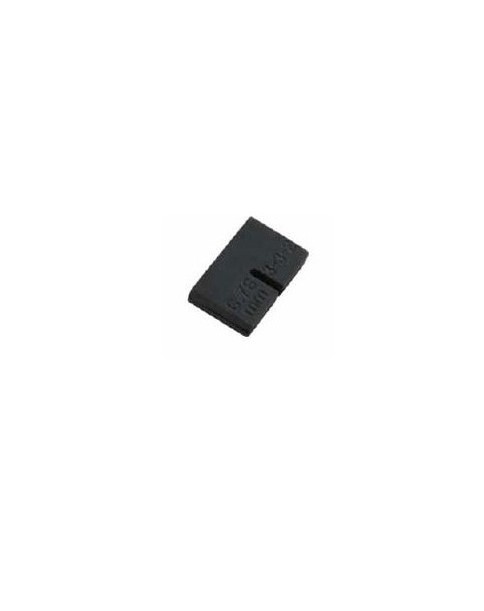

Rubber Inserts:

• CN6400310 Rubber insert, set glass 6,00 mm EPDM
• CN6400320 Rubber insert, set glass 7,52 mm EPDM
• CN6400330 Rubber insert, set glass 8,00 mm EPDM
• CN6400340 Rubber insert, set glass 8,76 mm EPDM
• CN6400350 Rubber insert, set glass 9,52 mm EPDM
• CN6400360 Rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	CN6110000	CN6110424
Material	AISI 316	AISI 316
Surface	satin	satin
Type	square glass clamp	square glass clamp
Measures	53 x 53 mm	53 x 53 mm
Pipe fitting	Straight	Ø 42,4 mm

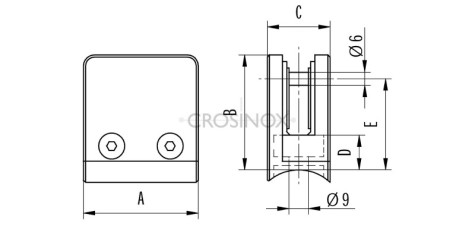

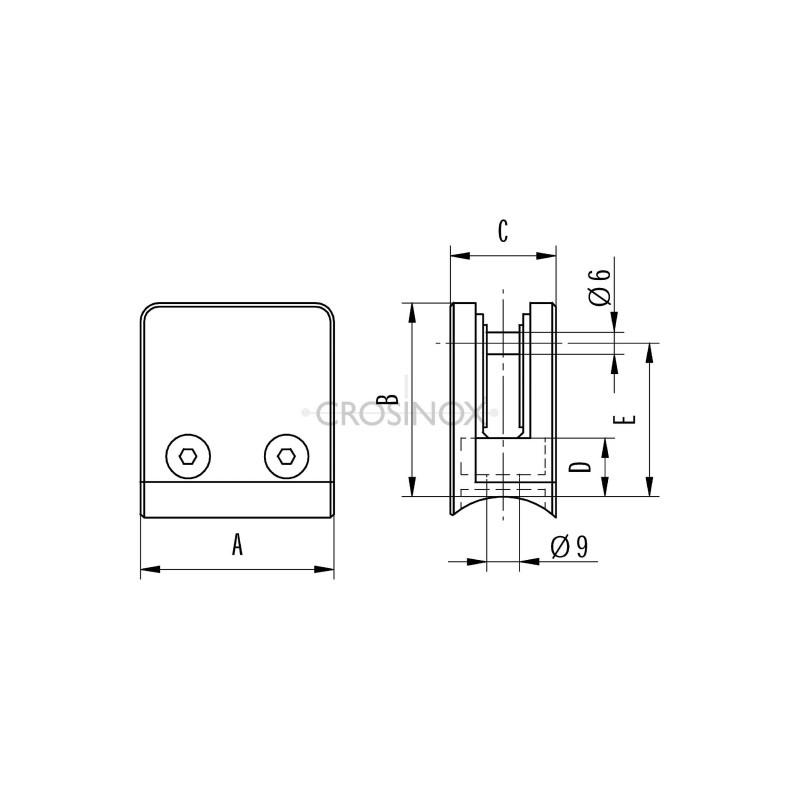

Details	A=53; B=53; C=30; D=16; E=43	A=53; B=53; C=30; D=16; E=43
