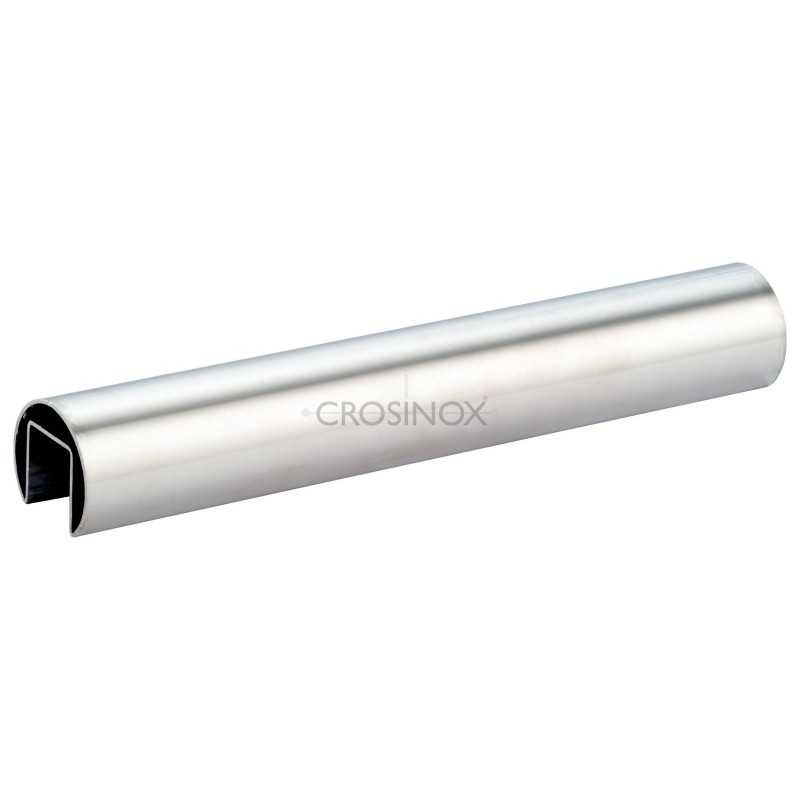

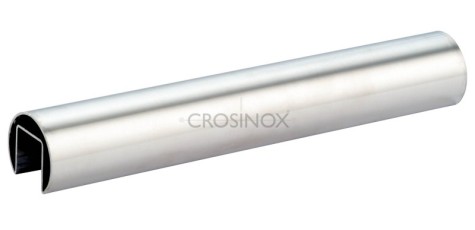

Grooved tube and profile

Tubes:

• CN1000424 Grooved tube, Ø 42.4 x 1.5 mm, groove 24 x 24 mm bendable V2A, polished 24.90 € per meter
• CN1000483 Grooved tube, Ø 48,3 x 1,5 mm, groove 27 x 30 mm bendable V2A, polished 31,55 € per meter
• CN1100424 Grooved tube, Ø 42.4 x 1.5 mm, groove 24 x 24 mm bendable V4A, polished 37.60 € per meter
• CN1100483 Grooved tube, Ø 48.3 x 1.5 mm, groove 27 x 30 mm bendable V4A, polished 44.50 € per meter
• CN2550424 Grooved tube, Ø 42,4 x 1,5 mm, groove 24 x 24 mm bendable V4A, high polished 43,40 € per meter
• CN2550483 Grooved tube, Ø 48,3 x 1,5 mm, groove 27 x 30 mm bendable V4A, high polished 51,05 € per meter

*Tube length--> 6 meters

Technical Characteristics:

Product Code	CN1000424	CN1000483	CN1100424
Material	AISI 304	AISI 304	AISI 316
Surface	satin	satin	satin
Dimensions	42,4 x 1,5 mm	48,3 x 1,5 mm	42,4 x 1,5 mm

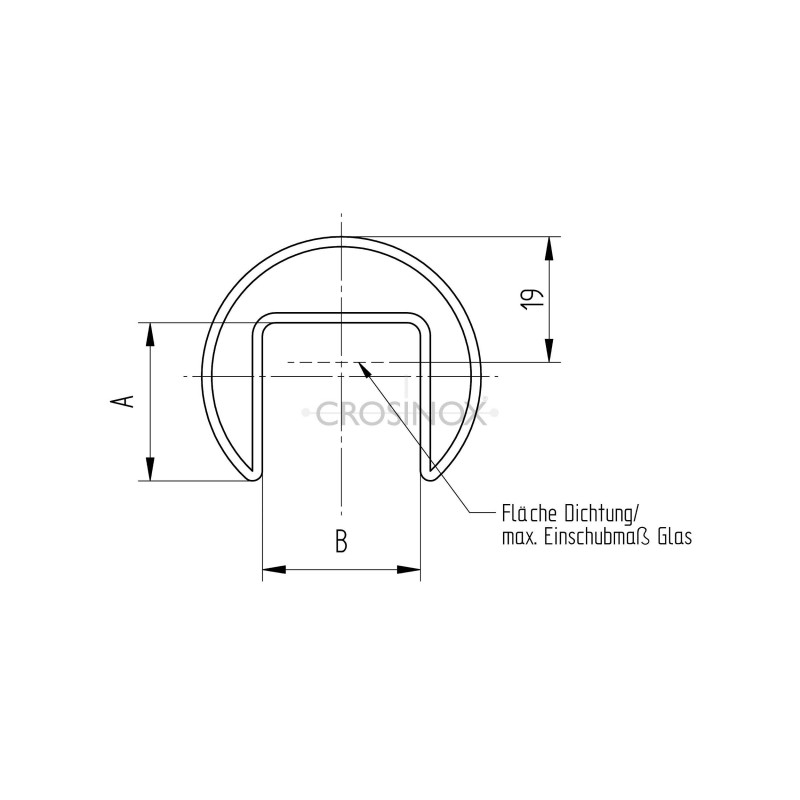

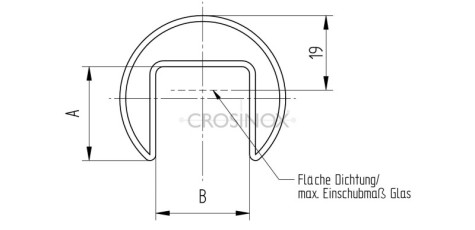

Details	A=24; B=24	A=30; B=27	A=24; B=24









Product Code	CN1100483	CN2550424	CN2550483
Material	AISI 316	AISI 316	AISI 316
Surface	satin	mirror polished	mirror polished
Dimensions	48,3 x 1,5 mm	42,4 x 1,5 mm	48,3 x 1,5 mm
Details	A=30; B=27	A=24; B=24	A=30; B=27

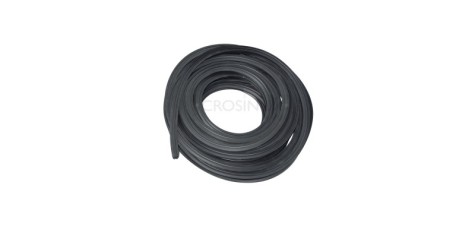

-Sealing rail profile does not inluded

-You can find the suitable sealing rail profile down in this page
