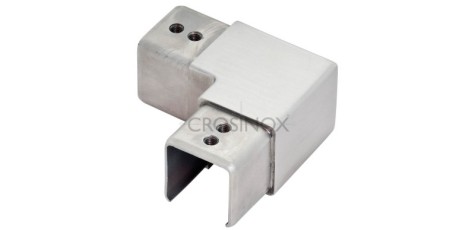

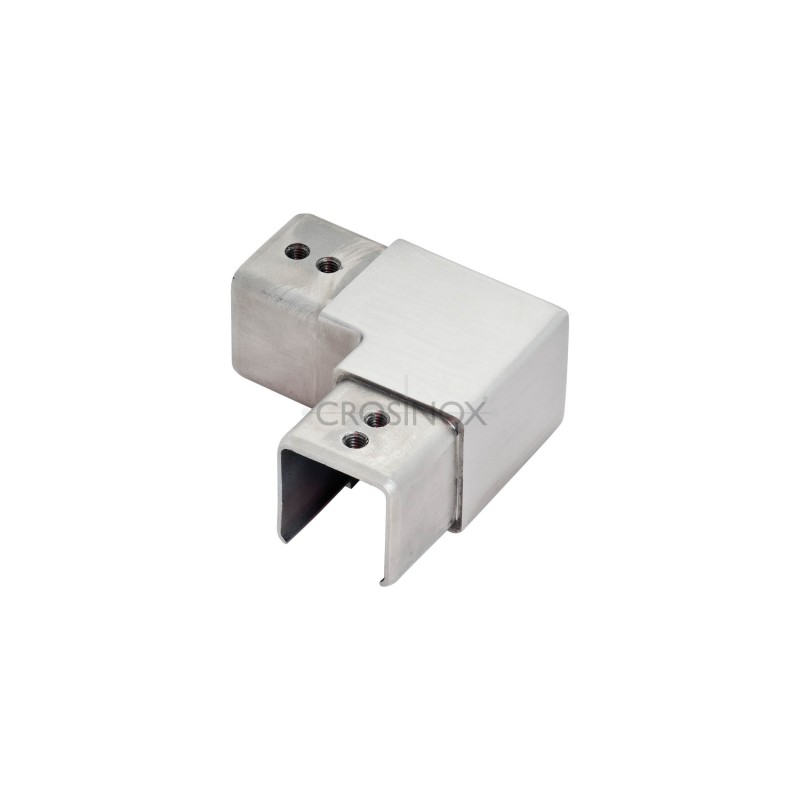

Corner bend

Corners:

• CN4402020 corner bend horizontal, grooved tube 20 x 20 mm V2A, polished
• CN4402525 corner bend horizontal, grooved tube 25 x 25 mm V2A, polished
• CN4403030 corner bend horizontal, grooved tube 30 x 30 mm V2A, polished
• CN4406040 corner bend horizontal, grooved tube 60 x 40 mm V2A, polished
• CN4404040 corner bend horizontal, grooved tube 40 x 40 mm V4A, polished

Technical Characteristics for  CN4402020 ,  CN4402525 , CN4403030 ,  CN4406040 :

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for  CN4404040  :

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

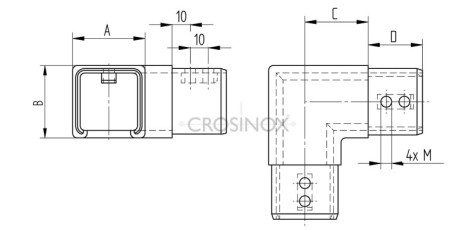

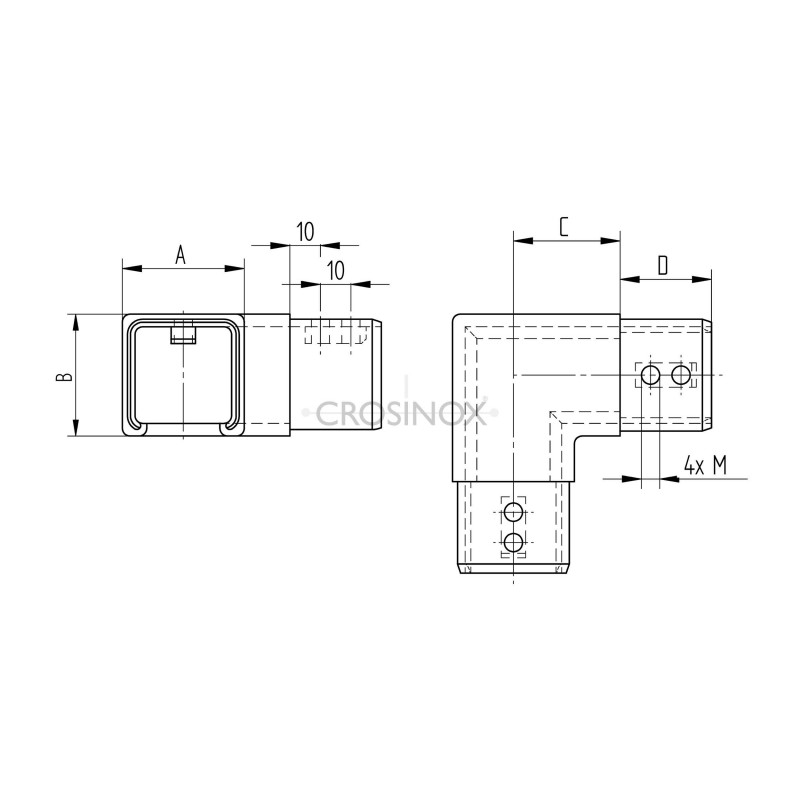

Details:

• CN4402020 -->A=20; B=20; C=25;    D=25; M=5
• CN4402525 -->A=25; B=25; C=27,5; D=25; M=5
• CN4403030 -->A=30; B=30; C=25;    D=30; M=5
• CN4406040 -->A=60; B=40; C=45;    D=30; M=6
• CN4404040 -->A=40; B=40; C=35;    D=30; M=6
