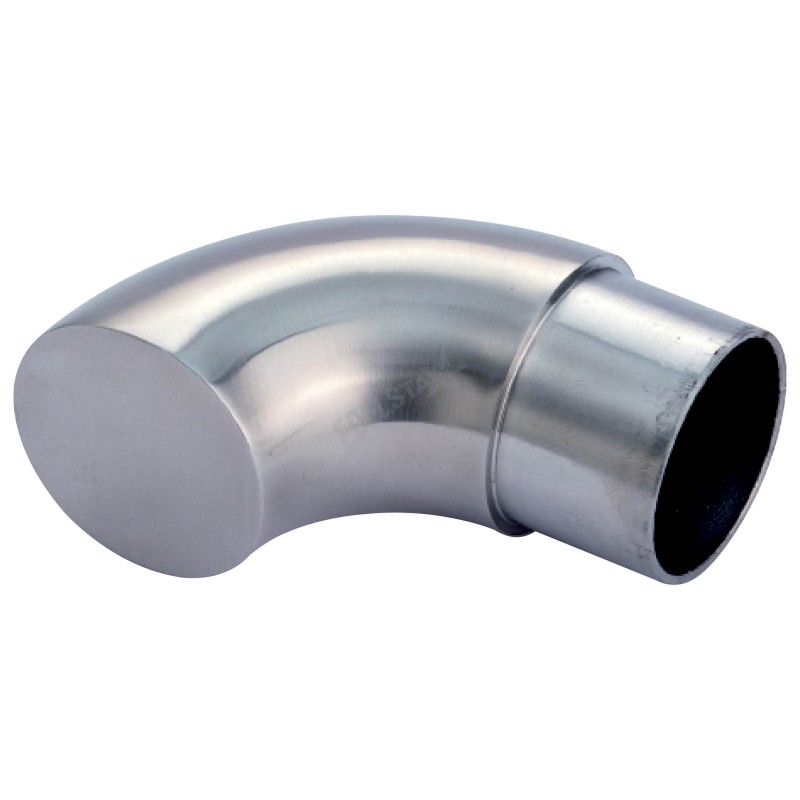

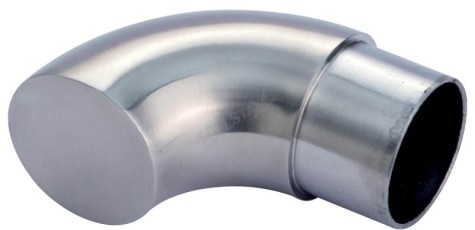

Scroll End

Scroll Ends:

• 045100 end piece, pipe Ø 33.7 mm V2A, polished
• 045200 end piece, pipe Ø 42.4 mm V2A, polished
• CN4590815 end piece, pipe Ø 42,4 mm V2A, polished
• 045300 end piece, pipe Ø 48.3 mm V2A, polished
• CN4590800 end piece, pipe Ø 33,7 mm V4A, polished
• CN4590810 end piece, pipe Ø 40,0 mm V4A, polished
• CN4590820 end piece, pipe Ø 42.4 mm V4A, polished
• CN4590830 end piece, tube Ø 42.4 mm V4A, polished
• CN4590840 end piece, pipe Ø 48.3 mm V4A, polished
• CN4590850 end piece, pipe Ø 48.3 mm V4A, polished
• CN1400400 end piece, long, pipe Ø 42.4 mm V4A, polished

Technical Characteristics for 045100, 045200, CN4590815, 045300 :

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for CN4590800, CN4590810, CN4590820, CN4590830, CN4590840, CN4590850, CN1400400:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

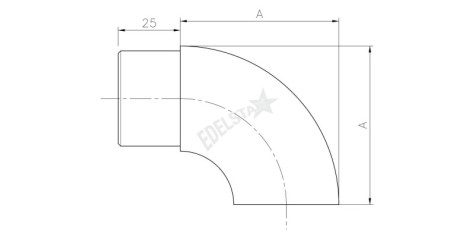

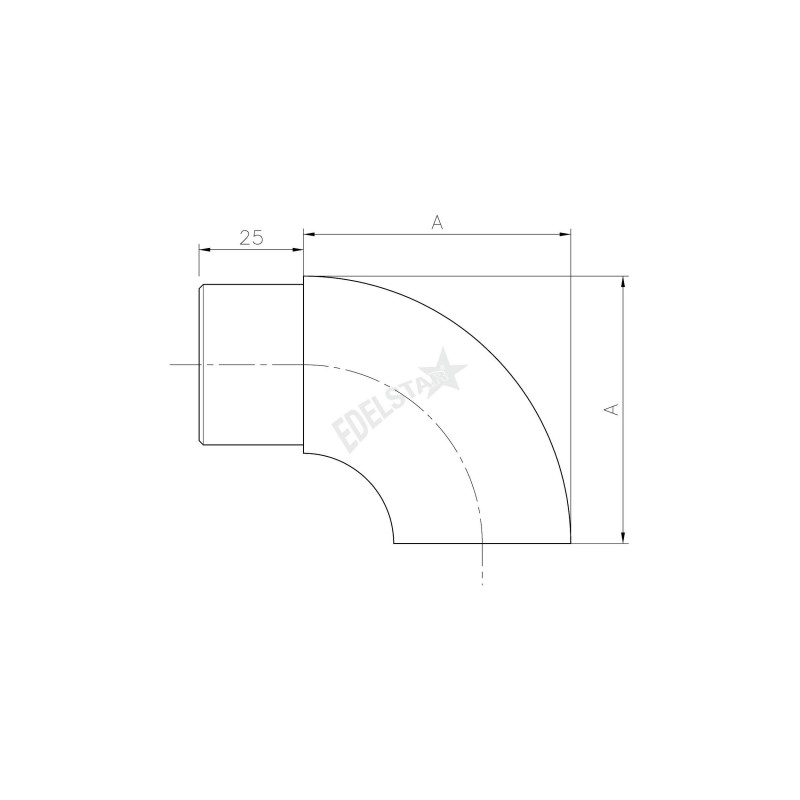

Details:

• 045100        --> A=55
• 045200        --> A=64
• CN4590815 --> A=65
• 045300        --> A=64
• CN4590800 --> A=55
• CN4590810 --> A=65
• CN4590820 --> A=65
• CN4590830 --> A=65
• CN4590840 --> A=74,5
• CN4590850 --> A=74,5
• CN1400400 --> A=92
