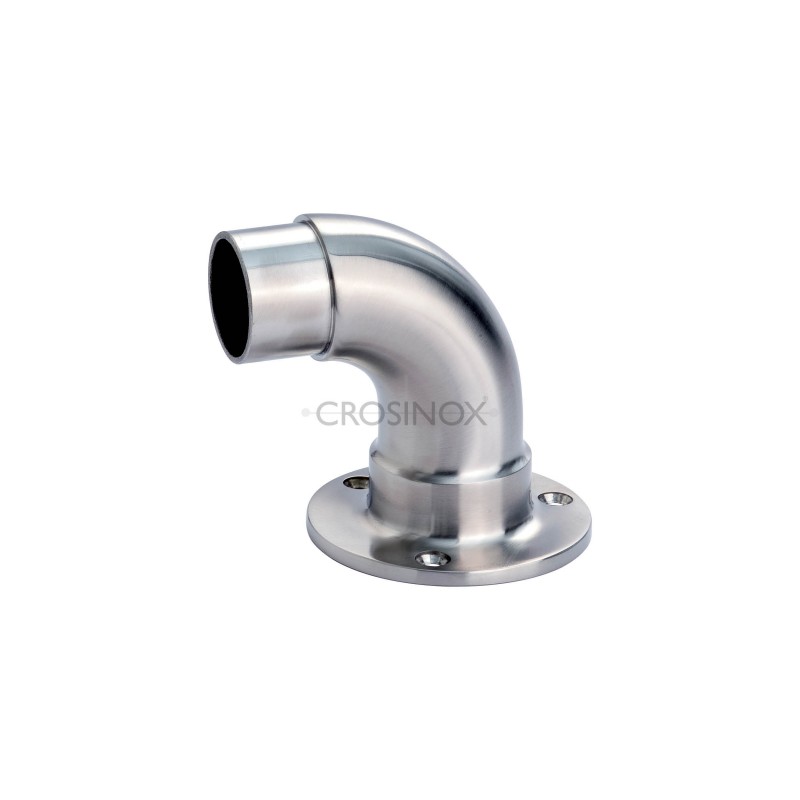

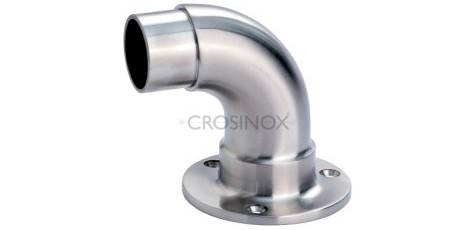

Round arch with flange

Round arches with flange:

• CN4580130 Round arch with flange, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4580140 Round arch with flange, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4580150 Round arch with flange, tube Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for  CN1200100, CN1200110:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

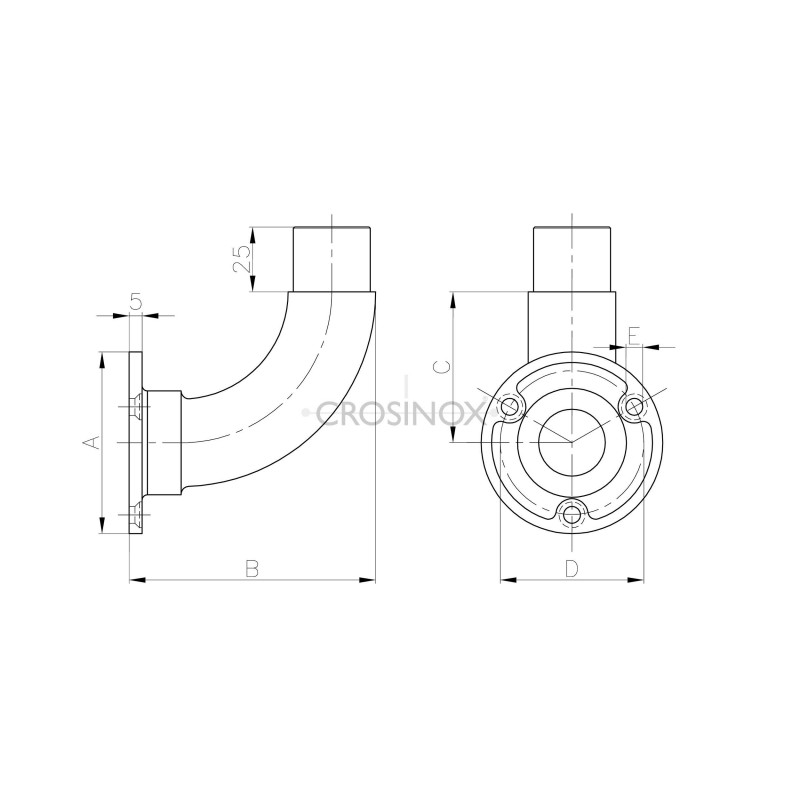

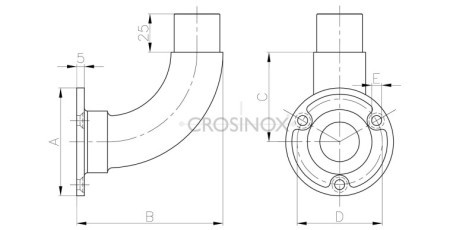

Details:

• CN4580130 --> A=Ø 71; B=94; C=38; D=Ø 56; E=Ø 6.5
• CN4580140 --> A=Ø 85; B=103; C=44; D=Ø 68; E=Ø 6.5
• CN4580150 --> A=Ø 95; B=109; C=50; D=Ø 75; E=Ø 8.3
