Point Holder

Point Holders:

• 515000 point holder, connection straight glass -18 mm V2A, polished

• 516000 point holder, connection straight glass -18 mm V2A, polished

• 517000 point holder, connection straight glass -18 mm V2A, polished

• 517424 point holder, tube Ø 42.4 mm glass -18 mm V2A, polished

• 518000 point holder, connection straight glass -18 mm V2A, polished

• 518424 point holder, tube Ø 42.4 mm glass -18 mm V2A, polished

Technical Characteristics:

Product Code	515000	516000	517000	517424	518000	518424
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin	satin	satin
Type	point holder	point holder	point holder	point holder	point holder	point holder
Glass Thickness	- 18 mm	- 18 mm	- 18 mm	- 18 mm	- 18 mm	- 18 mm
Pipe fitting	straight	straight	straight	Ø 42,4 mm	straight	Ø 42,4 mm

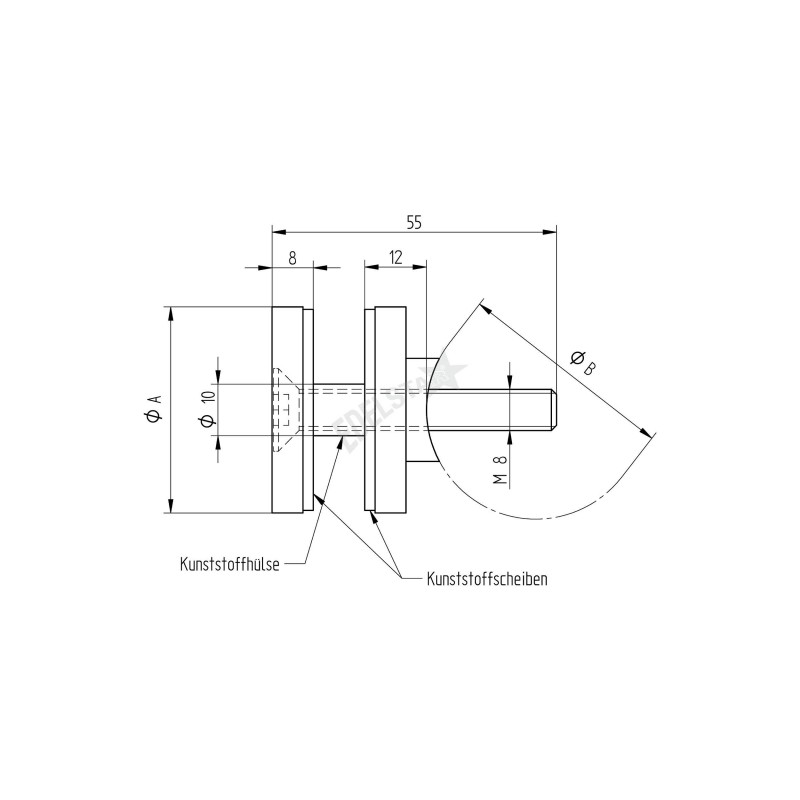

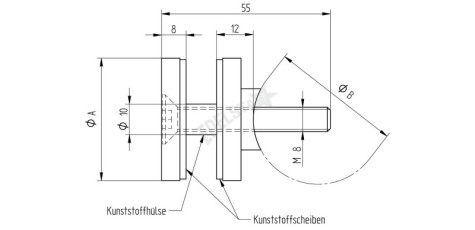

Details	A=25	A=30	A=40	A=40	A=50	A=50
