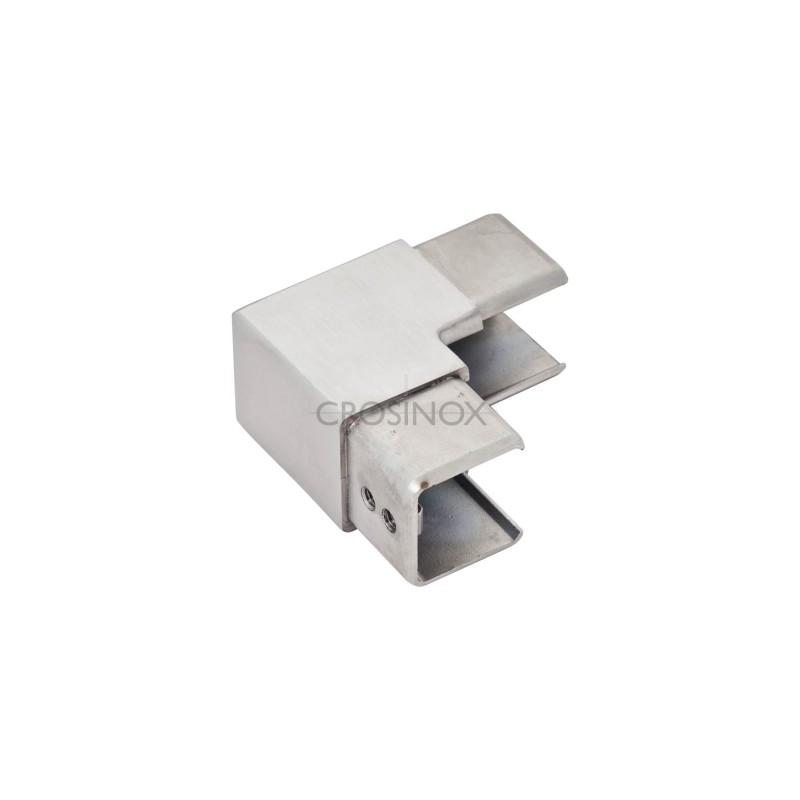

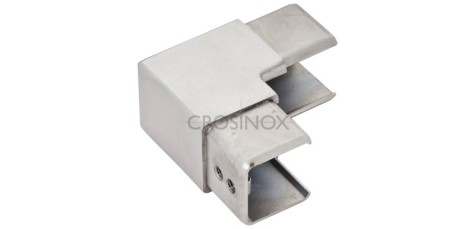

Corner arch vertical

Corners:

• CN4502020 Corner arch vertical, grooved tube 20 x 20 mm V2A, polished
• CN4502525 Corner arch vertical, grooved pipe 25 x 25 mm V2A, polished
• CN4503030 Corner arch vertical, grooved pipe 30 x 30 mm V2A, polished
• CN4506040 Corner arch vertical, grooved pipe 60 x 40 mm V2A, polished
• CN4504040 Corner arch vertical, grooved pipe 40 x 40 mm V4A, polished

Technical Characteristics for  CN4502020 ,  CN4502525 , CN4503030 ,  CN4506040 :

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for  CN4504040 :

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

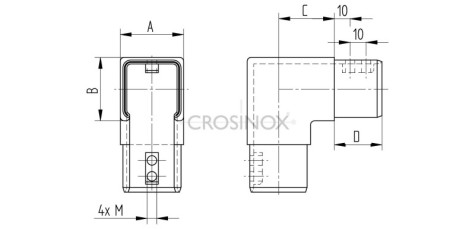

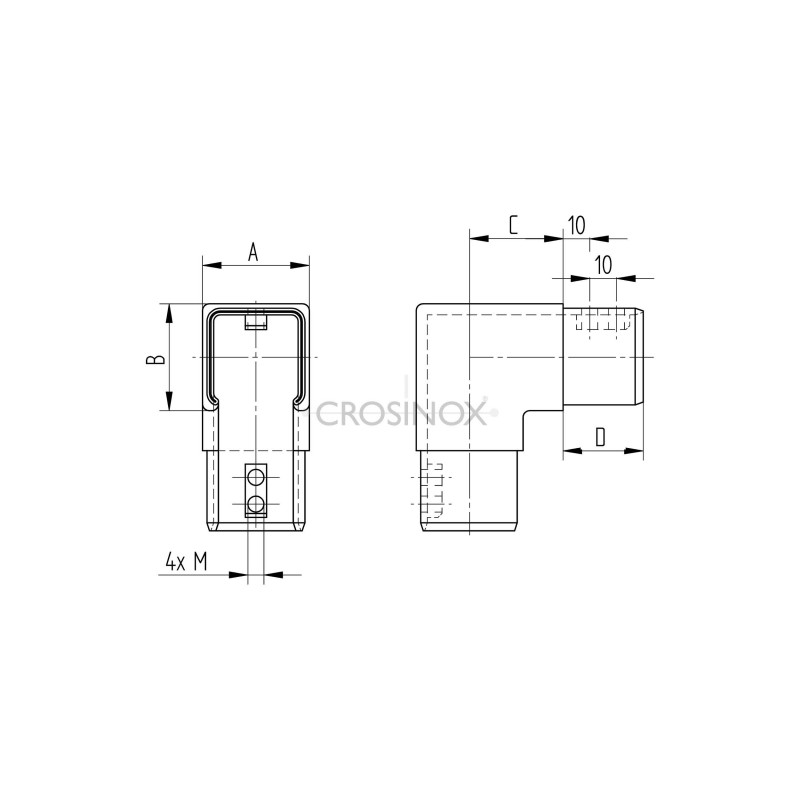

Details:

• CN4502020 -->A=20; B=20; C=25; D=25; M=5
• CN4502525 -->A=25; B=25; C=27,5; D=25; M=5
• CN4503030 -->A=30; B=30; C=25; D=30; M=5
• CN4506040 -->A=60; B=40; C=45; D=30; M=6
• CN4504040 -->A=40; B=40; C=35; D=30; M=6
