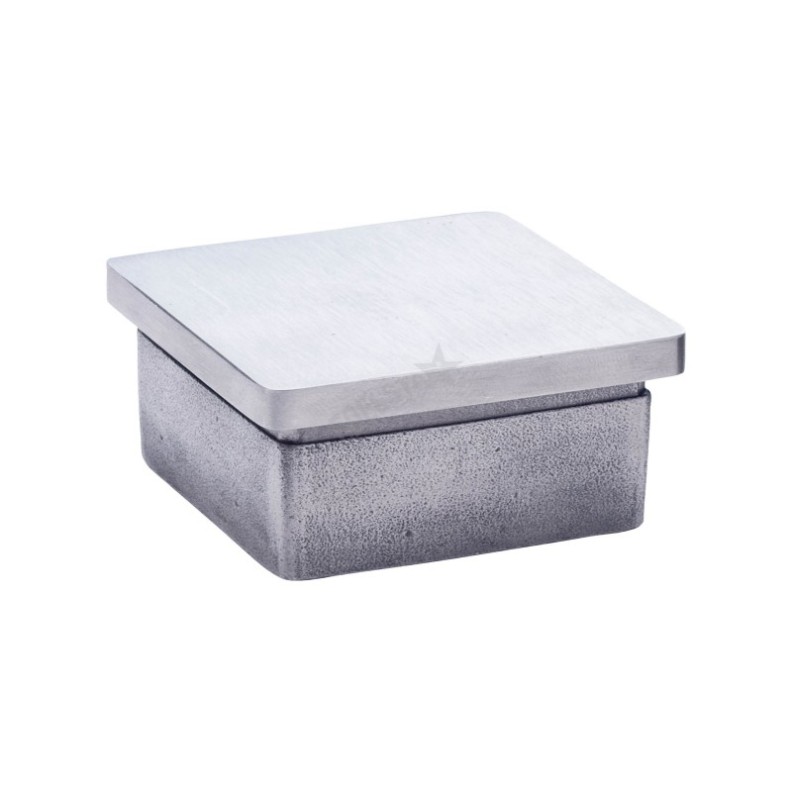

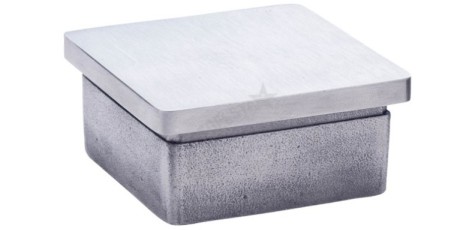

Square Cap - Terminal

Caps:

• 240310 Plug-in cap, tube 40 x 20 x 2,0 mm hollow V2A, polished

• 240330 Plug-in cap, tube 50 x 30 x 2,0 mm hollow V2A, polished

• 240340 Plug-in cap, tube 60 x 40 x 2,0 mm hollow V2A, polished

• 245325 Plug-in cap, tube 25 x 25 x 2,0 mm hollow V2A, polished

• 245330 Plug-in cap, tube 30 x 30 x 2,0 mm hollow V2A, polished

• 245340 Plug-in cap, tube 40 x 40 x 2,0 mm hollow V2A, polished

• 245360 Plug-in cap, tube 60 x 60 x 2,0 mm hollow V2A, polished

Technical Characteristics:

Product Code	240310	240330	240340
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	40 x 20 x 2,0 mm	50 x 30 x 2,0 mm	60 x 40 x 2,0 mm
Type	empty	empty	empty

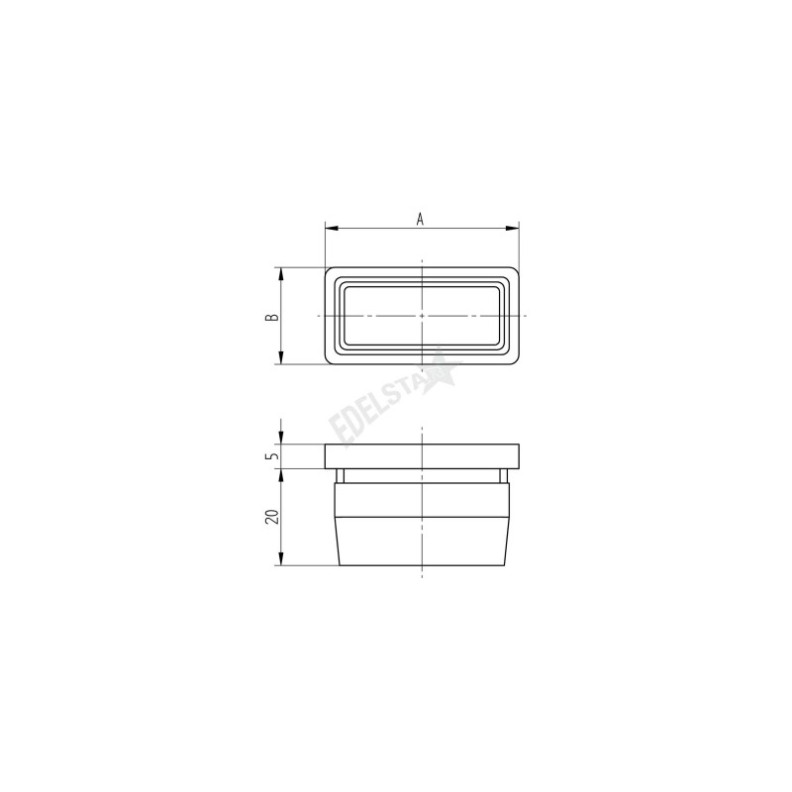

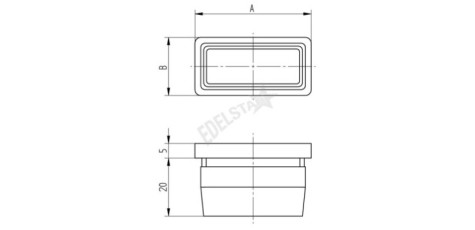

Details	A=40; B=20	A=50; B=30	A=60; B=40







Product Code	245325	245330	245340	245360
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Dimensions	25 x 25 x 2,0 mm	30 x 30 x 2,0 mm	40 x 40 x 2,0 mm	60 x 60 x 2,0 mm
Type	empty	empty	empty	empty
Details	A=25; B=25	A=30; B=30	A=40; B=40	A=60; B=60
