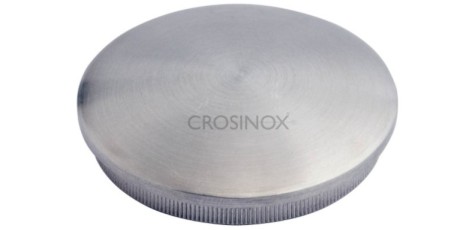

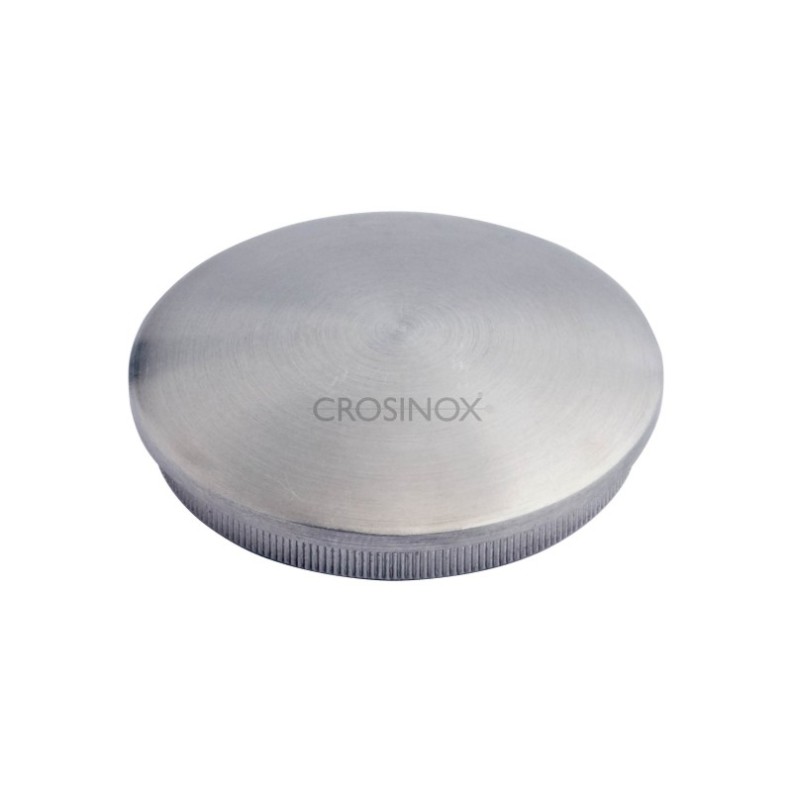

Round Cap - Terminal

Caps:

• CN3012010 cap with knurl, tube Ø 12,0 x 1,0 mm solid V2A, polished

• CN3016010 cap with knurl, tube Ø 16,0 x 1,0 mm solid V2A, polished

• CN3021320 cap with knurl, tube Ø 21,3 x 2,0 mm solid V2A, polished

• CN3026920 cap with knurl, tube Ø 26,9 x 2,0 mm solid V2A, polished

• CN3030015 cap with knurl, tube Ø 30,0 x 1,5 mm solid V2A, polished

• CN3033720 cap with knurl, tube Ø 33,7 x 2,0 mm solid V2A, polished

• CN3033726 cap with knurl, tube Ø 33,7 x 2,6 mm solid V2A, polished

• CN3038015 cap with knurl, tube Ø 38,0 x 1,5 mm solid V2A, polished

• CN3040015 cap with knurl, tube Ø 40,0 x 1,5 mm solid V2A, polished

• CN3040020 cap with knurl, tube Ø 40,0 x 1,5 mm solid V2A, polished

• CN3042420 cap with knurl, tube Ø 42,4 x 2,0 mm solid V2A, polished

• CN3042426 cap with knurl, tube Ø 42,4 x 2,6 mm solid V2A, polished

• CN3048320 cap with knurl, tube Ø 48,3 x 2,0 mm solid V2A, polished

• CN3048326 cap with knurl, tube Ø 48.3 x 2.6 mm solid V2A, polished

• CN3060320 cap with knurl, tube Ø 60.3 x 2.0 mm solid V2A, polished

• CN3060326 cap with knurl, tube Ø 60.3 x 2.6 mm solid V2A, polished

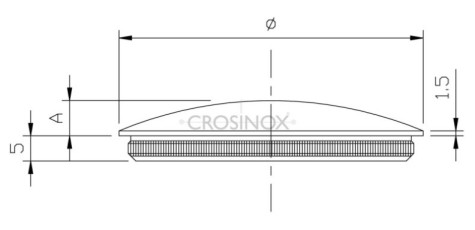

Technical Characteristics:

Product Code	CN3012010	CN3016010	CN3021320	CN3026920
Material	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 12,0 x 1,0 mm	Ø 16,0 x 1,0 mm	Ø 21,3 x 2,0 mm	Ø 26,9 x 2,0 mm
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif
Details	A=4	A=4	A=4	A=5









Product Code	CN3030015	CN3033720	CN3033726	CN3038015
Material	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 30,0 x 1,5 mm	Ø 33,7 x 2,0 mm	Ø 33,7 x 2,6 mm	Ø 38,1 x 1,5 mm
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif
Details	A=6	A=6	A=6	A=6









Product Code	CN3040015	CN3040020	CN3042420	CN3042426
Material	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 40,0 x 1,5 mm	Ø 40,0 x 2,0 mm	Ø 42,4 x 2,0 mm	Ø 42,4 x 2,6 mm
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif
Details	A=6	A=6	A=6	A=6







Product Code	CN3048320	CN3048326	CN3060320	CN3060326
Material	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 48,3 x 2,0 mm	Ø 48,3 x 2,6 mm	Ø 60,3 x 2,0 mm	Ø 60,3 x 2,6 mm
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif
Details	A=7	A=7	A=7	A=7
