Corner Glass Clamp

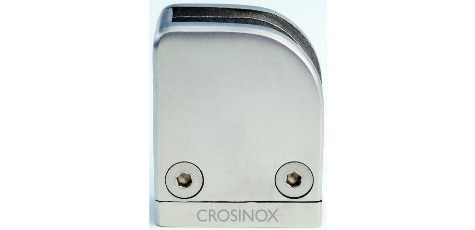

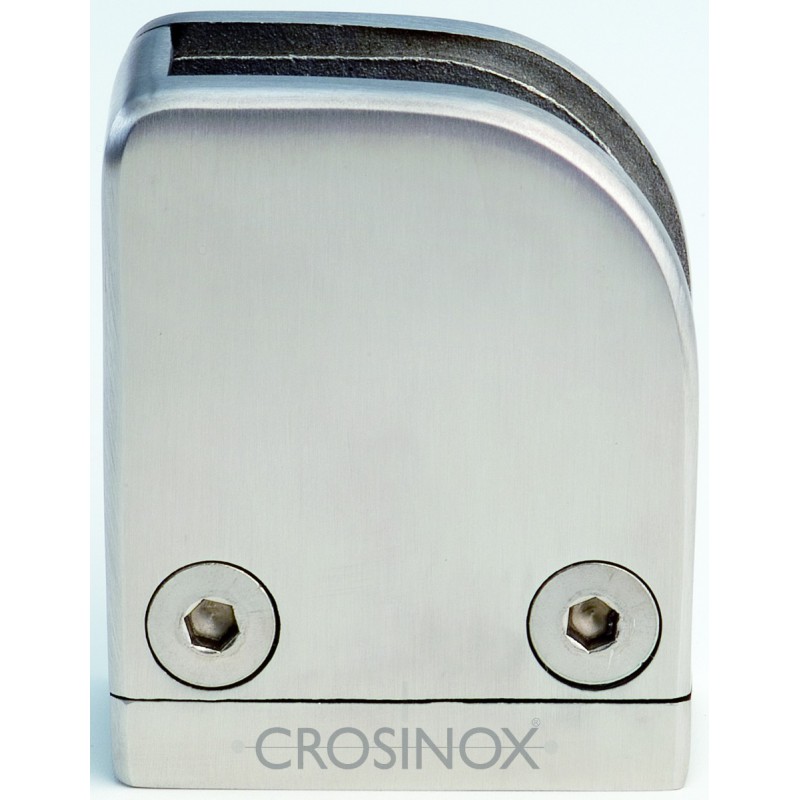

Glass Clamps:

• CN6171424 Glass clamp corner, pipe Ø 42,4 / left V4A, polished

• CN6172424 Glass clamp corner, pipe Ø 42.4 / right V4A, polished

• CN6173483 Glass clamp corner, tube Ø 48.3 / left V4A, polished

• CN6174483 Glass clamp corner, pipe Ø 48.3 / right V4A, polished

• CN6175000 Glass clamp corner, conn. straight / left V4A, polished

• CN6176000 Glass clamp corner, conn. straight / right V4A, polished

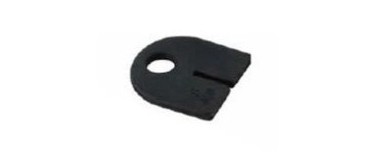

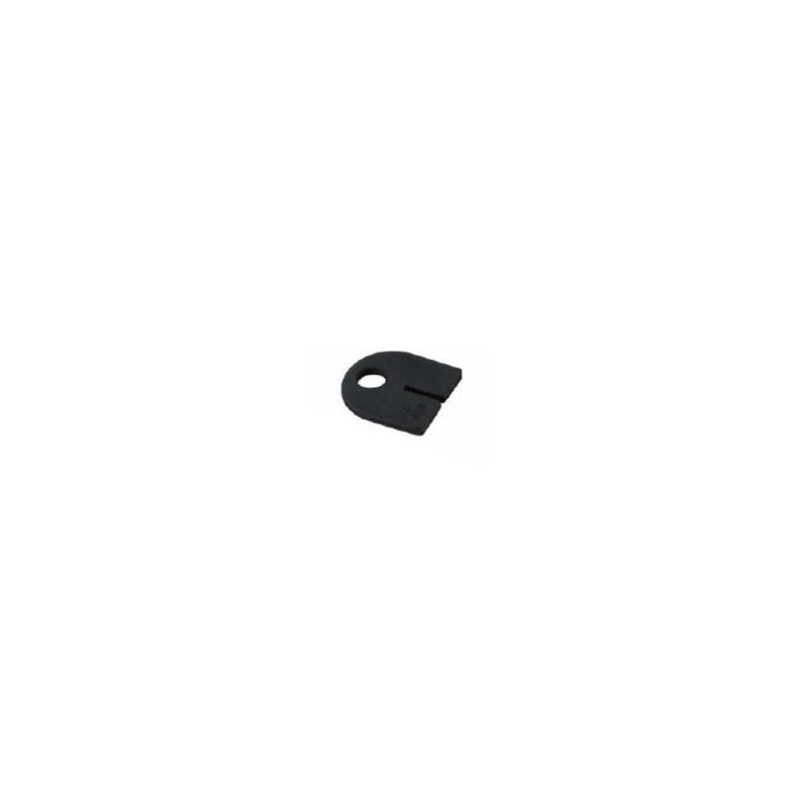

Rubber Inserts:

• CN6450410 Rubber insert, set glass 6,00 mm EPDM
• CN6450420 Rubber insert, set glass 7,52 mm EPDM
• CN6450430 Rubber insert, set glass 8,00 mm EPDM
• CN6450440 Rubber insert, set glass 8,76 mm EPDM
• CN6450450 Rubber insert, set glass 9,52 mm EPDM
• CN6450460 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6171424	CN6172424	CN6173483	CN6174483	CN6175000	CN6176000
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	Satin	Satin	Satin	Satin	Satin	Satin
Type	Corner	Corner	Corner	Corner	Corner	Corner
Measures	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm
Pipe fitting	42.4 mm / left	42.4 mm / right	48.3 mm / left	48.3 mm / right	straight / left	straight / right

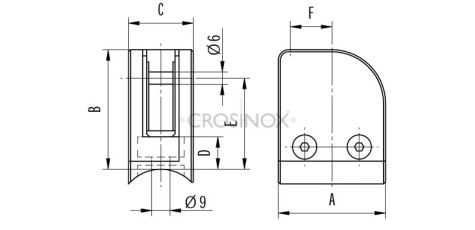

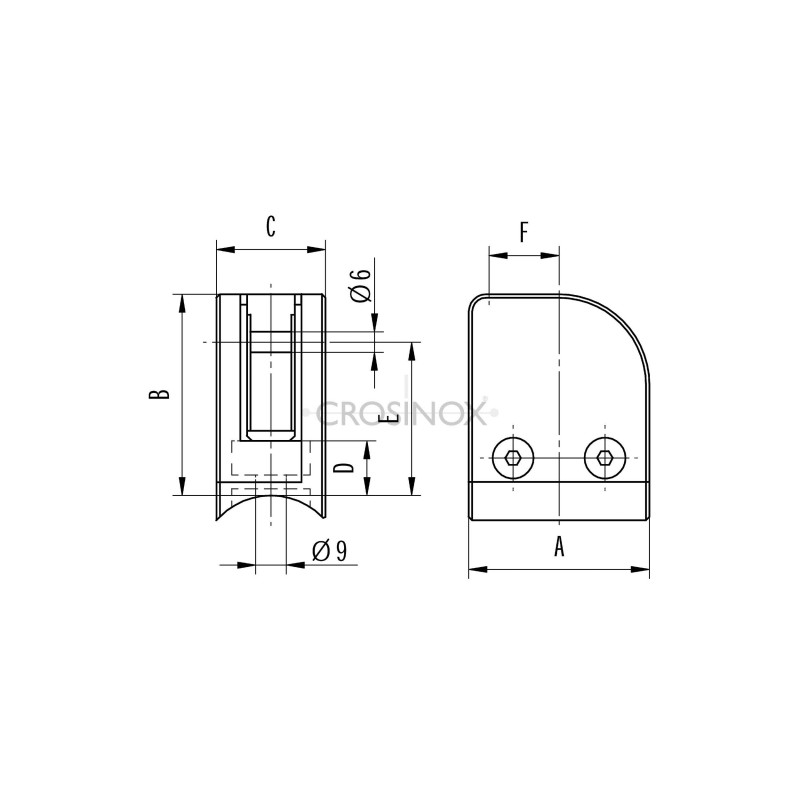

Details	A=53; B=60; C=28; D=16; E=45; F=19,5	A=53; B=60; C=28; D=16; E=45; F=19,5	A=53; B=60; C=28; D=16; E=45; F=19,5	A=53; B=60; C=28; D=16; E=45; F=19,5	A=53; B=60; C=28; D=16; E=45; F=19,5	A=53; B=60; C=28; D=16; E=45; F=19,5
