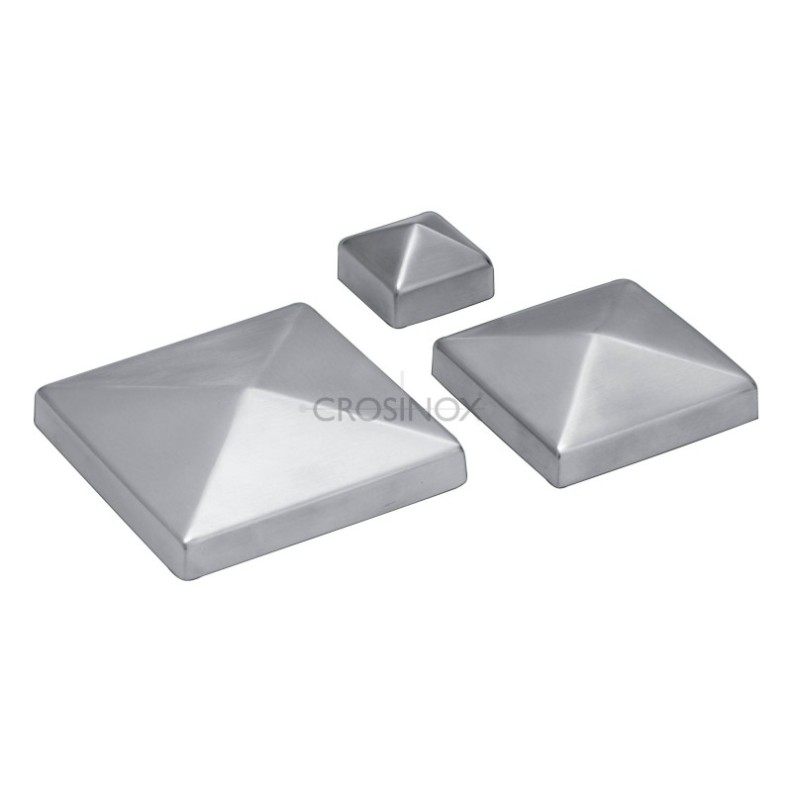

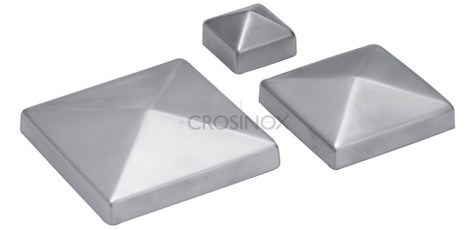

Square Cap - Terminal

Caps:

• CN3500140 cap pyramid, tube 40 x 40 mm V2A, polished

• CN3500150 cap pyramid, tube 50 x 50 mm V2A, polished

• CN3500160 cap pyramid, tube 60 x 60 mm V2A, polished

• CN3500180 cap pyramid, tube 80 x 80 mm V2A, polished

• CN3501000 cap pyramid, tube 100 x 100 mm V2A, polished

• CN3501200 cap pyramid, tube 120 x 120 mm V2A, polished

• CN3501210 cap pyramid, tube 150 x 150 mm V2A, polished

• CN3550140 cap pyramid, tube 40 x 40 mm V4A, polished

• CN3550150 cap pyramid, tube 50 x 50 mm V4A, polished

• CN3550160 cap pyramid, tube 60 x 60 mm V4A, polished

• CN3550170 cap pyramid, tube 70 x 70 mm V4A, polished

• CN3550180 cap pyramid, tube 80 x 80 mm V4A, polished

• CN3550190 cap pyramid, tube 90 x 90 mm V4A, polished

• CN3551000 cap pyramid, tube 100 x 100 mm V4A, polished

Technical Characteristics:

Product Code	CN3500140	CN3500150	CN3500160
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	40 x 20 mm	50 x 50 mm	60 x 60 mm

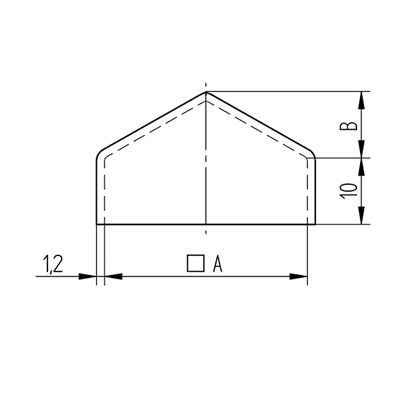

Details	A=40; B=10	A=50; B=10	A=60; B=10







Product Code	CN3500180	CN3501000	CN3501200	CN3501210
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Dimensions	25 x 25 mm	100 x 100 mm	120 x 120 mm	150 x 150 mm
Details	A=25; B=25	A=100; B=14	A=120; B=14	A=150; B=14









Product Code	CN3550140	CN3550150	CN3550160
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Dimensions	40 x 40 x mm	50 x 50 mm	50 x 50 mm
Details	A=40; B=10	A=50; B=10	A=60; B=10







Product Code	CN3550170	CN3550180	CN3550190	CN3551000
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Dimensions	70 x70 mm	80 x80 mm	90 x 90 mm	100 x 100 mm
Details	A=70; B=10	A=80; B=10	A=90; B=10	A=100; B=14
