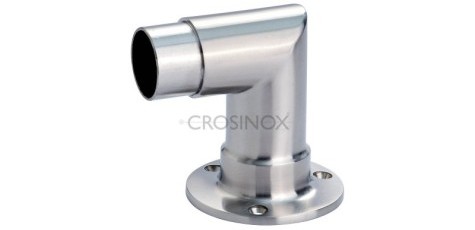

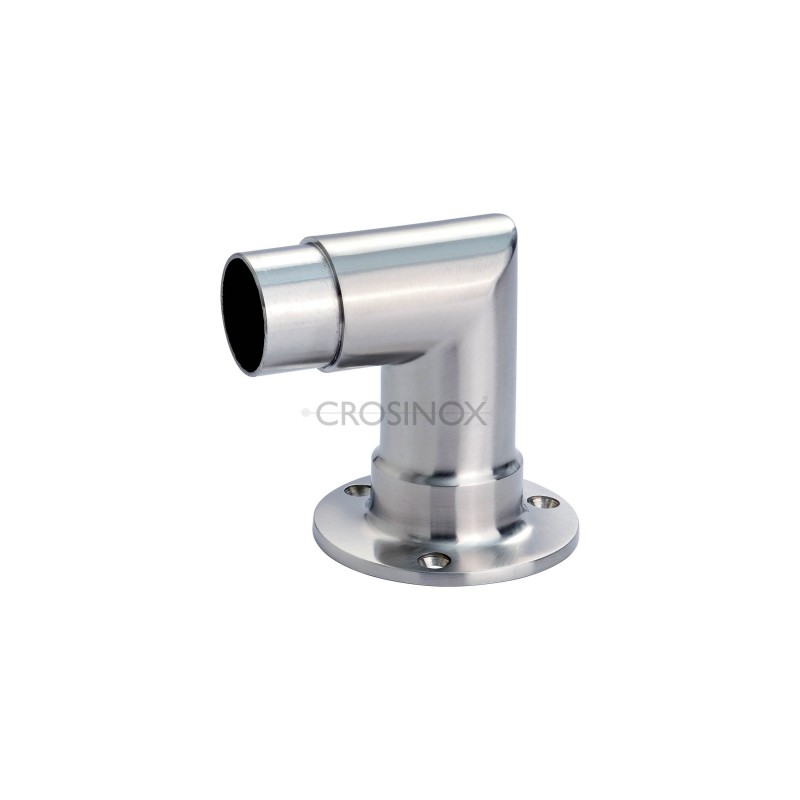

Round arches with flange:
- CN4590230 corner bend with flange, tube Ø 33,7 mm V4A, polished
- CN4590240 corner bend with flange, tube Ø 42.4 mm V4A, polished
- CN4590250 corner bend with flange, tube Ø 48.3 mm V4A, polished
Technical Characteristics:
- Material: AISI 316
- FInish: Satin
- Dimensions: see above

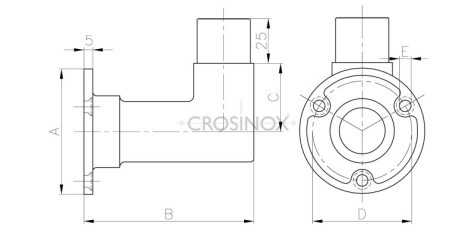

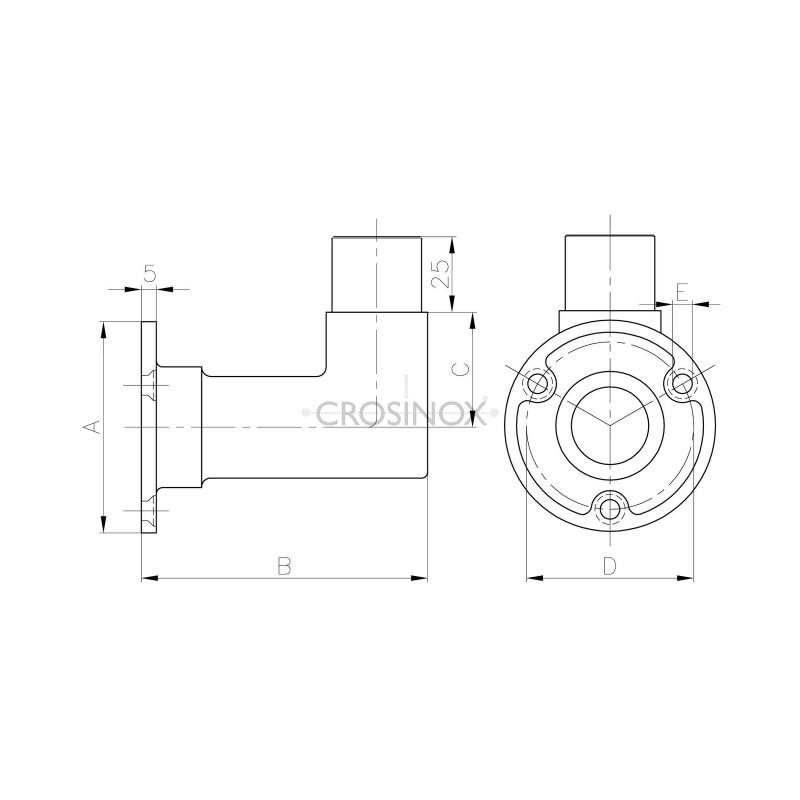

Details:
- CN4590230 --> A=Ø 71; B=94; C=38; D=Ø 56; E=Ø 6.5
- CN4590240 --> A=Ø 85; B=103; C=44; D=Ø 68; E=Ø 6.5
- CN4590250 --> A=Ø 95; B=108; C=42; D=Ø 75; E=Ø 8.3
