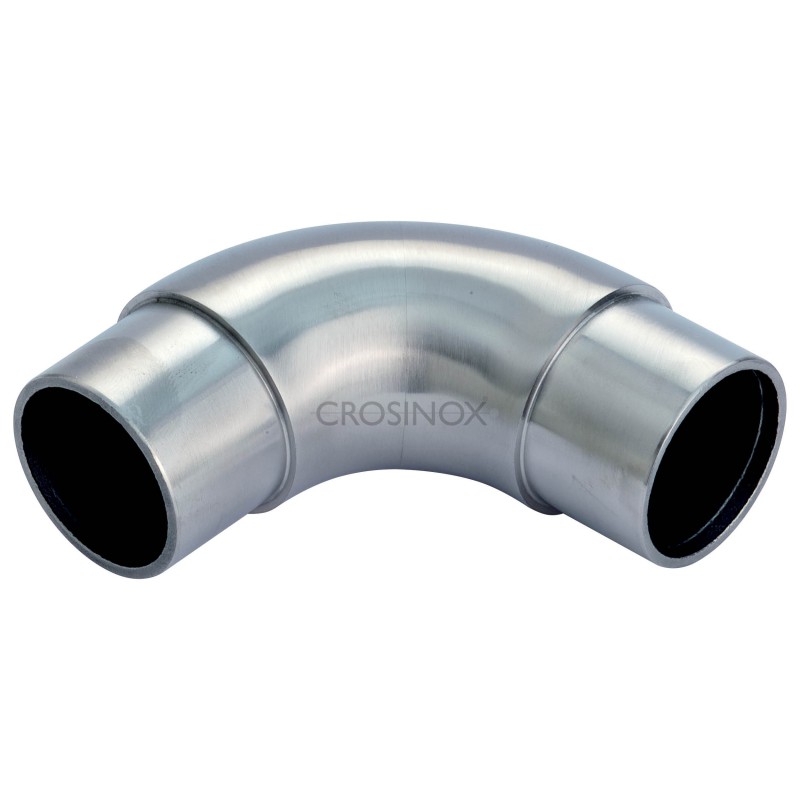

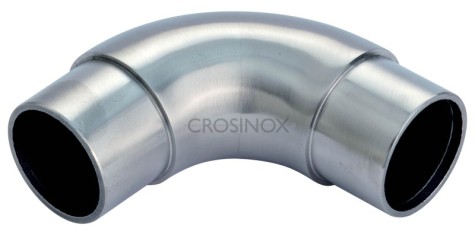

Soft Mitred Elbow

Elbows:

• CN4590325 round arch 90 °, tube Ø 42.4 x 2.0 mm V2A, polished
• CN4590300 round arch 90 °, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4590320 round arch 90 °, tube Ø 40,0 x 2,0 mm V4A, polished
• CN4590330 round arch 90 °, tube Ø 42.4 x 2.0 mm V4A, polished
• CN4590350 round arch 90 °, tube Ø 42,4 x 2,6 mm V4A, polished
• CN4590360 round arch 90 °, tube Ø 48,3 x 2,0 mm V4A, polished
• CN4590370 round arch 90 °, tube Ø 48,3 x 2,6 mm V4A, polished
• CN4590380 round arch 90 °, tube Ø 60.3 x 2.0 mm V4A, polished

Technical Characteristics for CN4590325 :

• Material: AISI 304
• FInish: satin
• Dimensions: see above

Technical Characteristics for CN4590300, CN4590320, CN4590330, CN4590350, CN4590360, CN4590370, CN4590380:

• Material: AISI 316
• FInish: satin
• Dimensions: see above

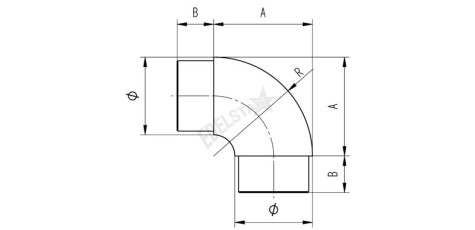

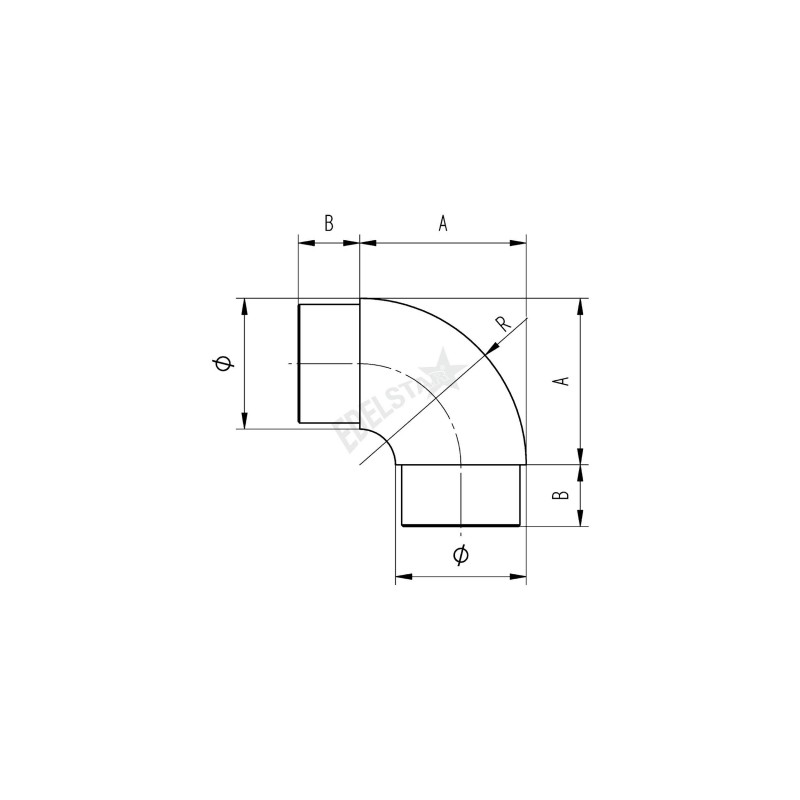

Details:

• CN4590325 --> A=65; B=25; R=61
• CN4590300 --> A=55; B=25; R=51
• CN4590320 --> A=65; B=25; R=51
• CN4590330 --> A=65; B=25; R=61
• CN4590350 --> A=65; B=25; R=61
• CN4590360 --> A=75; B=25; R=71
• CN4590370 --> A=75; B=25; R=71
• CN4590380 --> A=90; B=25; R=86
