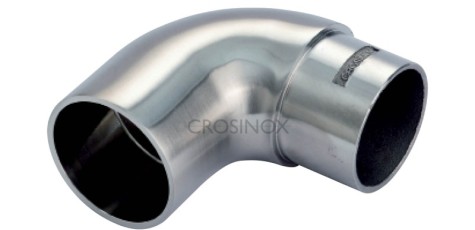

Soft Mitred Elbow

Elbows:

• CN4594100 corner elbow 90 °, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4594200 corner elbow 90 °, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4594300 corner elbow 90 °, tube Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics:

• Material: AISI 316
• FInish: satin
• Dimensions: see above

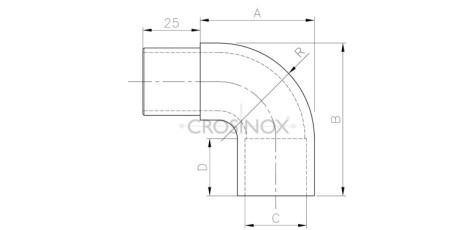

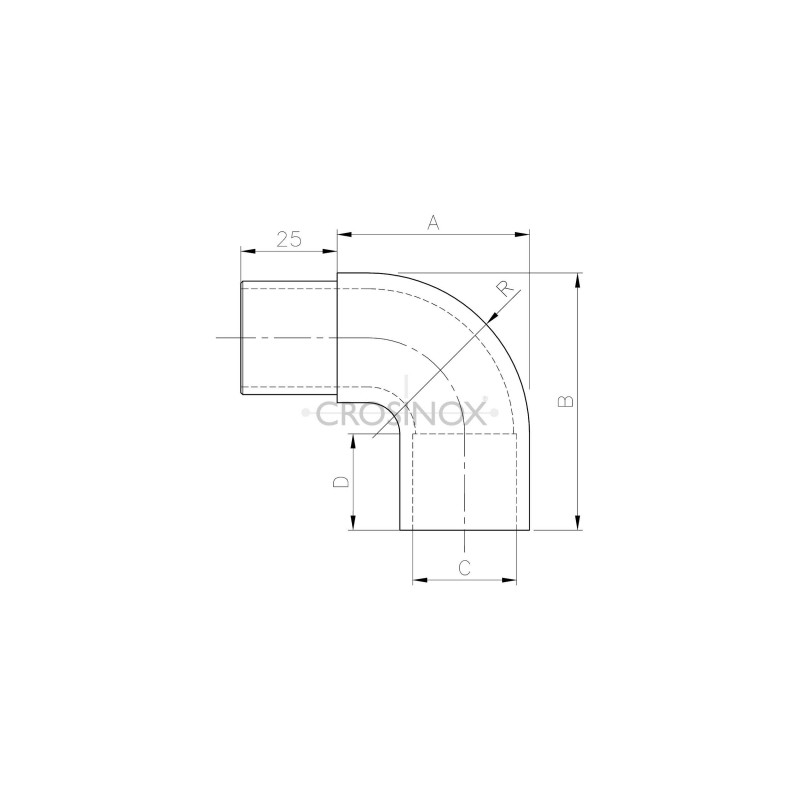

Details:

• CN4594100 --> A=42; B=67; C=29,7; D=25
• CN4594200 --> A=51; B=76; C=38,4; D=25
• CN4594300 --> A=59; B=84; C=44,3; D=25
