Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6130000 Glass clamp semicircular, connection straight V4A, polished

• CN6130337 Glass clamp semicircular, tube Ø 33.7 mm V4A, polished

• CN6130424 Glass clamp semicircular, tube Ø 42.4 mm V4A, polished

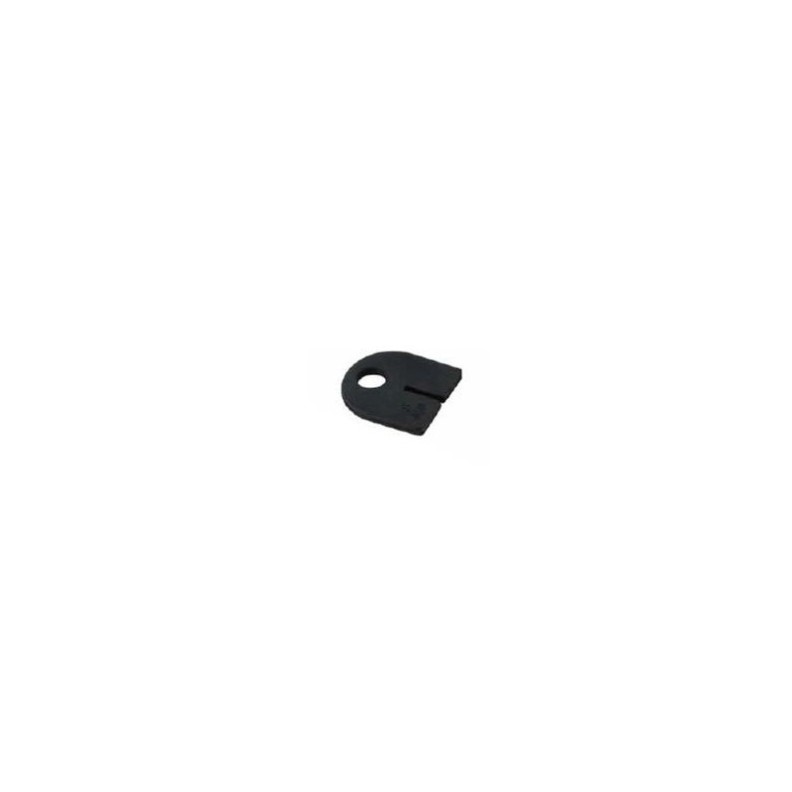

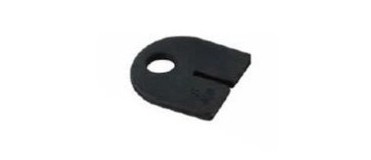

Rubber Inserts:

• CN6400010 Rubber insert, set glass 6.00 mm EPDM
• CN6400020 Rubber insert, set glass 7,52 mm EPDM
• CN6400030 Rubber insert, set glass 8,00 mm EPDM
• CN6400040 Rubber insert, set glass 8,76 mm EPDM
• CN6400050 Rubber insert, set glass 9,52 mm EPDM
• CN6400060 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6130000	CN6130337	CN6130424
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	Half round	Half round	Half round
Measures	38 x 49 mm	38 x 49 mm	38 x 49 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 33.7 mm	Ø 48,3 mm
Details	A=38; B=49; C=25; D=16; E=37	A=38; B=49; C=25; D=16; E=37	=38; B=49; C=25; D=16; E=37
