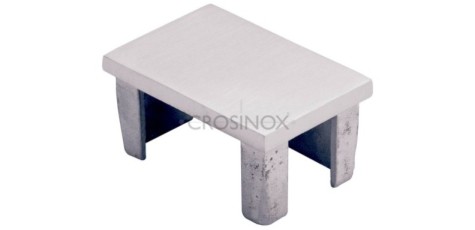

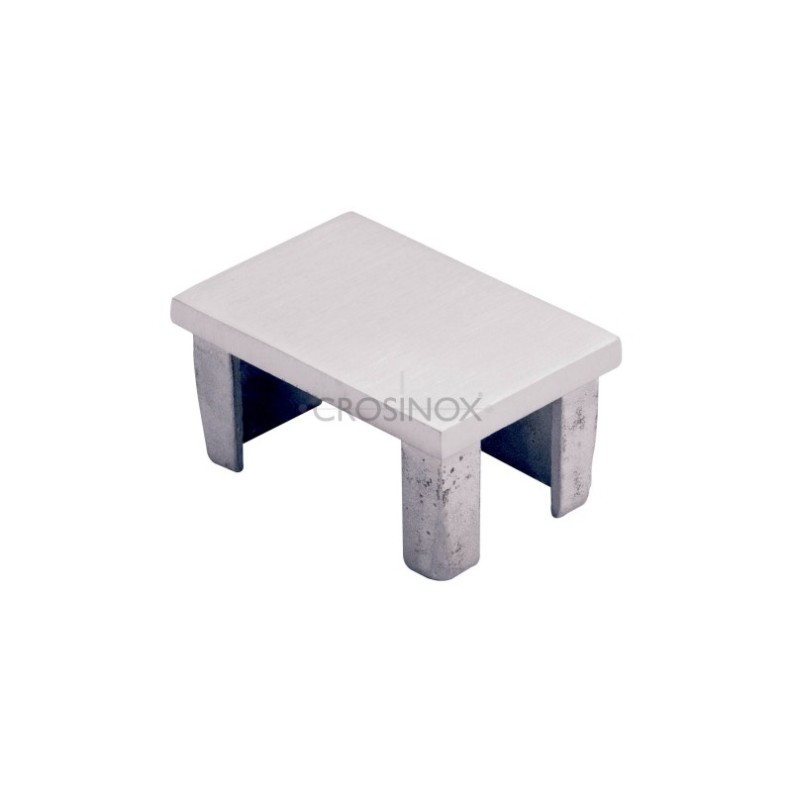

Square Cap - Terminal

Caps:

• CN3943020 Cap, tube 30 x 30 x 2,0 mm hollow V4A, polished

• CN3944020 cap, tube 40 x 40 x 2,0 mm hollow V4A, polished

• CN3944030 cap, tube 40 x 30 x 2,0 mm hollow V4A, polished

• CN3945030 cap, tube 50 x 30 x 2,0 mm hollow V4A, polished

• CN3946040 cap, tube 60 x 40 x 2.0 mm hollow V4A, polished

Technical Characteristics:

Product Code	CN3943020	CN3944020	CN3944030
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Dimensions	20 x 20 x 2 mm	40 x 20 x 2,0 mm	40 x 30 x 2,0 mm
Type	empty	empty	empty

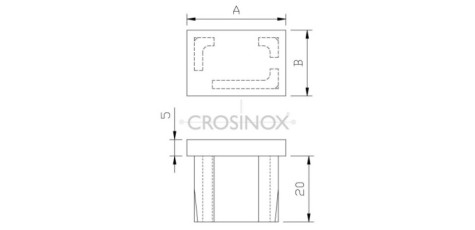

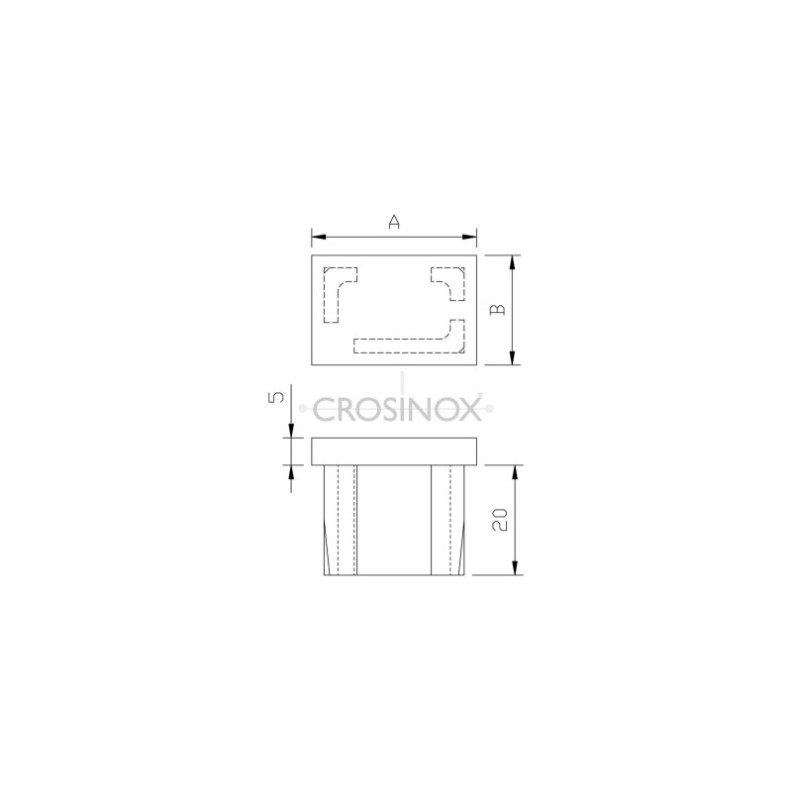

Details	A=30 B=30	A=40 B=20	A=40 B=30







Product Code	CN3945030	CN3946040
Material	AISI 316	AISI 316
Surface	satin	satin
Dimensions	50 x 30 x 2,0 mm	60 x 40 x 2,0 mm
Type	empty	empty
Details	A=50 B=30	A=60 B=40
