Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6040000 Glass clamp semicircular, straight zinc die-cast connection
• CN6040424 Glass clamp semicircular, tube Ø 42,4 mm die-cast zinc
• CN6040483 Glass clamp semicircular, tube Ø 48.3 mm die-cast zinc

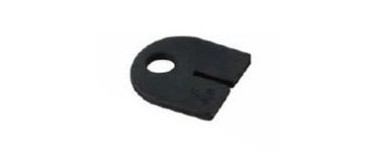

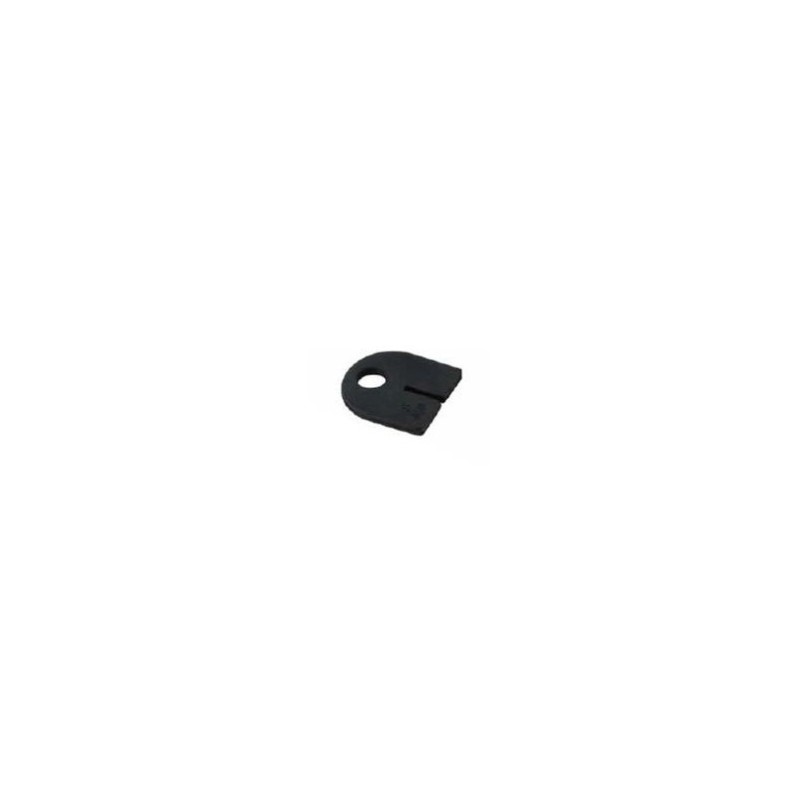

Rubber Inserts:

• CN6400410 Rubber insert, set glass 10,76 mm EPDM
• CN6400420 Rubber insert, set glass 11,52 mm EPDM
• CN6400430 Rubber insert, set glass 12,00 mm EPDM
• CN6400440 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6040000	CN6040424	CN6040483
Material	Zinc	Zinc	Zinc
Surface	zinc die-casting	zinc die-casting	zinc die-casting
Type	Half round	Half round	Half round
Measures	63 x 30 mm	63 x 30 mm	63 x 30 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 42.4 mm	Ø 48.3 mm
Details	A=45; B=63; C=30; D=16; E=49	A=45; B=63; C=30; D=16; E=49	A=45; B=63; C=30; D=16; E=49
