Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6140000 Glass clamp semicircular, connection straight V4A, polished

• CN6140424 Glass clamp semicircular, tube Ø 42.4 mm V4A, polished

• CN6140483 Glass clamp semicircular, tube Ø 48.3 mm V4A, polished

Rubber Inserts:

• CN6400510 Rubber insert, set glass 6,00 mm EPDM
• CN6400520 Rubber insert, set glass 7,52 mm EPDM
• CN6400530 Rubber insert, set glass 8,00 mm EPDM
• CN6400540 Rubber insert, set glass 8,76 mm EPDM
• CN6400550 Rubber insert, set glass 9,52 mm EPDM
• CN6400560 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6140000	CN6140424	CN6140483
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	Half round	Half round	Half round
Measures	59 x 43 mm	59 x 43 mm	59 x 43 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 42,4 mm	Ø 48,3 mm

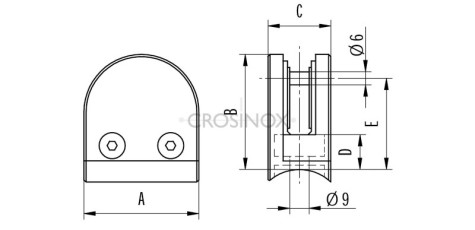

Details	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3
