Connecting Pin

Connecting pins

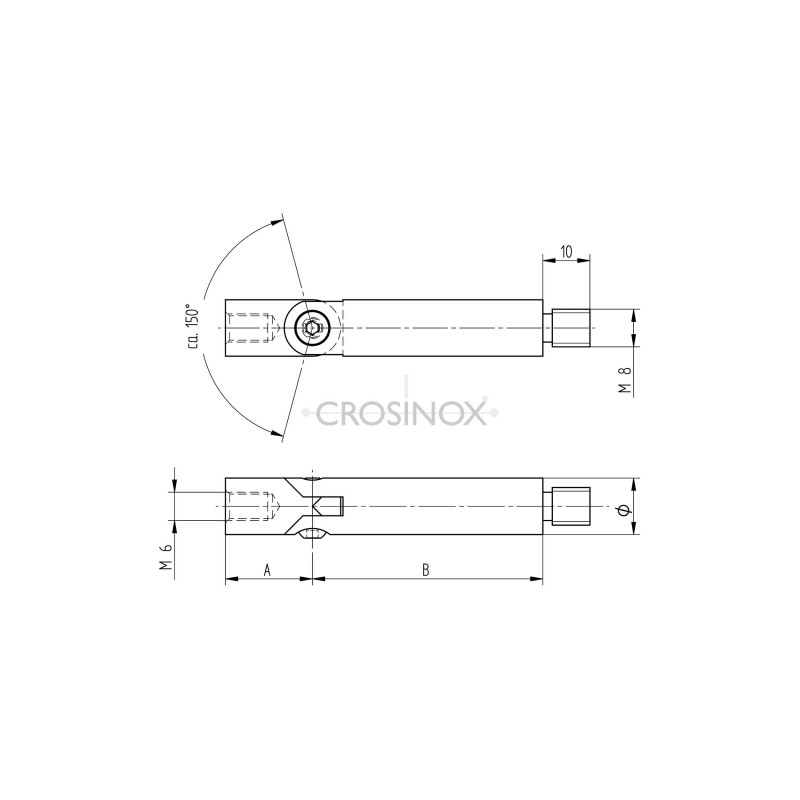

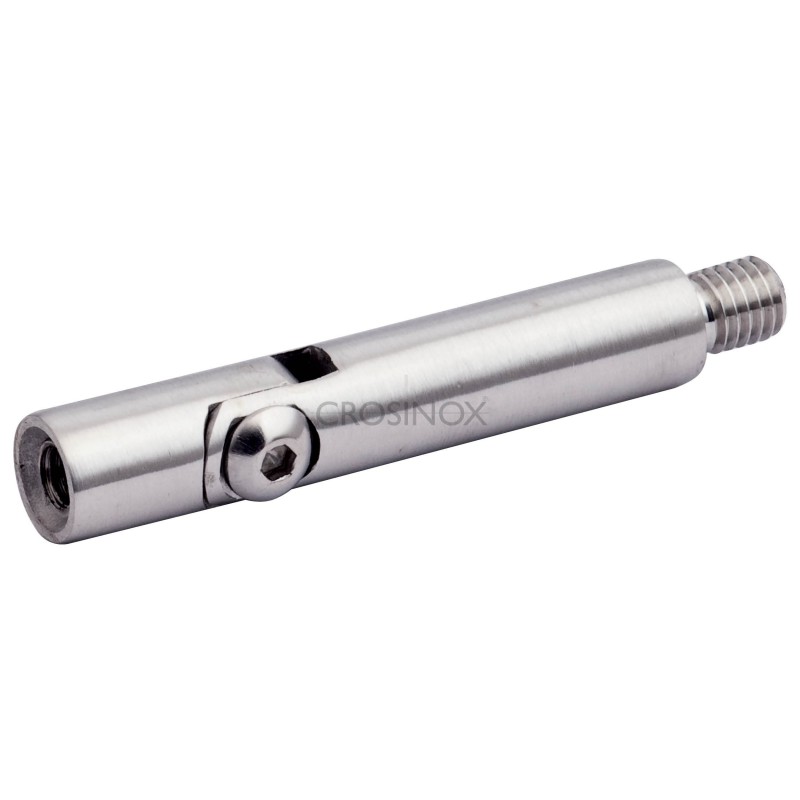

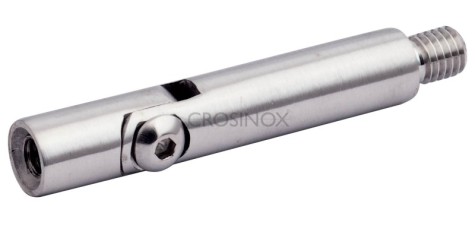

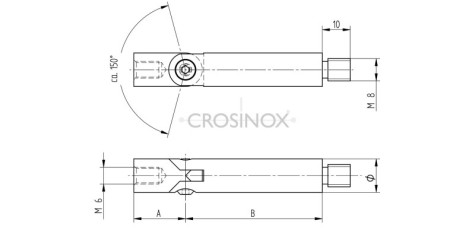

• 200300 Connecting pin with joint, Ø 12 mm, L = 61 mm V2A, polished
• 200310 Connecting pin with joint, Ø 12 mm, L = 49 mm V2A, polished
• 200350 Connecting pin with joint, Ø 14 mm, L = 61 mm V2A, polished
• 200360 Connecting pin with joint, Ø 14 mm, L = 49 mm V2A, polished
• CN8360760 Connecting pin, Ø 12 mm, outside M8 V4A, polished
• CN8360750 Connecting pin, Ø 14 mm, outside M8 V4A, polished

Technical Characteristics for 200300, 200310, 300350, 200360:

• Material: AISI 304
• FInish: Satin
• Type: with joint
• Dimensions: see above

 Technical Characteristics for CN8360760 and CN8360750:

• Material: AISI 316
• FInish: Satin
• Type: without joint
• Dimensions: see above
