Grooved tube and profile

Tubes:

• CN1000050 tube, Ø 12,0 x 1,5 x 6000 mm V2A, polished 7.25 € per meter
• CN1000100 tube, Ø 33.7 x 2.0 x 6000 mm V2A, polished 14,15 € per meter
• CN1000120 tube, Ø 42,4 x 2,0 x 6000 mm V2A, polished 16.95 € per meter
• CN1000130 tube, Ø 42,4 x 2,6 x 6000 mm V2A, polished 21.80 € per meter
• CN1000140 tube, Ø 48.3 x 2.0 x 6000 mm V2A, polished 22.55 € per meter
• CN1000150 tube, Ø 48.3 x 2.6 x 6000 mm V2A, polished 28.60 € per meter
• CN1100115 tube, Ø 33.7 x 2.0 x 6000 mm V4A, polished 28.60 € per meter
• CN1100120 tube, Ø 42.4 x 2.0 x 6000 mm V4A, polished 34.70 € per meter
• CN1100140 tube, Ø 48.3 x 2.0 x 6000 mm V4A, polished 38.45 € per meter

Technical Characteristics:

Product Code	CN1000050	CN1000100	CN1000120	CN1000130	CN1000140
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin	satin
Grain Size	240	240	320	240	240
Dimensions	Ø12,0 mm x 1,5 mm	Ø 33,7 mm x 2,0 mm	Ø 42,4 mm x 2,0 mm	Ø 42,4 mm x 2,5 mm	Ø 48,3 mm x 2,0 mm

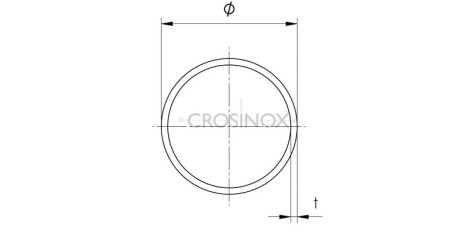

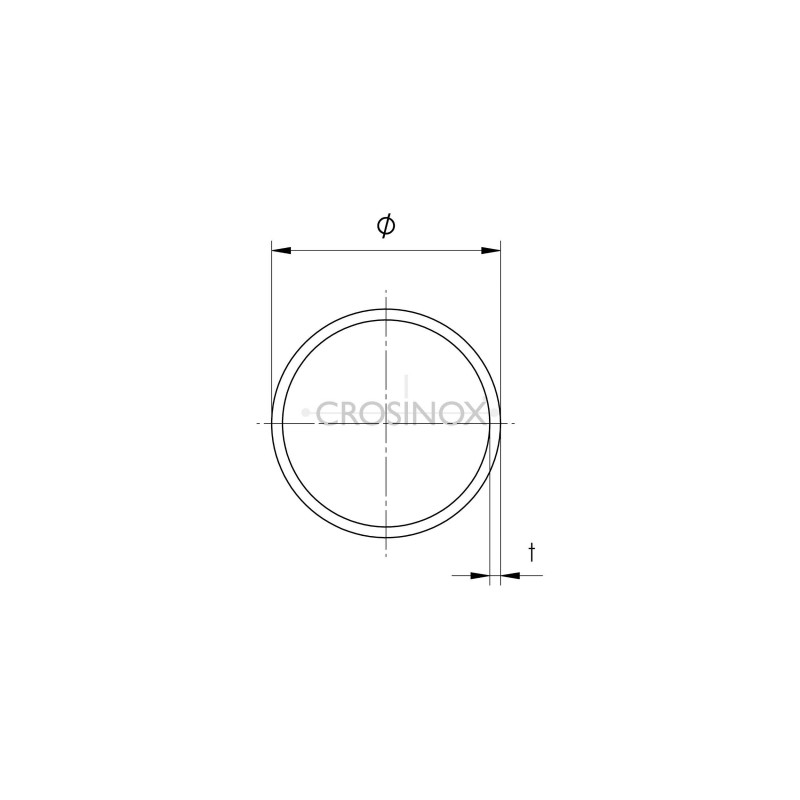

Details	Ø=12; t=1,5	Ø=33,7; t=2	Ø=42,4; t=2	Ø=42,4; t=2,5	Ø=48,3; t=2











Product Code	CN1000150	CN1100115	CN1100120	CN1100140
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Grain Size	240	240		240
Dimensions	Ø 48,3 mm x 2,5 mm	Ø 33,7 mm x 2,0 mm	Ø 42,4 mm x 2,0 mm	Ø 48,3 mm x 2,0 mm
Details	Ø=48,3; t=2,5	Ø=33,7; t=2	Ø=42,4; t=2	Ø=48,3; t=2

















-Tube length: 6 meters
