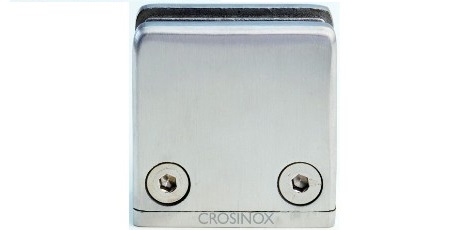

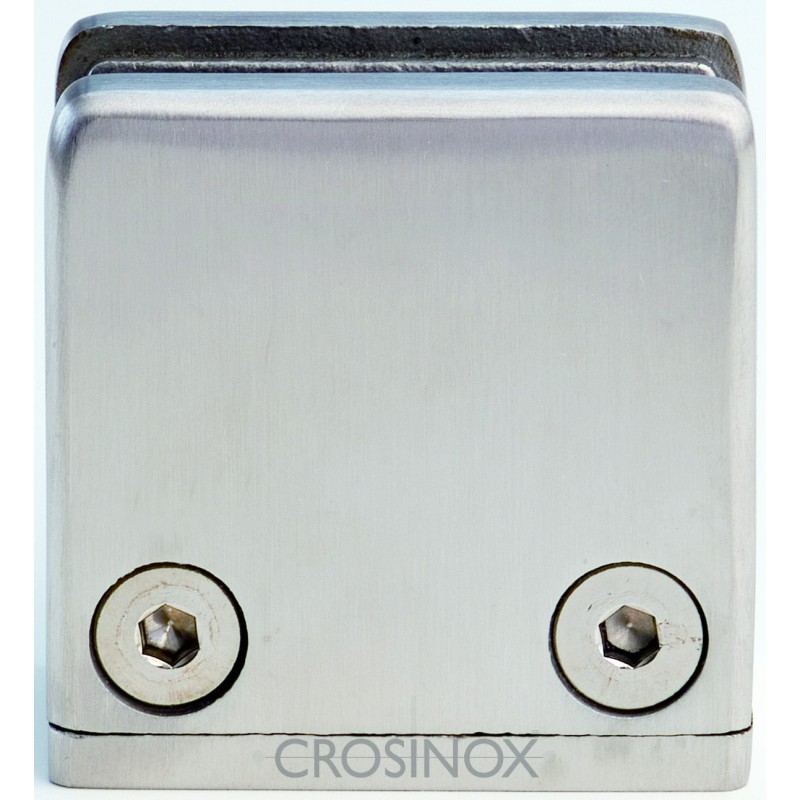

Square Glass Clamp

Glass Clamps:

• CN6120000 Glass clamp square, connection straight V4A, polished

• CN6120337 Glass clamp square, tube Ø 33.7 mm V4A, polished

• CN6120424 Glass clamp square, tube Ø 42.4 mm V4A, polished

• CN6120483 Glass clamp square, tube Ø 48.3 mm V4A, polished

• CN6120603 Glass clamp angular, pipe Ø 60.3 mm V4A, polished

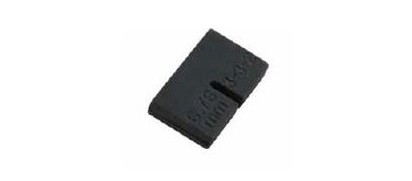

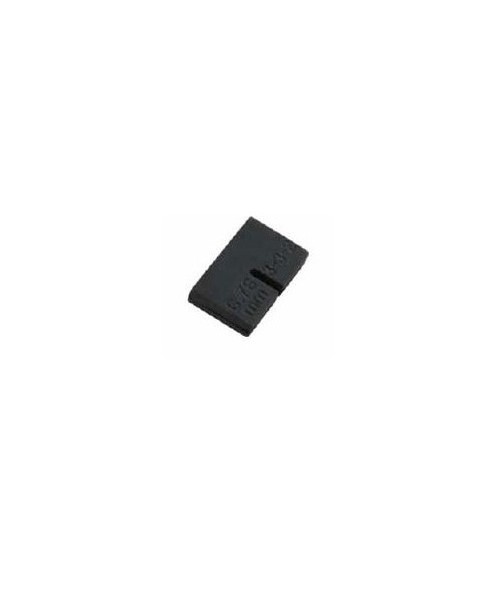

Rubber Inserts:

• CN6400790 Rubber insert, set glass 9,52 mm EPDM
• CN6400800 rubber insert, set glass 10,00 mm EPDM
• CN6400810 Rubber insert, set glass 10,76 mm EPDM
• CN6400820 Rubber insert, set glass 11,52 mm EPDM
• CN6400830 Rubber insert, set glass 12,00 mm EPDM
• CN6400840 rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6120000	CN6120337	CN6120424	CN6120483	CN6120603
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin	satin
Type	square glass clamp	square glass clamp	square glass clamp	square glass clamp	square glass clamp
Measures	54 x 54 mm	54 x 54 mm	54 x 54 mm	54 x 54 mm	54 x 54 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm	Ø 48,3 mm	Ø 60.3 mm

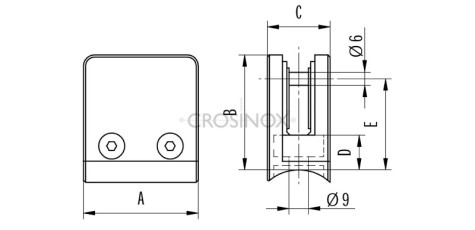

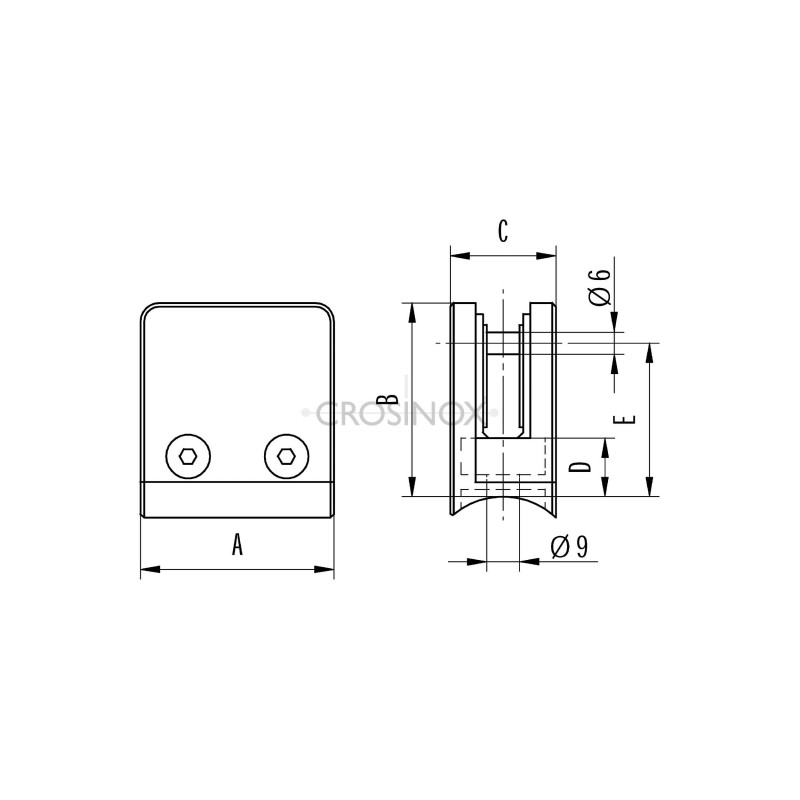

Details	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45
