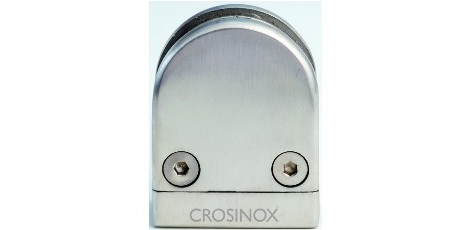

Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6160000 Glass clamp semicircular, connection straight V4A, polished

• CN6160337 Glass clamp semicircular, tube Ø 33,7 mm V4A, polished

• CN6160424 Glass clamp semicircular, tube Ø 42.4 mm V4A, polished

• CN6160483 Glass clamp semicircular, tube Ø 48.3 mm V4A, polished

• CN6160603 Glass clamp semicircular, tube Ø 60.3 mm V4A, polished

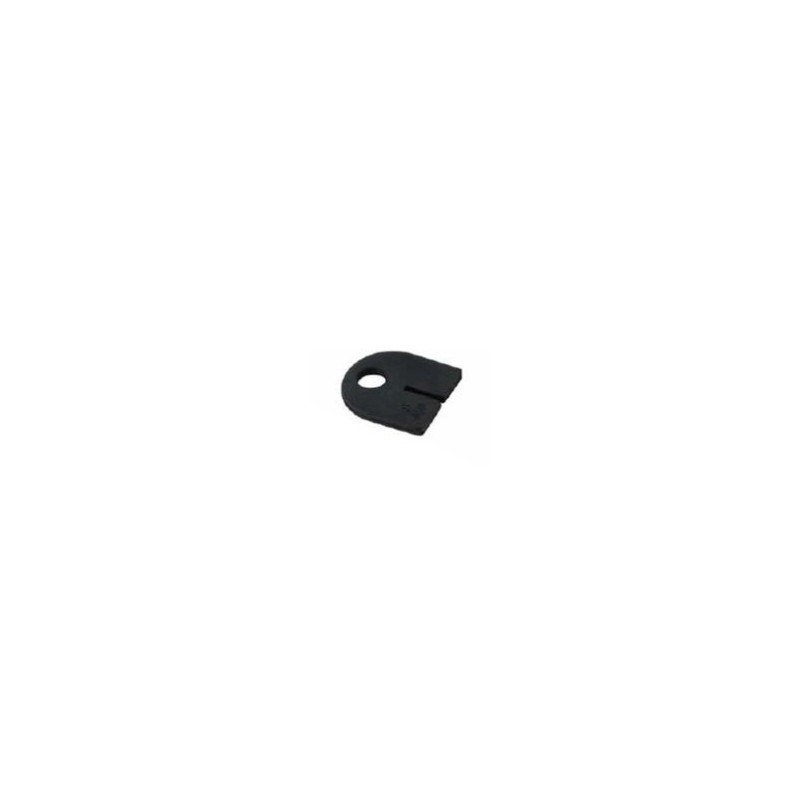

Rubber Inserts:

• CN6400710 Rubber insert, set glass 10,76 mm EPDM
• CN6400720 Rubber insert, set glass 11,52 mm EPDM
• CN6400730 Rubber insert, set glass 12,00 mm EPDM
• CN6400740 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6160000	CN6160337	CN6160424	CN6160483	CN6160603
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin	satin
Type	Half round	Half round	Half round	Half round	Half round
Measures	60 x 54 mm	60 x 54 mm	60 x 54 mm	60 x 54 mm	60 x 54 mm
Glass Thickness	-	-	-	-	-
Pipe fitting	Straight	Ø 33.7 mm	Ø 42,4 mm	Ø 48,3 mm	Ø 60,3 mm

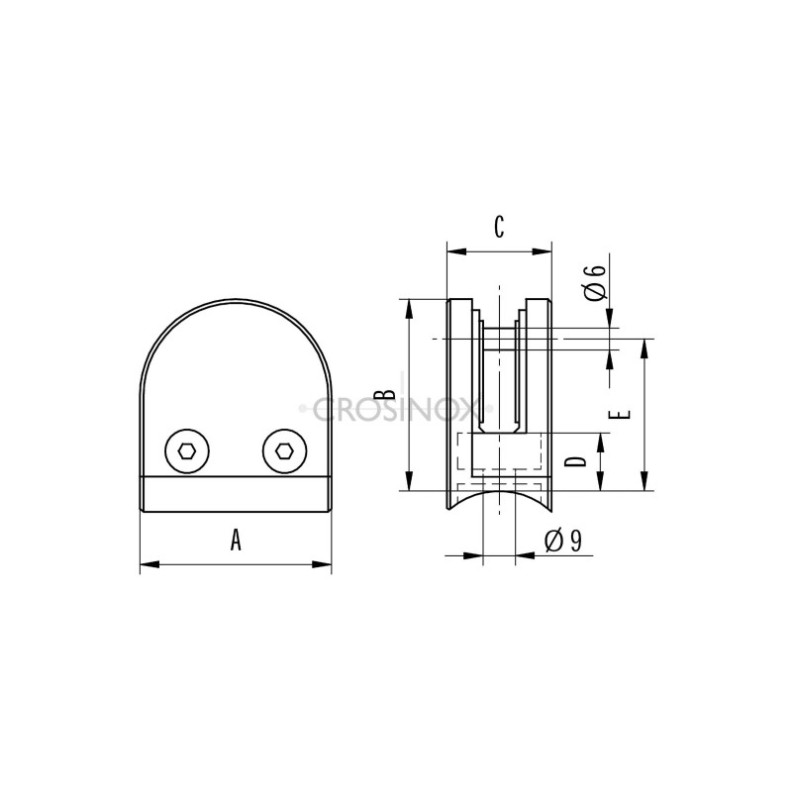

Details	A=43; B=59; C=29; D=16; E=46,5	A=43; B=59; C=29; D=16; E=46,5	A=43; B=59; C=29; D=16; E=46,5	A=54; B=60; C=33; D=16,5; E=47,5	A=54; B=60; C=33; D=16,5; E=47,5
