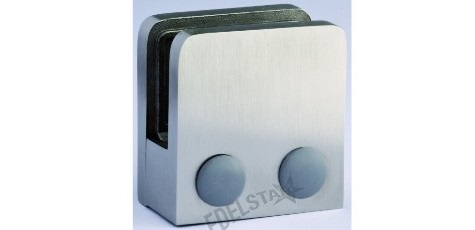

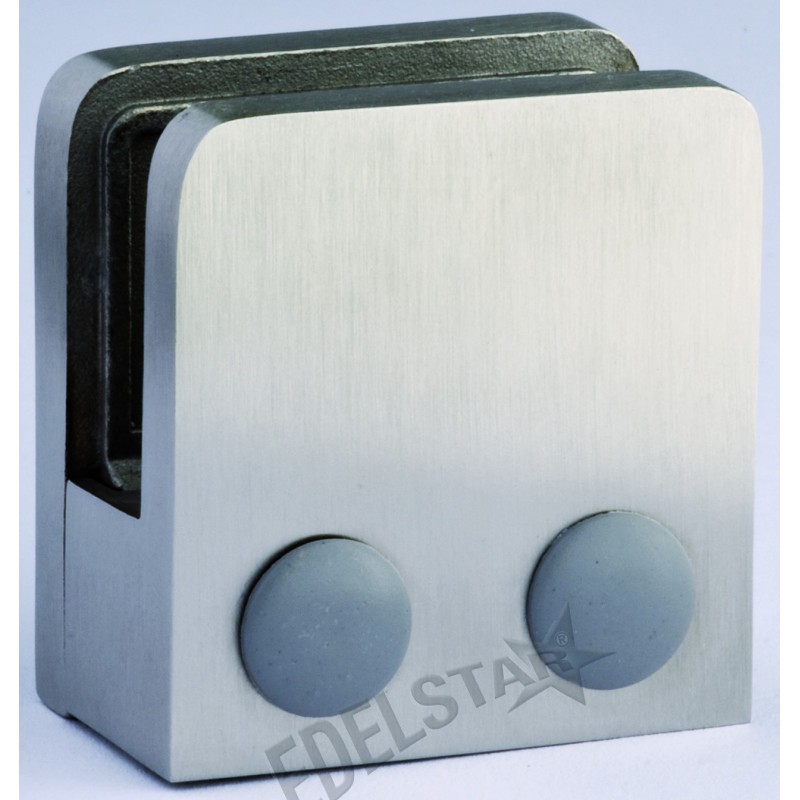

Square Glass Clamp

Glass Clamps:

• 799000 Glass clamp square, connection straight V2A, polished

• 799337 Glass clamp square, pipe Ø 33.7 mm V2A, polished

• 799424 Glass clamp square, pipe Ø 42.4 mm V2A, polished

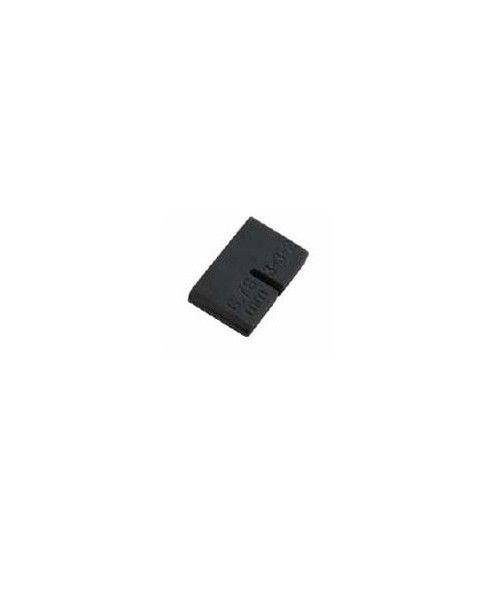

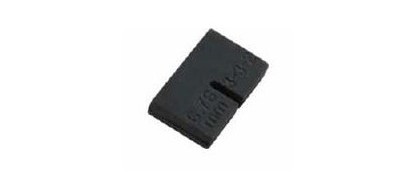

Rubber Inserts:

• 980600 Rubber insert, set, for glass 6,0 mm glass 6,00 mm EPDM
• 980800 Rubber insert, set, for glass 8,0 mm glass 8,00 mm EPDM
• 980876 Rubber insert, set, for glass 8,76 mm glass 8,76 mm EPDM
• 981000 Rubber insert, set, for glass 10,0 mm glass 10,00 mm EPDM

Technical Characteristics:

Product Code	799000	799337	799424
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Type	square glass clamp	square glass clamp	square glass clamp
Measures	45 x 47 mm	45 x 47 mm	45 x 47 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm

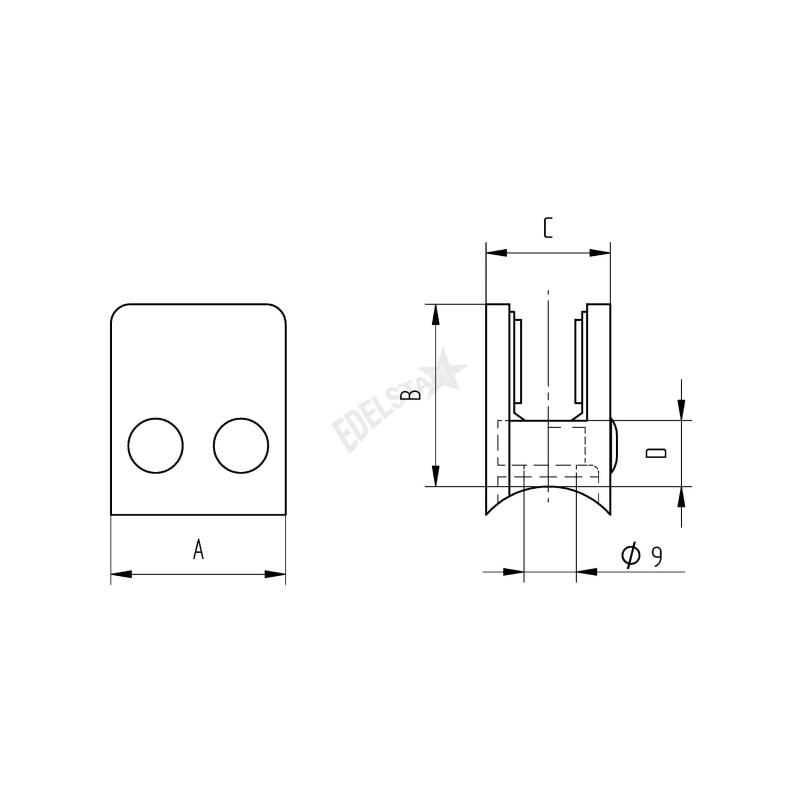

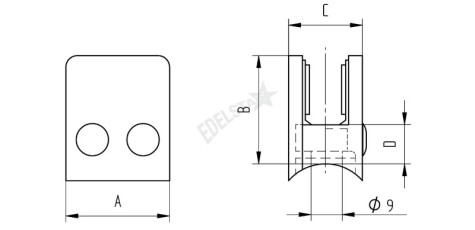

Details	A=45; B=47; C=32; D=17	A=45; B=47; C=32; D=17	A=45; B=47; C=32; D=17
