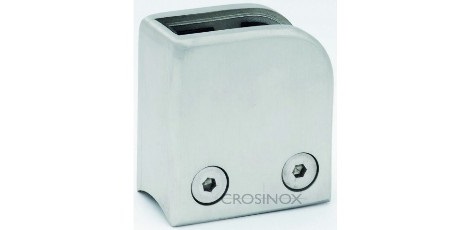

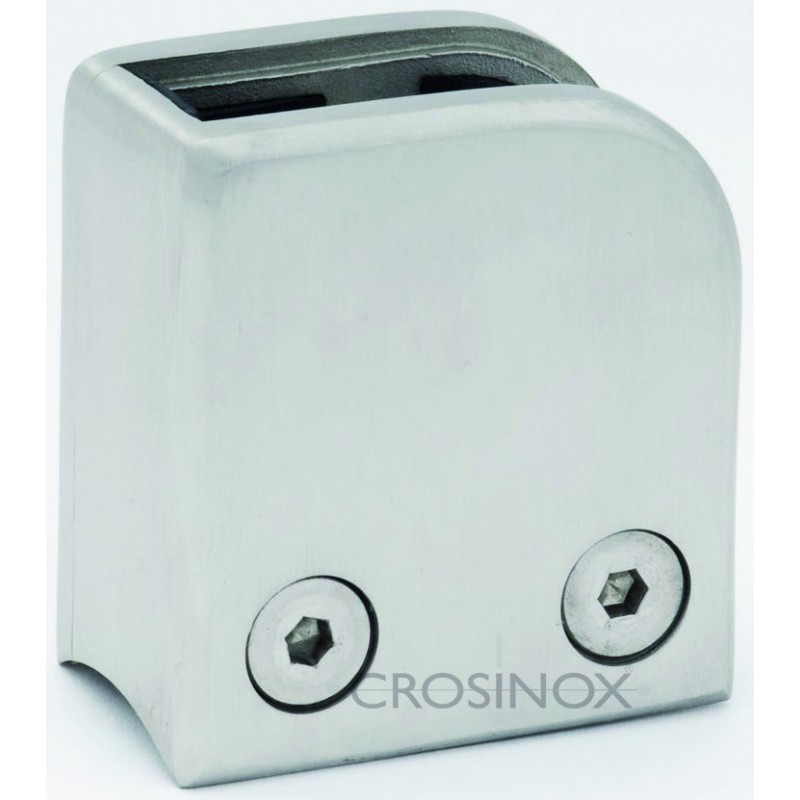

Corner Glass Clamp

Glass Clamps:

• CN6323483 Glass clamp corner, pipe Ø 48,3 / left V4A, polished

• CN6324483 Glass clamp corner, pipe Ø 48.3 / right V4A, polished

• CN6325603 Glass clamp corner, pipe Ø 60,3 / left V4A, polished

• CN6326603 Glass clamp corner, pipe Ø 60.3 / right V4A, polished

• CN6321000 Glass clamp corner, connection straight / left V4A, polished

• CN6322000 Glass clamp corner, connection straight / right V4A, polished

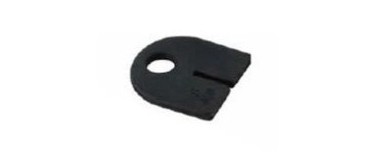

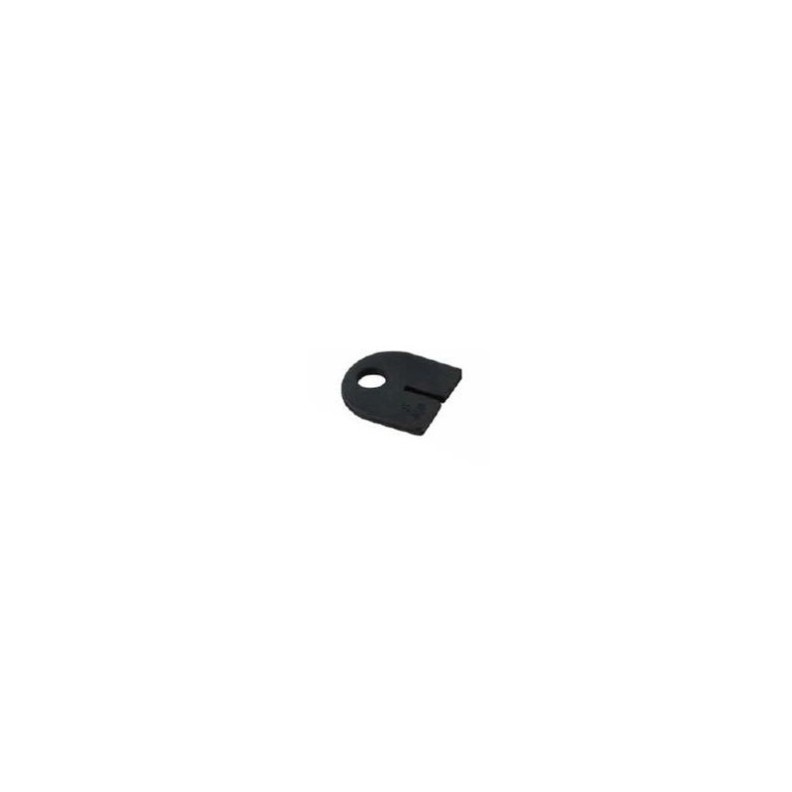

Rubber Inserts:

• CN6450810 Rubber insert, set glass 13,52 mm EPDM
• CN6450820 Rubber insert, set glass 16,76 mm EPDM
• CN6450830 Rubber insert, set glass 17,52 mm EPDM

Technical Characteristics:

Product Code	CN6323483	CN6324483	CN6325603	CN6326603	CN6321000	CN6322000
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	Satin	Satin	Satin	Satin	Satin	Satin
Type	Corner	Corner	Corner	Corner	Corner	Corner
Measures	70 x 70 mm	70 x 70 mm	70 x 70 mm	70 x 70 mm	70 x 70 mm	70 x 70 mm
Pipe fitting	Ø 4.83 mm left	Ø 4.83 mm right	Ø 60.3 mm left	Ø 60.3 mm right	straight / left	straight / right

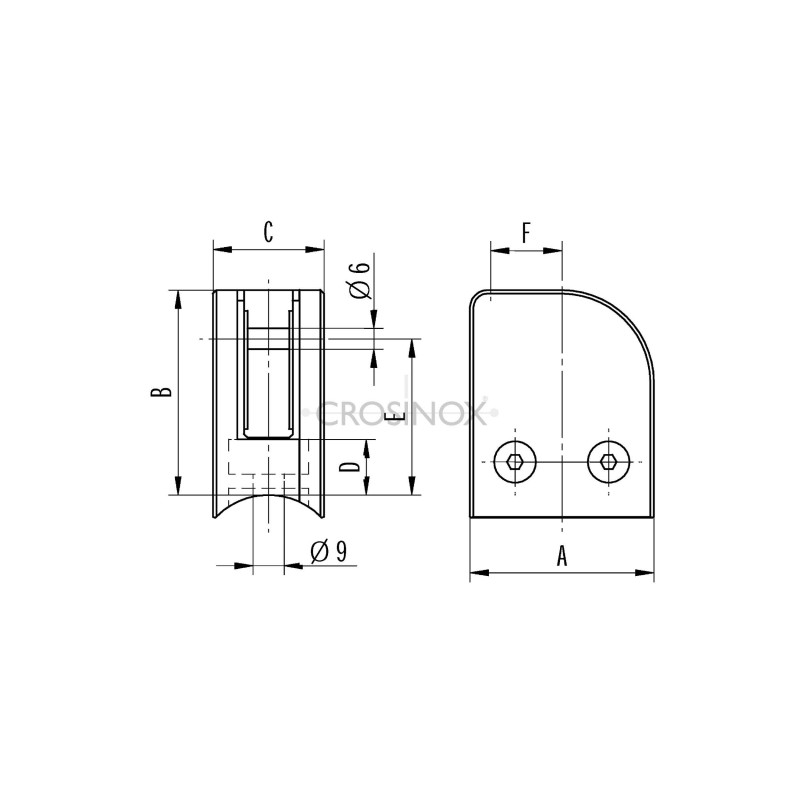

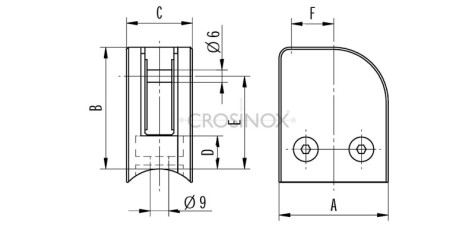

Details	A=70; B=70; C=37,52; D=16; E=57; F=28,5	A=70; B=70; C=37,52; D=16; E=57; F=28,5	A=70; B=70; C=37,52; D=16; E=57; F=28,5	A=70; B=70; C=37,52; D=16; E=57; F=28,5	A=70; B=70; C=37,52; D=16; E=57; F=28,5	A=70; B=70; C=37,52; D=16; E=57; F=28,5
