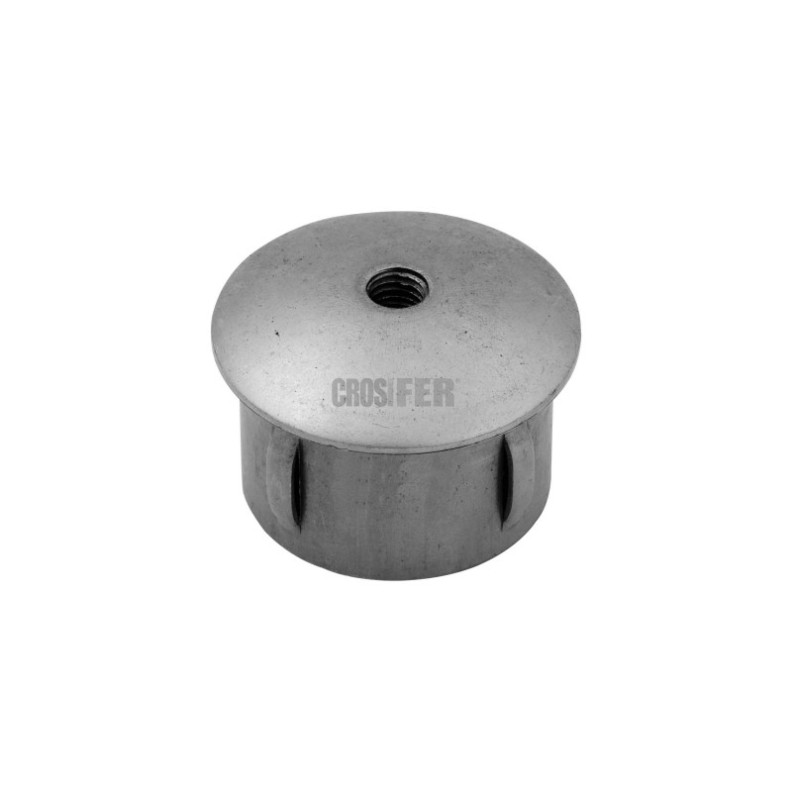

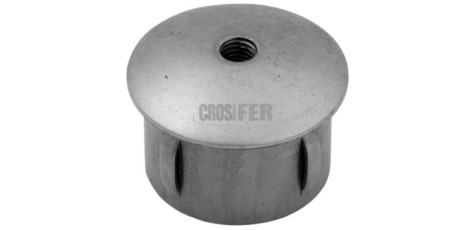

Round Cap - Terminal

Caps:

• 75906 Cap, tube Ø 33,7 x 1,8 - 2,2 mm hollow steel, galvanizable

• 75908 Cap, tube Ø 42,4 x 1,8 - 2,2 mm hollow steel, galvanizable

• 75909 Cap, tube Ø 42,4 x 2,5 - 2,9 mm hollow steel, galvanizable

• 75914 Cap, tube Ø 42,4 x 3,0 - 3,5 mm hollow steel, galvanizable

Technical Characteristics:

Product Code	75906	75908	75909	75914
Material	S235JR	S235JR	S235JR	S235JR
Type	empty, galvanized	empty, galvanized	empty, galvanized	empty, galvanized

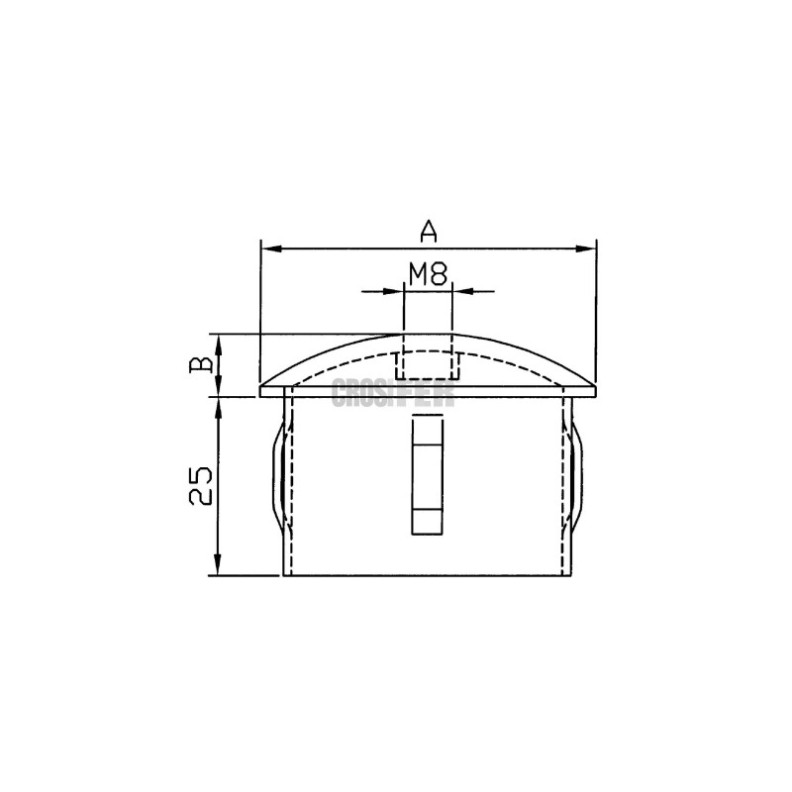

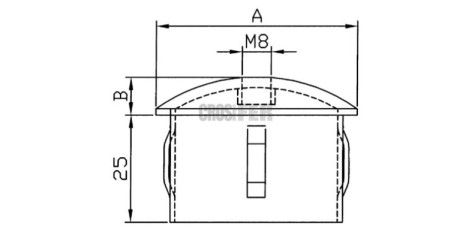

Details	A=33,7; B=6,3 hole=M8 Wall thickness = 1.8 - 2.2 mm	A=42,4; B=6,8; hole=M8 Wall thickness = 1.8 - 2.2 mm	A=42,4; B=6,8; hole=M8; Wall thickness=2,5 - 2,9 mm	A=42,4; B=6,8; hole=M8; Wall thickness=3,0 - 3,5 mm
