Semicircular-Half Round Glass Clamp

Glass Clamps:

• 679000 Semicircular glass clamp, links straight stainless steel cast zinc casting
• 679337 Semicircular glass clamp, tube Ø 33.7 mm Stainless steel with die-cast zinc
• 679424 Semicircular glass clamp, tube Ø 42.4 mm stainless steel with die-cast zinc

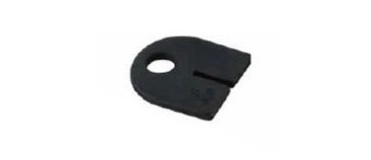

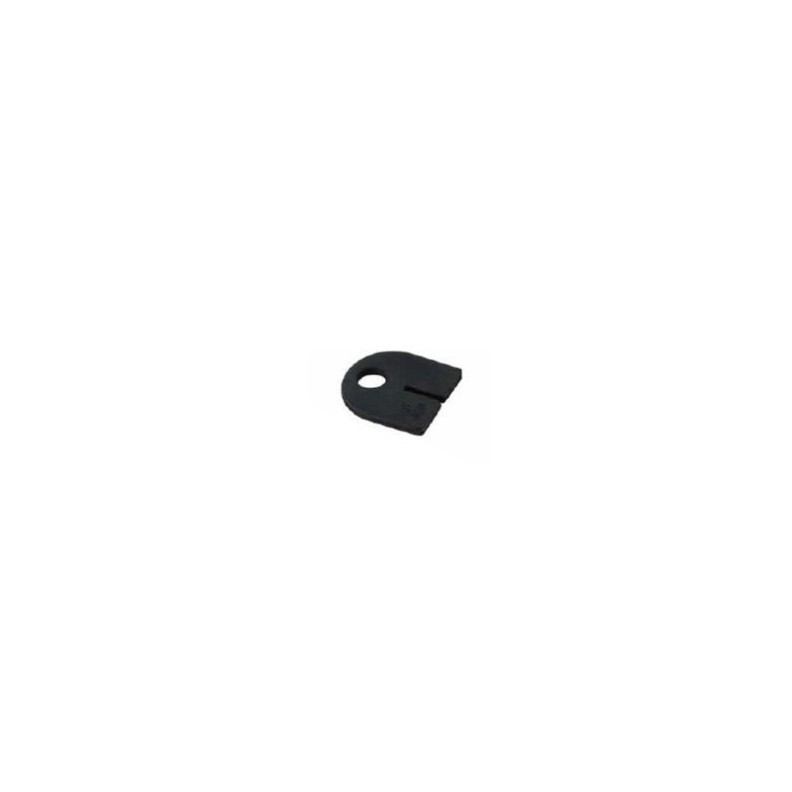

Rubber Inserts:

• 990600 Rubber insert, set glass 6,00 mm EPDM
• 990800 Rubber insert, set glass 8,00 mm EPDM
• 990876 Rubber insert, set glass 8,76 mm EPDM
• 991000 rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	679000	679337	679424
Material	Zinc	Zinc	Zinc
Surface	Stainless steel effect	Stainless steel effect	Stainless steel effect
Type	Half round	Half round	Half round
Measures	50 x 40 mm	51 x 40 mm	52 x 40 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm
Details	A=40; B=50; C=28; D=18; E=37,5	A=40; B=50; C=28; D=18; E=37,5	A=40; B=50; C=28; D=18; E=37,5
