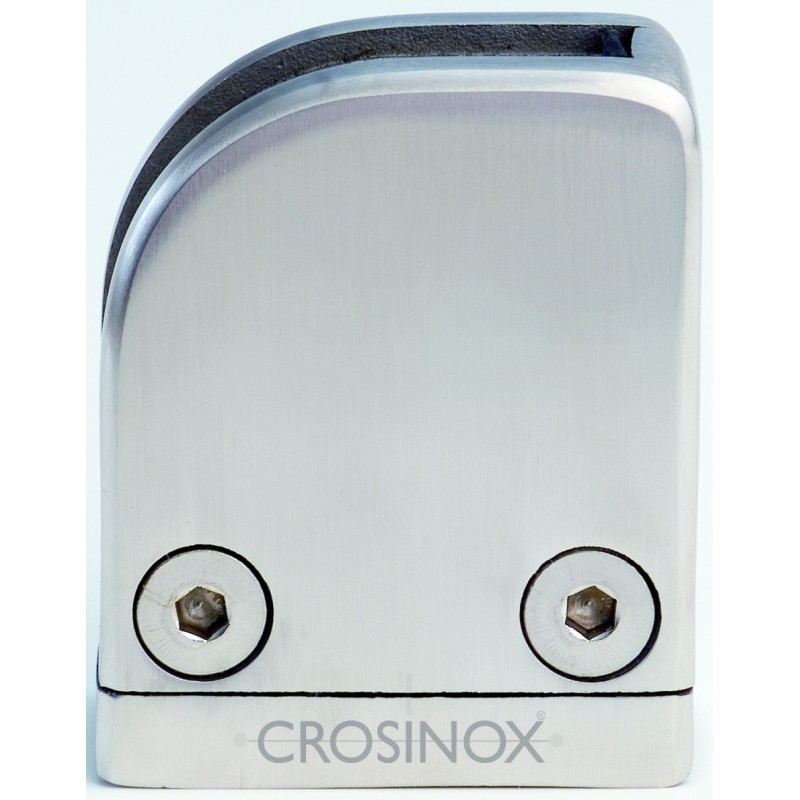

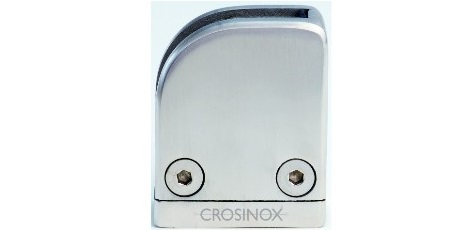

Corner Glass Clamp

Glass Clamps:

• CN6191424 Glass clamp corner, pipe Ø 42,4 / left V4A, polished

• CN6192424 Glass clamp corner, pipe Ø 42.4 / right V4A, polished

• CN6193483 Glass clamp corner, pipe Ø 48.3 / left V4A, polished

• CN6194483 Glass clamp corner, pipe Ø 48.3 / right V4A, polished

• CN6195000 Glass clamp corner, conn. straight / left V4A, polished

• CN6196000 glass clamp corner, conn. straight / right V4A, polished

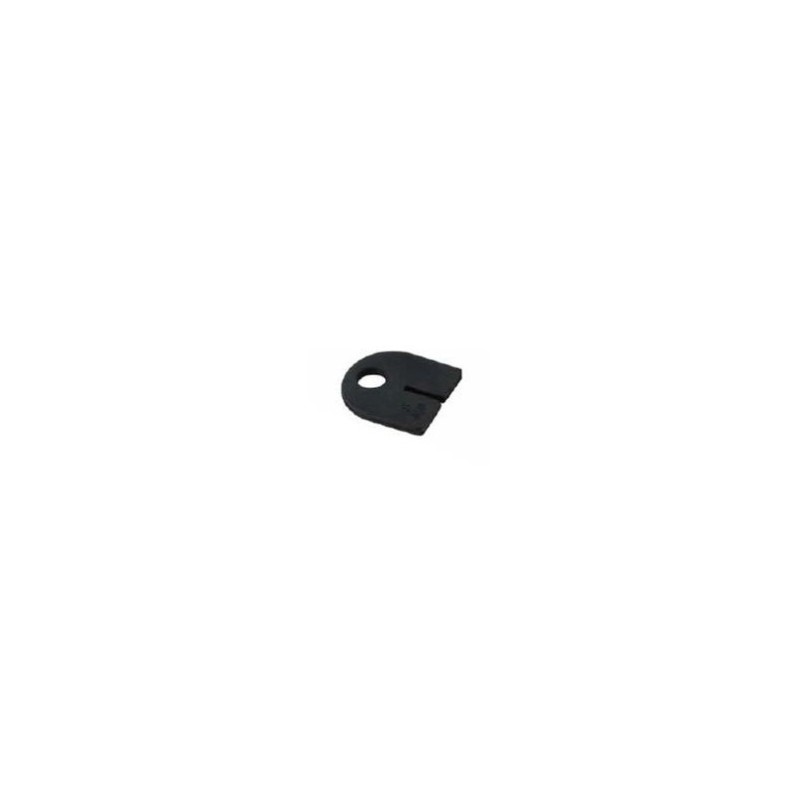

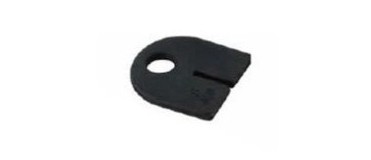

Rubber Inserts:

• CN6450110 Rubber insert, set glass 10,76 mm EPDM
• CN6450120 Rubber insert, set glass 11,52 mm EPDM
• CN6450130 Rubber insert, set glass 12,00 mm EPDM
• CN6450140 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6191424	CN6192424	CN6193483	CN6194483	CN6195000	CN6196000
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	Satin	Satin	Satin	Satin	Satin	Satin
Type	Corner	Corner	Corner	Corner	Corner	Corner
Measures	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm
Pipe fitting	42.4 mm / left	42.4 mm / right	48.3 mm / left	48.3 mm / right	straight / left	straight / right

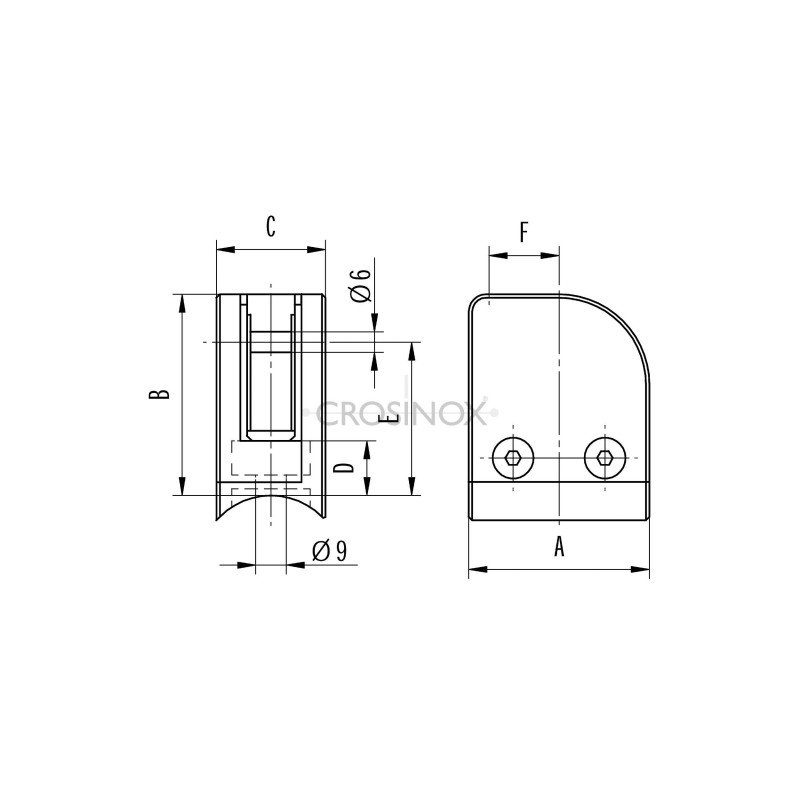

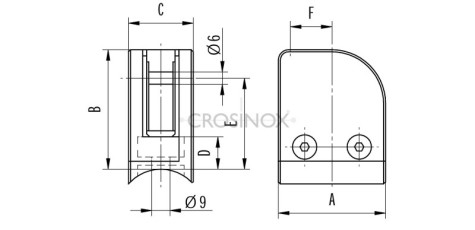

Details	A=53; B=60; C=31; D=16,5; E=45; F=18,5	A=53; B=60; C=31; D=16,5; E=45; F=18,5	A=53; B=60; C=31; D=16,5; E=45; F=18,5	A=53; B=60; C=31; D=16,5; E=45; F=18,5	A=53; B=60; C=31; D=16,5; E=45; F=18,5	A=53; B=60; C=31; D=16,5; E=45; F=18,5
