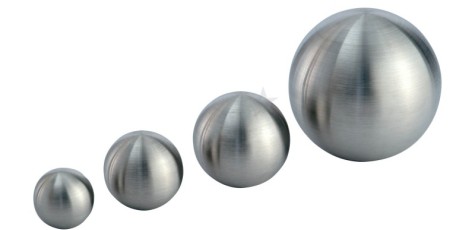

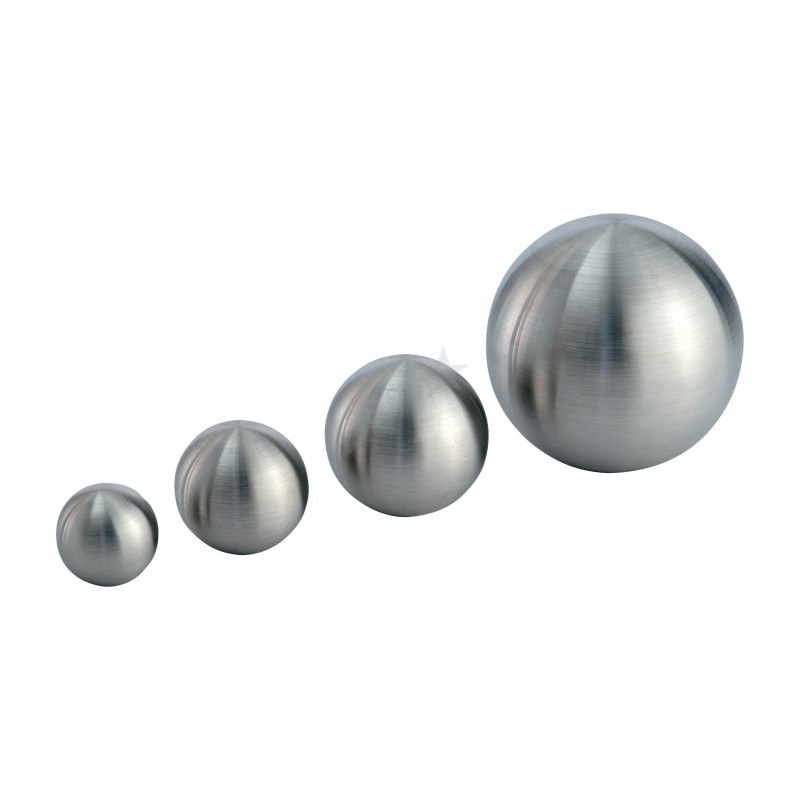

Spheroidal Terminal Ball

Balls:

• CN7100400 ball, Ø 40 mm, threaded bush M6 hollow V4A, polished

• CN7100500 ball, Ø 50 mm, threaded bush M6 hollow V4A, polished

• CN7100600 ball, Ø 60 mm, threaded bush M8 hollow V4A, polished

• CN7100800 ball, Ø 80 mm, threaded bush M8 hollow V4A, polished

• CN7101000 ball, Ø 100 mm, threaded bush M10 hollow V4A, polished

• CN7101200 ball, Ø 120 mm, threaded bush M10 hollow V4A, polished

• CN7101500 ball, Ø 150 mm, threaded bush M10 hollow V4A, polished

• CN7200300 ball, Ø 30 mm, threaded bush M6 hollow V2A, mirror polished

• CN7200400 ball, Ø 40 mm, threaded bush M6 hollow V2A, mirror polished

• CN7200500 ball, Ø 50 mm, threaded bush M6 hollow V2A, mirror polished

• CN7200600 ball, Ø 60 mm, threaded bush M8 hollow V2A, mirror polished

• CN7200800 ball, Ø 80 mm, threaded bush M8 hollow V2A, mirror polished

• CN7201000 ball, Ø 100 mm, threaded bush M10 hollow V2A, mirror polished

• CN7201200 ball, Ø 120 mm, threaded bush M10 hollow V2A, mirror polished

• CN7201500 ball, Ø 150 mm, threaded bush M10 hollow V2A, high polished

Technical Characteristics:

Product Code	CN7100400	CN7100500	CN7100600	CN7100800	CN711000
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Type	empty	empty	empty	empty	empty
Surface	satin	satin	satin	satin	satin

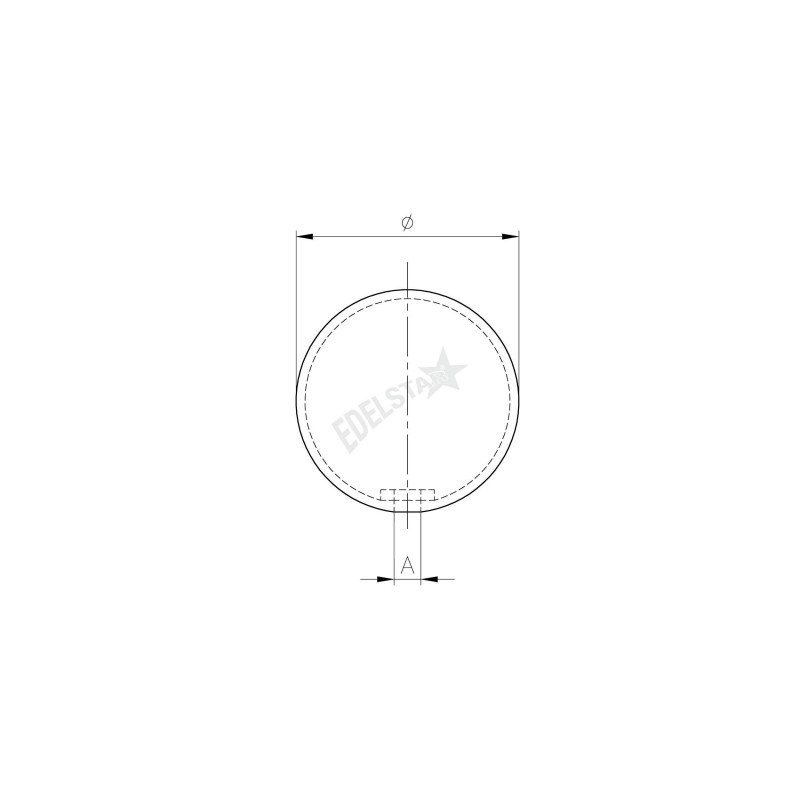

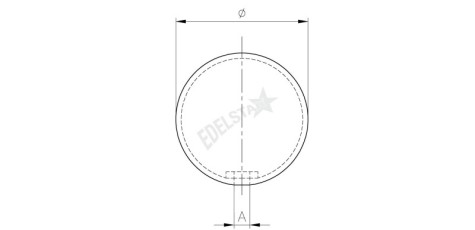

Details	A=M6; Ø=40	A=M6; Ø=50	A=M8; Ø=60	A=M8; Ø=80	A=M10; Ø=100

















Product Code	CN7101200	CN7101500	CN7200300	CN7200400	CN7200500
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Type	empty	empty	empty	empty	empty
Surface	satin	satin	mirror polished	mirror polished	mirror polished
Details	A=M10; Ø=120	A=M10; Ø=150	A=M6; Ø=30	A=M6; Ø=40	A=M6; Ø=50

















Product Code	CN7200600	CN7200800	CN7201000	CN7201200	CN7201500
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Type	empty	empty	empty	empty	empty
Surface	mirror polished	mirror polished	mirror polished	mirror polished	mirror polished
Details	A=M8; Ø=60	A=M8; Ø=80	A=M10; Ø=100	A=M10; Ø=120	A=M10; Ø=150
