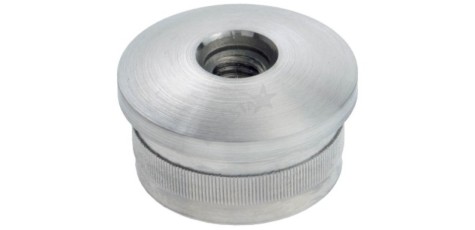

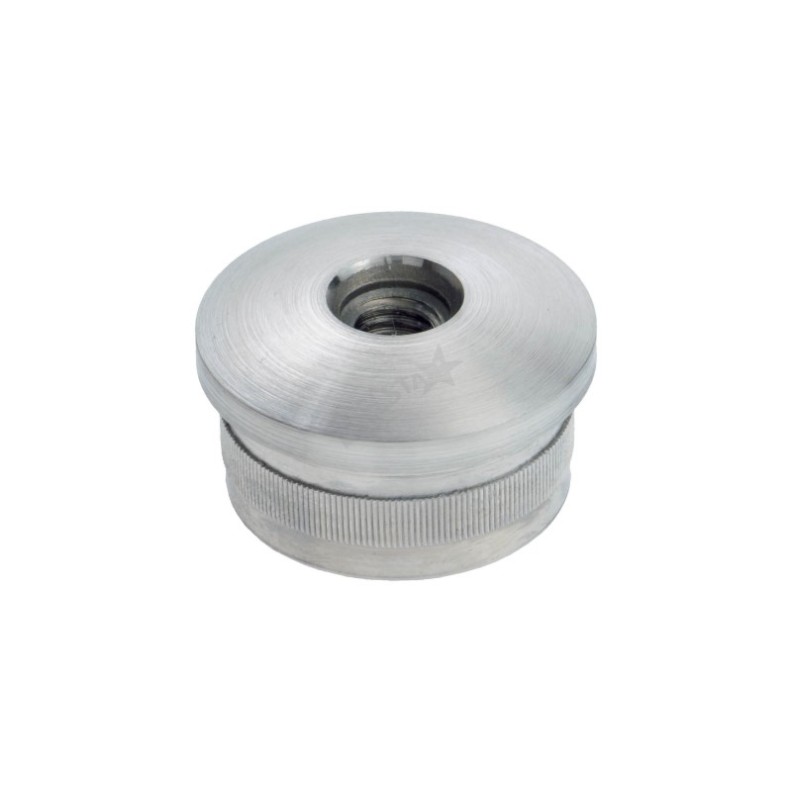

Round Cap - Terminal

Caps:

• 260337 Cap with knurl, tube Ø 33,7 x 2,0 mm hollow V2A, polished

• 260424 cap with knurl, tube Ø 42,4 x 2,0 mm hollow V2A, polished

• 260483 Cap with knurl, tube Ø 48.3 x 2.0 mm hollow V2A, polished

Technical Characteristics:

Product Code	260337	260424	260483
Material	AISI 304	AISI 304	AISI 304
Dimensions	33,7 x 2,0 mm	Ø 42,4 x 2,0 mm	Ø 48.3 x 2.0 mm
Type	empty	empty	empty

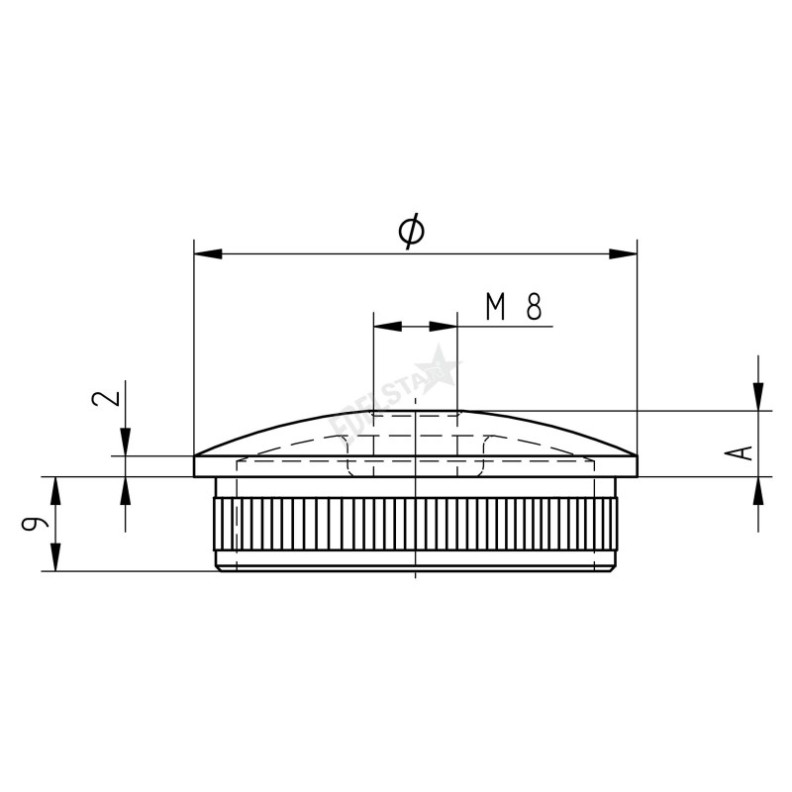

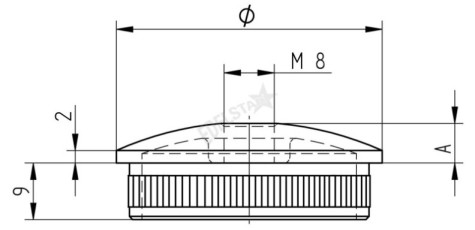

Details	A=5; hole=M8	A=6; hole=M8	A=7; hole=M8
