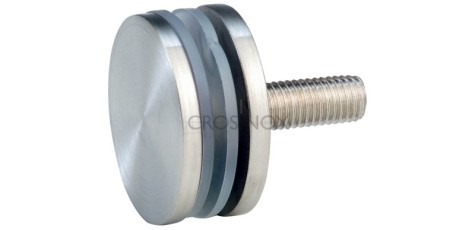

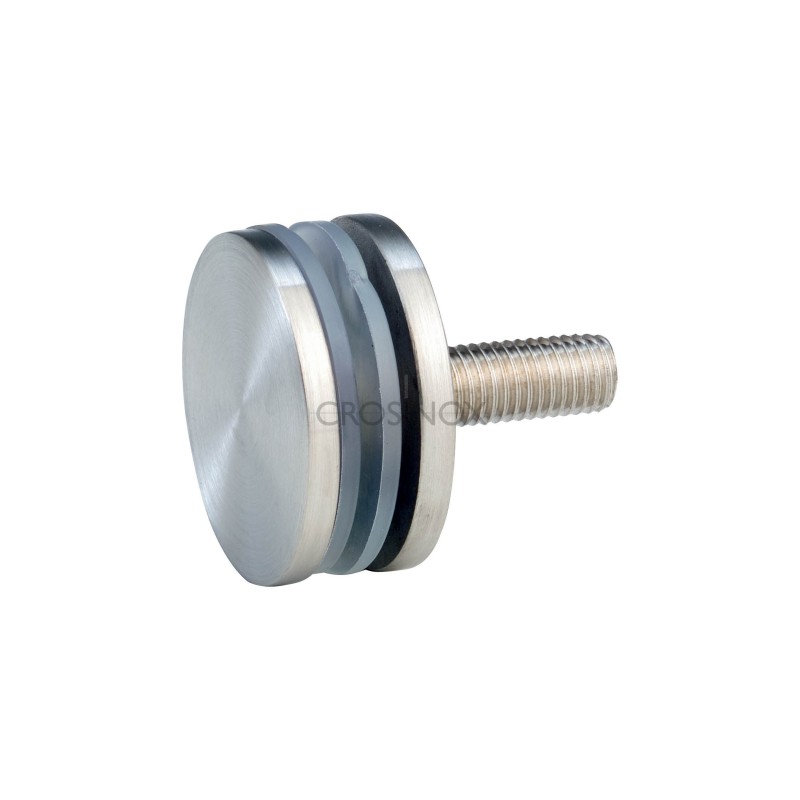

Point Holder

Point Holders:

• CN6500400 Point holder Ø 60 mm, connection straight glass -18 mm V4A, polished

• CN6500410 point holder Ø 60 mm, tube Ø 42.4 mm glass -18 mm V4A, polished

• CN6500420 Point holder Ø 60 mm, tube Ø 48.3 mm glass -18 mm V4A, polished

• CN6500430 Point holder Ø 60 mm, tube Ø 60.3 mm glass -18 mm V4A, polished

Technical Characteristics:

Product Code	CN6500400	CN6500410	CN6500420	CN6500430
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Type	point holder	point holder	point holder	point holder
Measurments	Ø 60 mm	Ø 60 mm	Ø 60 mm	Ø 60 mm
Glass Thickness	- 18 mm	- 18 mm	- 18 mm	- 18 mm
Pipe fitting	straight	Ø 42,4 mm	Ø 48,3 mm	Ø 60.3
