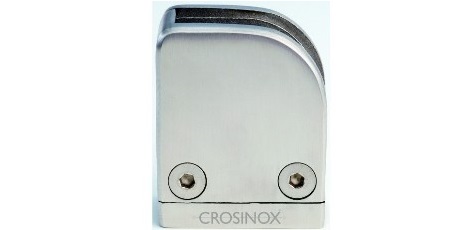

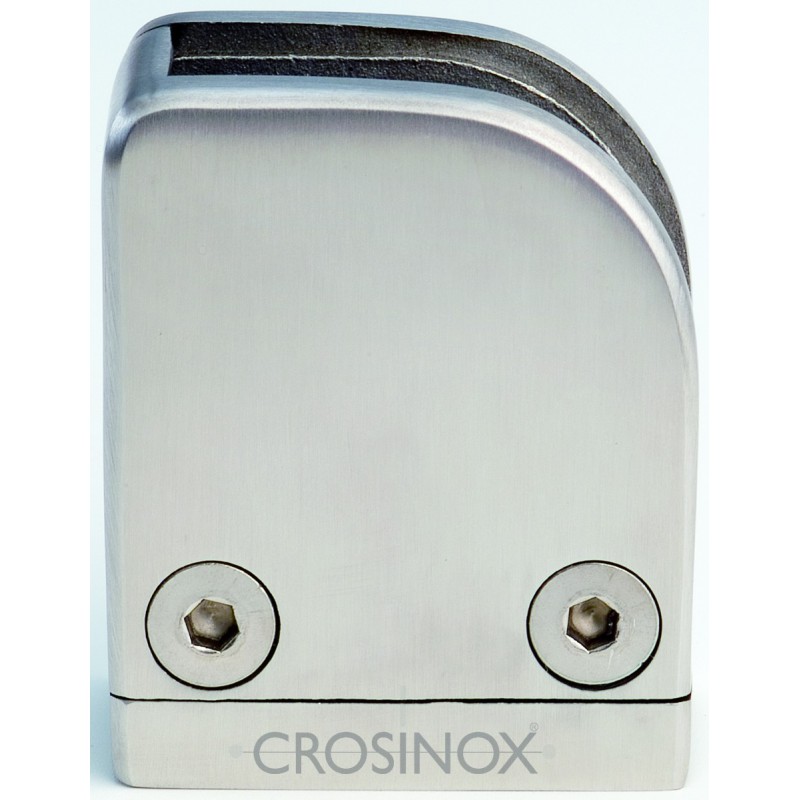

Corner Glass Clamp

Glass Clamps:

• CN6201424 Glass clamp corner, tube Ø 42,4 / left V4A, polished

• CN6202424 Glass clamp corner, pipe Ø 42,4 / right V4A, polished

• CN6203483 Glass clamp corner, pipe Ø 48,3 / left V4A, polished

• CN6204483 Glass clamp corner, pipe Ø 48.3 / right V4A, polished

• CN6205603 Glass clamp corner, pipe Ø 60.3 / left V4A, polished

• CN6206603 corner glass clamp, tube Ø 60.3 / right V4A, polished

• CN6207000 glass clamp corner, conn. straight / left V4A, polished

• CN6208000 glass clamp corner, conn. straight / right V4A, polished

  Rubber Inserts:

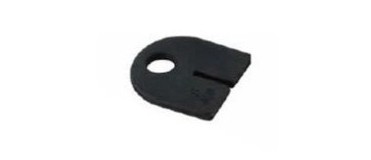

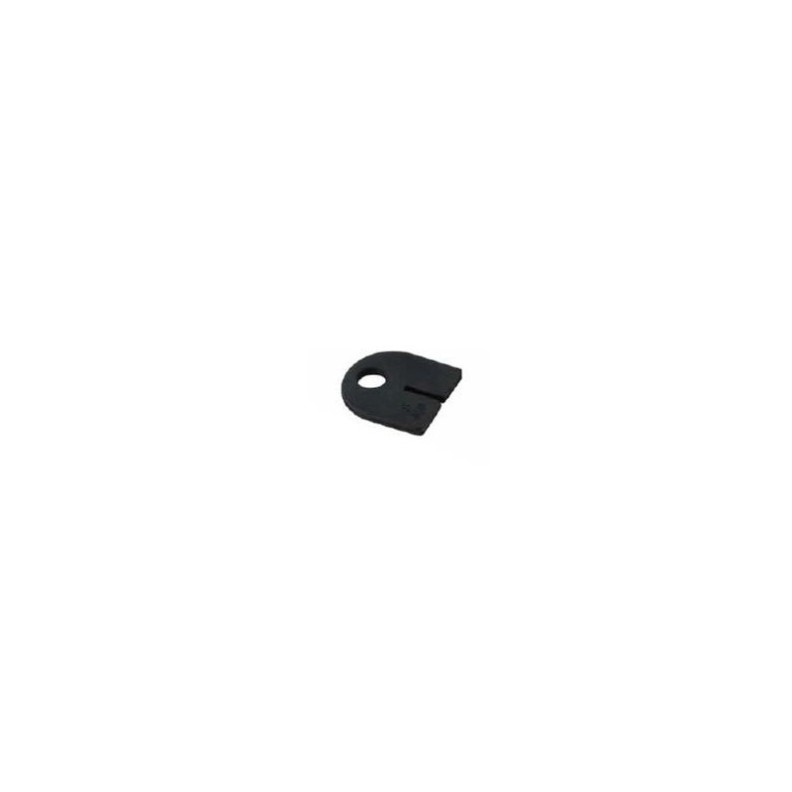

• CN6450220 Rubber insert, set glass 16,76 mm EPDM
• CN6450210 Rubber insert, set glass 13,52 mm EPDM

Technical Characteristics:

Product Code	CN6201424	CN6202424	CN6203483	CN6204483	CN6205603	CN6206603	CN6207000	CN6208000
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	Satin	Satin	Satin	Satin	Satin	Satin	Satin	Satin
Type	Corner	Corner	Corner	Corner	Corner	Corner	Corner	Corner
Measures	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm	60 x 53 mm
Pipe fitting	Ø 42.4 mm left	Ø 42.4 mm right	Ø 48.3 mm left	Ø 48.3mm right	Ø 60,3 mm left	Ø 60,3 mm right	straight / left	straight / right

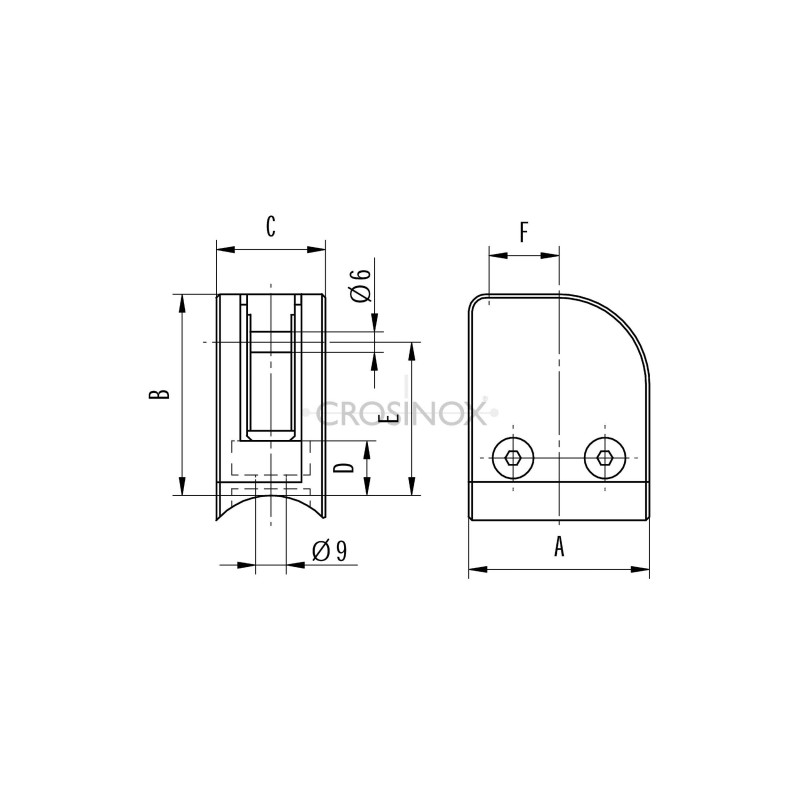

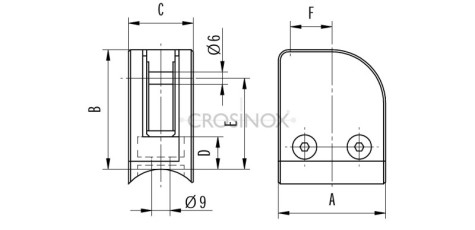

Details	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21	A=53; B=60; C=34; D=16; E=44; F=21
