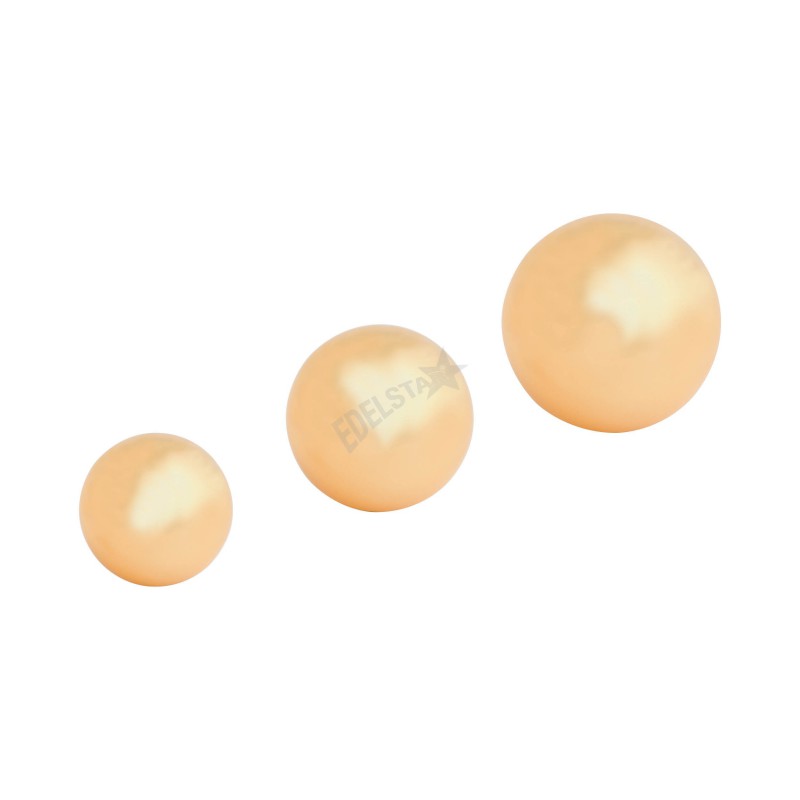

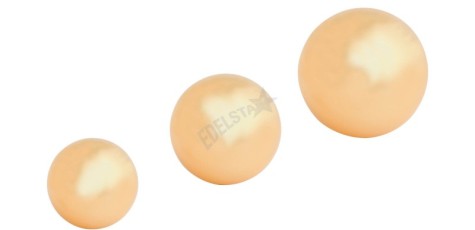

Spheroidal Terminal Ball

Balls:

• 490040 ball, Ø 40 mm, one. Threaded bush M6 hollow brass, polished

• 490050 ball, Ø 50 mm, one. Threaded bush M6 hollow brass, polished

• 490060 ball, Ø 60 mm, one. Threaded bush M8 hollow brass, polished

• 490080 ball, Ø 80 mm, one. Threaded bush M8 hollow brass, polished

• 490100 ball, Ø 100 mm, one. Threaded bush M10 hollow brass, polished

• 490120 ball, Ø 120 mm, one. Threaded bush M10 hollow brass, polished

• 490150 ball, Ø 150 mm, one. Threaded bush M10 hollow brass, polished

• 490200 ball, Ø 200 mm, one. Threaded bush M10 hollow brass, polished

Technical Characteristics:

Product Code	490040	490050	490060	490080
Material	Brass	Brass	Brass	Brass
Type	empty	empty	empty	empty
Surface	mirror polished	mirror polished	mirror polished	mirror polished
Dimensions	Ø 40 x 2,0 mm	Ø 50 x 2,0 mm	Ø 60 x 2,0 mm	Ø 80 x 2,0 mm
Details	A=M6; Ø=40	A=M6; Ø=50	A=M8; Ø=60	A=M8; Ø=80

















Product Code	490100	490120	490150	490200
Material	Brass	Brass	Brass	Brass
Type	empty	empty	empty	empty
Surface	mirror polished	mirror polished	mirror polished	mirror polished
Dimensions	Ø 100 x 2,0 mm	Ø 120 x 2,0 mm	Ø 150 x 2,0 mm	Ø 200 x 2,0 mm
Details	A=M10; Ø=100	A=M10; Ø=120	A=M10; Ø=150	A=M10; Ø=200
